Component Inspection





P0271 Cylinder 4 Injector Circuit High

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect injector connector.
3. Measure resistance between control terminal and power terminal of the injector connector. (Component side)
Specification

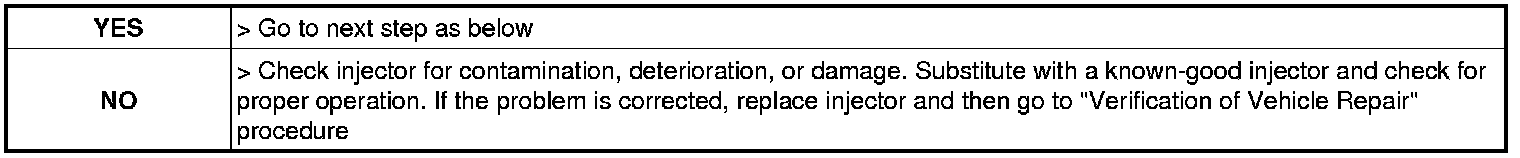

4. Is resistance within the specification?
