General Information

C2400 Motor Fault

Motor Not Running - General Information

Component Location





General Description

EPS uses an electric motor to provide directional control to the driver.
To confirm operating state of the motor is essential for controlling the EPS system as intended.

DTC Description

ESP CM measures motor velocity by using motor position sensor and motor output torque by using current sensor to confirm whether the motor operates normally or not. After measure then it compares measured values and calculated values. EPS CM sets this coed and turns on warning lamp if there is a difference between two values.

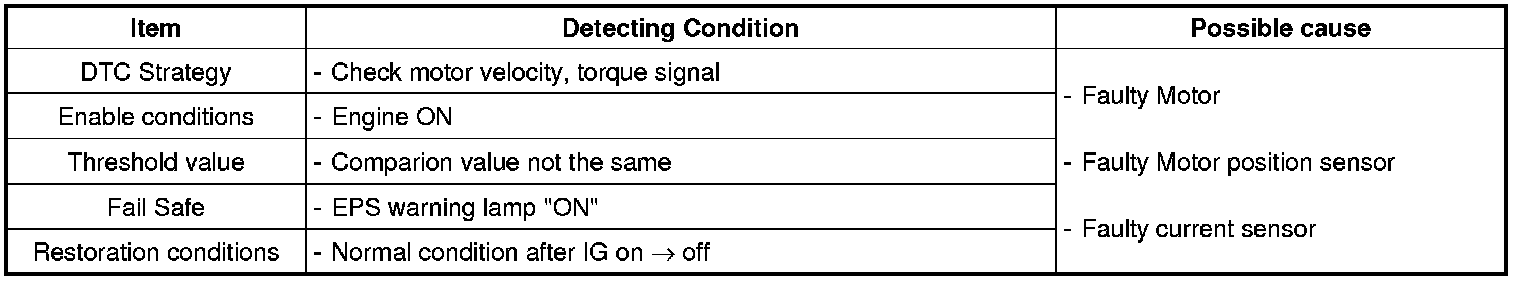

DTC Detecting Condition
