Component Inspection

C1260 Steering Angle Sensor Circuit-Signal

Inspection/Repair - Component Inspection

Component Inspection

Steering Angel Sensor Check
1. Ignition "ON" & Engine "ON".
2. Turn the steering wheel to the left or right.
3. Measure waveform between signal terminal of the steering angle sensor harness connector and chassis ground with oscilloscope.

Specification : Check if the voltage of signal waveform is normal.
(HIGH : 2.9±0.1 V ~ 4.4±0.1 V, LOW : 1.2±0.1 V ~ 2.1±0.1 V)
Check if normal signal waveform comes up while turning the steering wheel.

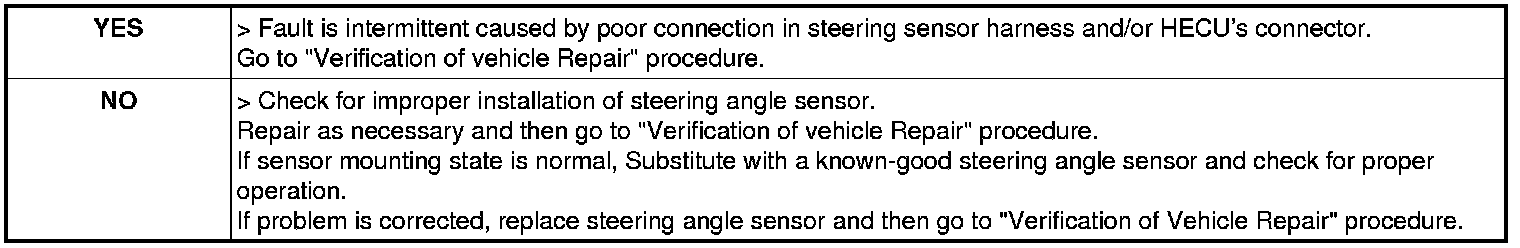

4. Is the measured waveform normal?
