Rear Seat Belt

Replacement

Seat Belt Relacement
[Sedan]
1. Remove the following items first.
A. Rear seat assembly.

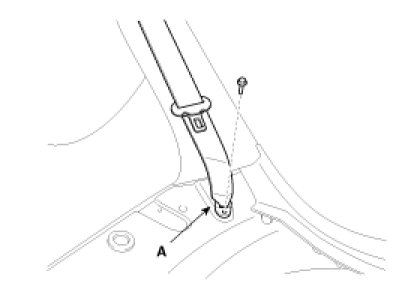

2. Remove the lower anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




3. Remove the rear pillar trim (A).




4. Remove the package tray trim.

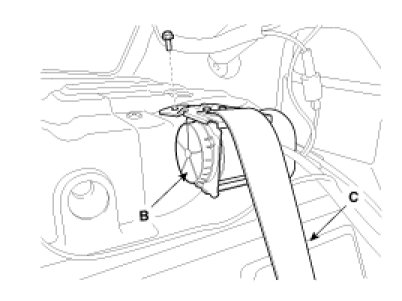

5. After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)




6. Installation is the reverse of removal.
[ 5 Door]

CAUTION:
- When installing the belt, make sure not to damaged the retractor.

1. Remove the following items first.
A. Rear seat assembly

B. Luggage tray

C. Rear door scuff trim

D. Rear wheelhousing trim

E. Covering shelf side trim

F. Rear transverse trim

G. Luggage side trim

2. After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




3. After loosening the retractor (B) mounting bolt, remove the rear seat belt (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)




4. Installation is the reverse of removal.
