Engine Controls - MIL ON/DTC P200A Stored In Memory
NUMBER: 112GROUP: Engine
DATE: January, 2012
MODEL: 2011/12 MY Forte/Forte Koup (TD) / 2011MY Sportage (SL)
SUBJECT:
VCM ACTUATOR REPLACEMENT AND ECM UPGRADE-TD/SL 2.0/2.4L MIL ON WITH DTC P200A
This bulletin provides information related to the VCM (Variable Charge Motion) actuator replacement and the ECM software upgrade of some 2011-2012MY Forte/Forte Koup (TD) 2.0/2.4L vehicles produced from August 19, 2010 to May 31, 2011 / June 1, 2011 to August 10, 2011, and some 2011MY Sportage (SL) 2.4L vehicles produced from June 10, 2010 to March 10, 2011 which may experience a MIL (Malfunction Indicator Lamp) illuminated with the ECM (Electronic Control Module) system-related DTC P200A. To correct this condition, the VCM actuator needs to be replaced and the ECM should be reprogrammed using the GDS download as described in this bulletin. For confirmation that the latest reflash has been done to a vehicle you are working on, verify ROM ID using the tables in this TSB.
- P200A: Intake Manifold Runner Performance (Bank1)
Service Procedure:

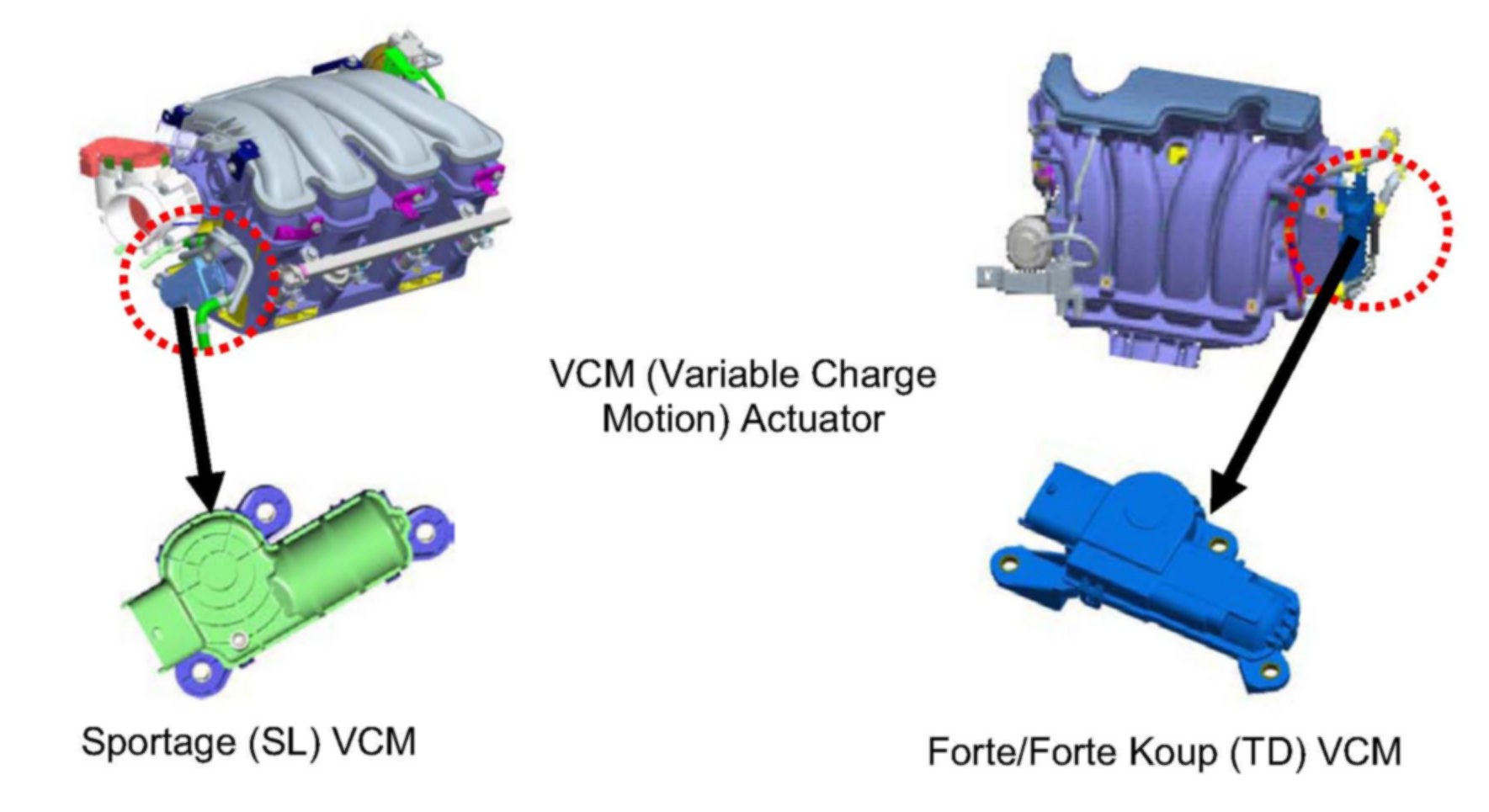

VCM Actuator Replacement:
1. Replace the VCM actuator with a new one according to the applicable Service Manual.
2. Conduct the "ECM UPGRADE" after replacing the VCM actuator.
Upgrade Procedure:
NOTICE:
^ A fully charged battery is necessary before ECM upgrade can take place. It is recommended that the Midtronics GR8-1299 system be used in ECM mode during charging. DO NOT connect any other battery charger to the vehicle during ECM upgrade.
^ All ECM upgrades must be done with the ignition key in the "On" position.
^ Be careful not to disconnect any cables connected to the vehicle or GDS during the ECM upgrade procedure.
^ DO NOT start the engine during ECM upgrade.
^ DO NOT turn the ignition key OFF or interrupt the power supply during ECM upgrade.
^ When the ECM upgrade is completed, turn the ignition OFF and wait 20 seconds before starting the engine.
^ ONLY use approved ECM upgrade software designated for the correct model, year.

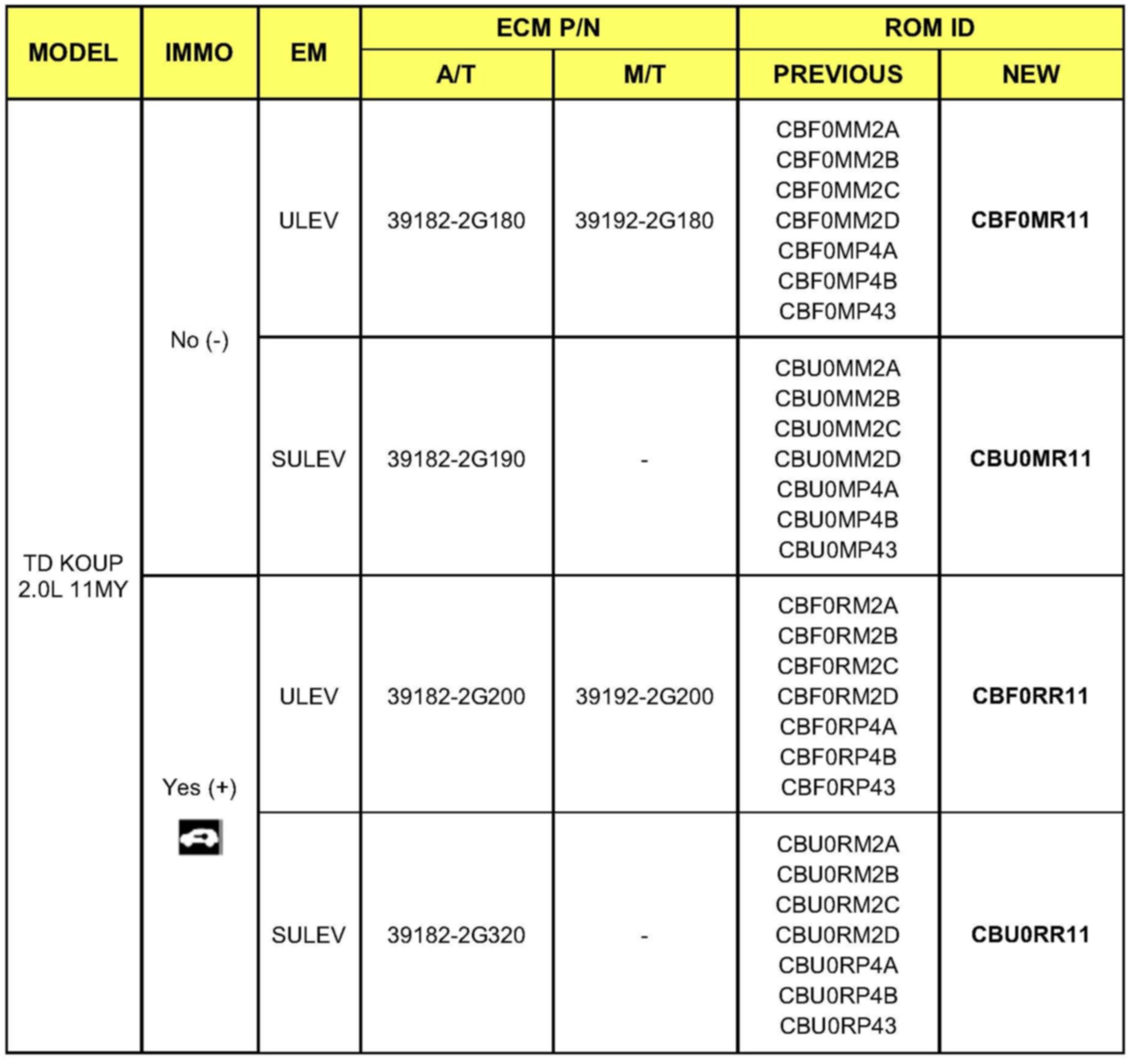

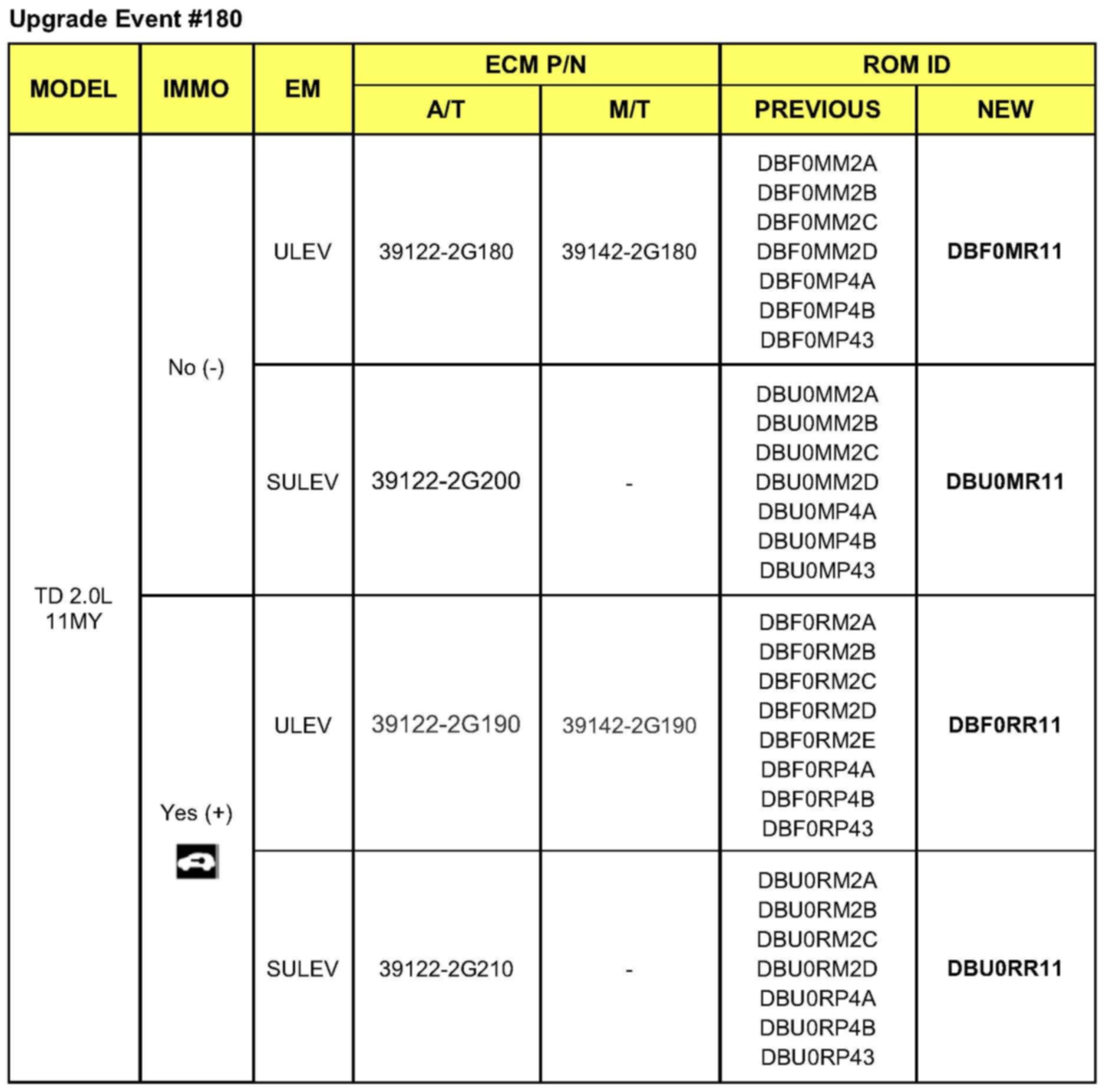

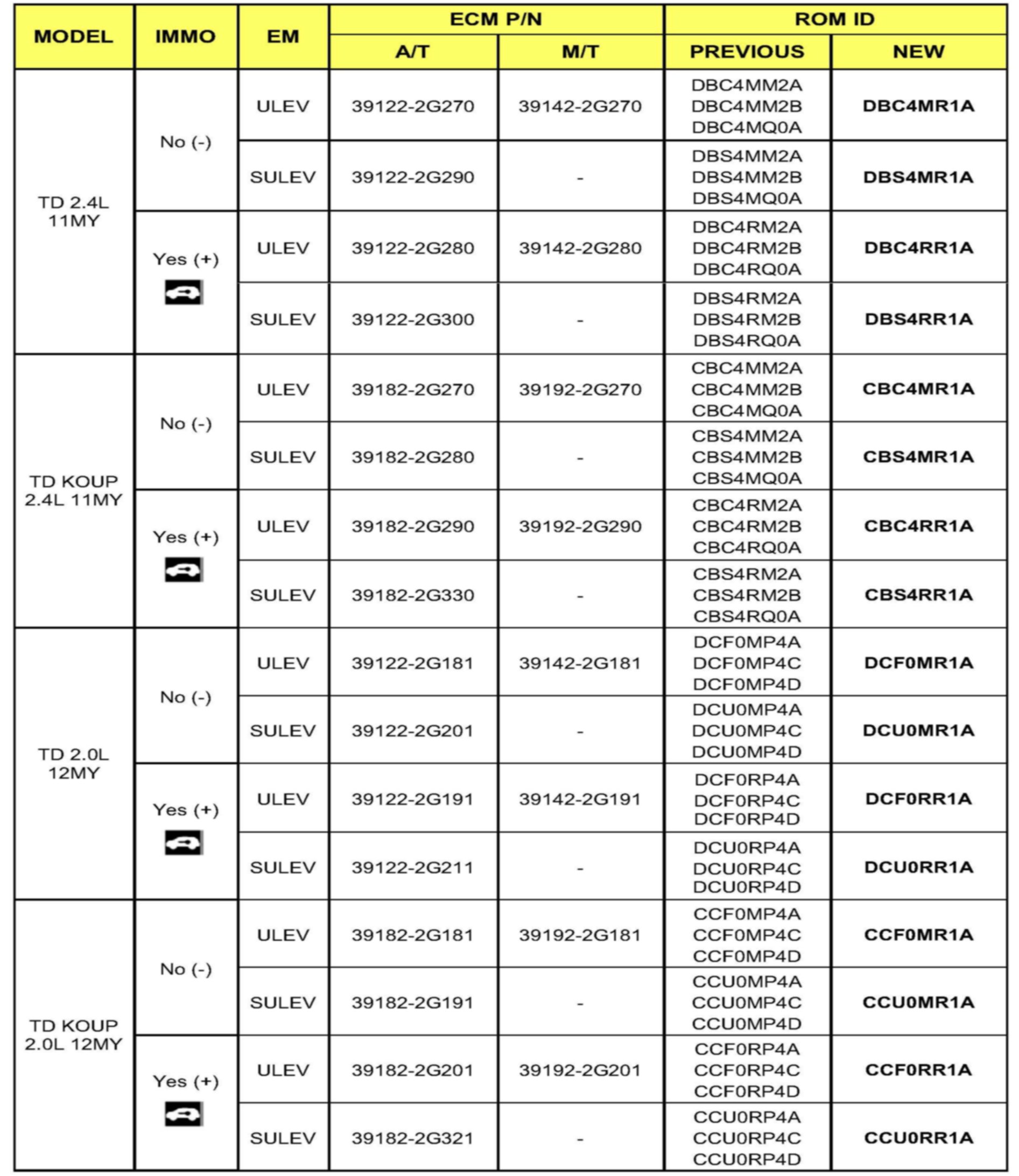

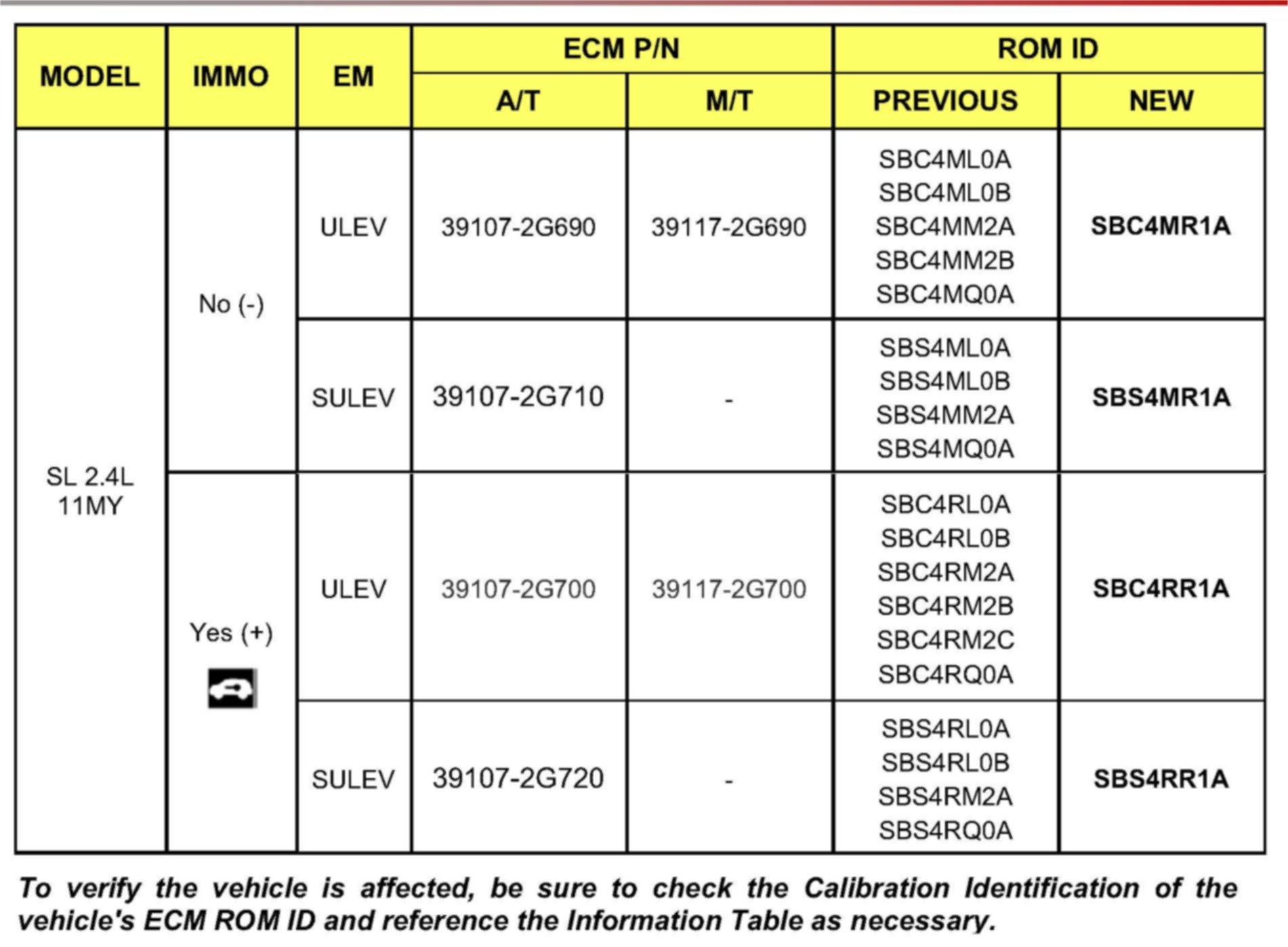

ROM ID INFORMATION TABLES
1. Connect the power supply cable to the GDS tool.
NOTICE:
If attempting to perform the ECM upgrade with the power supply cable disconnected from the GDS tool, be sure to check that the GDS tool is fully charged before ECM upgrade. If the GDS tool is not fully charged, failure to perform the ECM upgrade may occur. Therefore, it is strongly recommended that the power supply connector be connected to the GDS tool.
2. Connect the USB cable between the VCI and the GDS tool.
NOTICE:
When performing the ECM upgrade using the GDS tool, wireless communication between the VCI and GDS tool is not available. Therefore, be sure to connect the USB cable between the VCI and the GDS tool. Doe
3. Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.

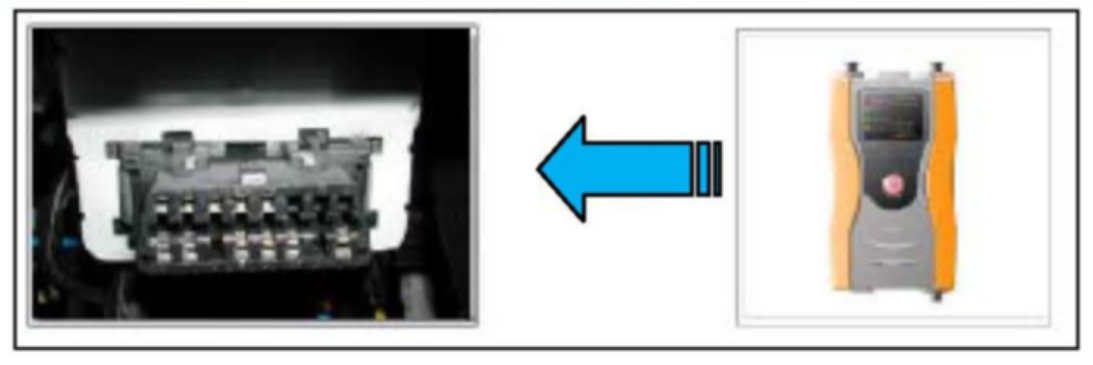

4. Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.

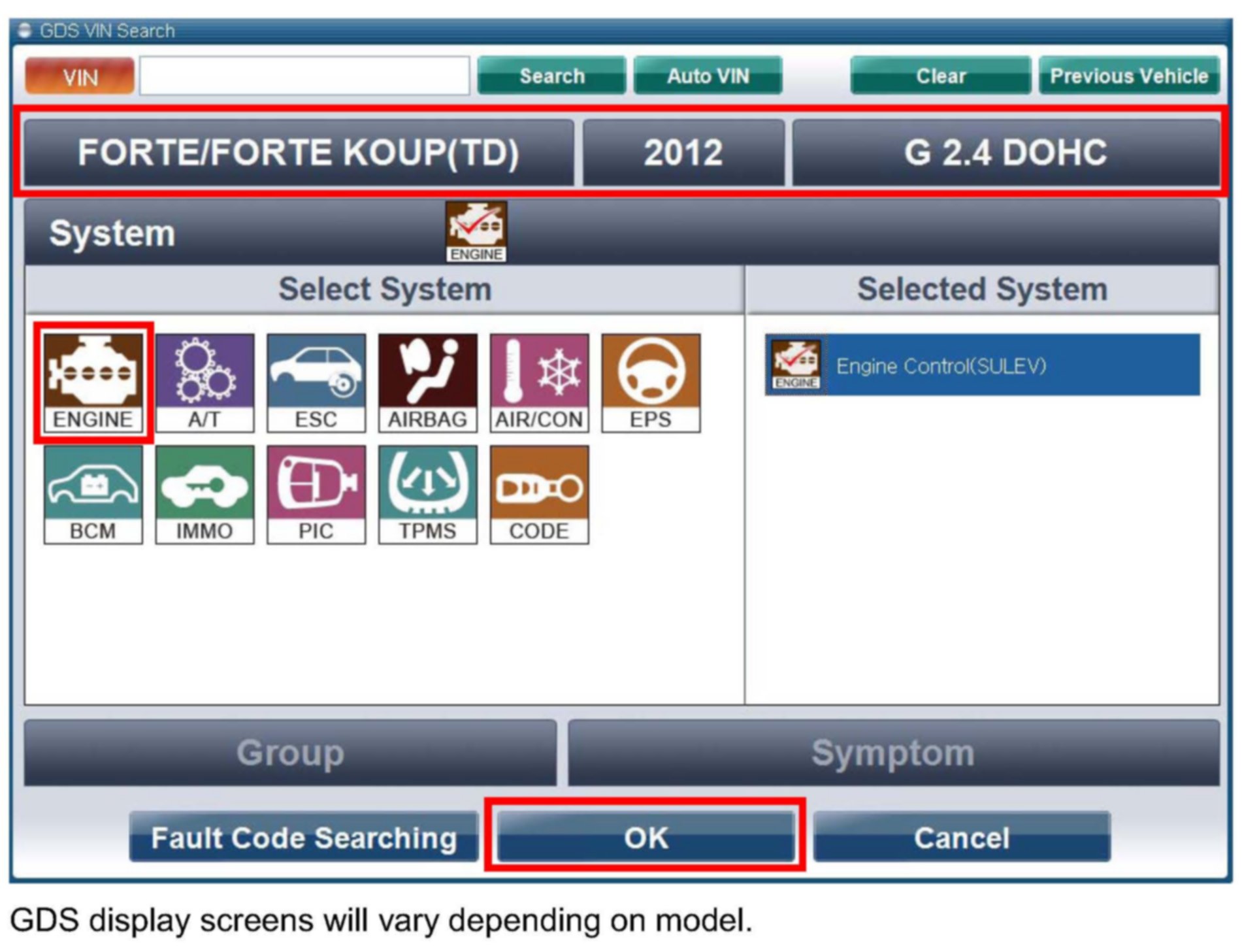

5. With the ignition key ON, turn ON the VCI and GDS tool. Access the GDS vehicle identification number (VIN) screen and configure the vehicle using the VIN Auto Detect function.

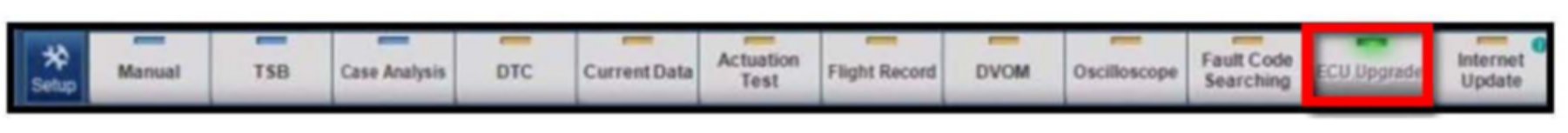

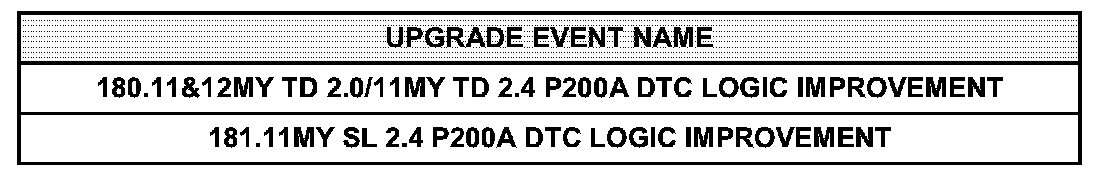

6. Once back at the GDS Main Screen, select ECU Upgrade from the bottom right-hand corner. Next select Auto Mode, and then Engine. Perform the ECM upgrade in accordance with normal GDS tool ECM upgrade procedures.
NOTICE:
Do NOT attempt to perform a Manual Mode upgrade unless Auto Mode fails. Always follow the instructions given on the GDS tool in either Auto or Manual mode. See table for Manual Mode passwords.

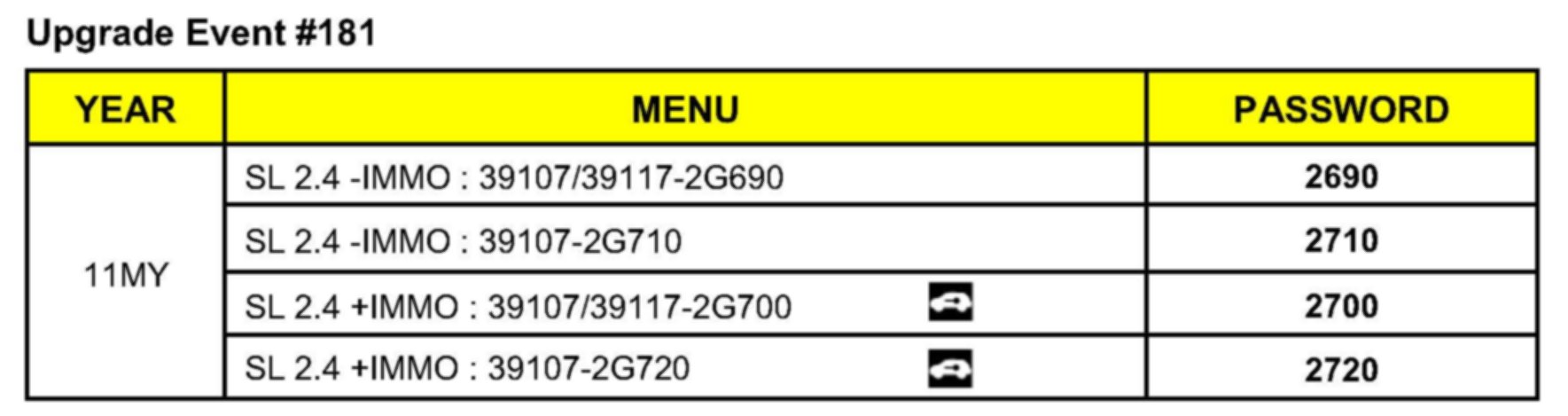

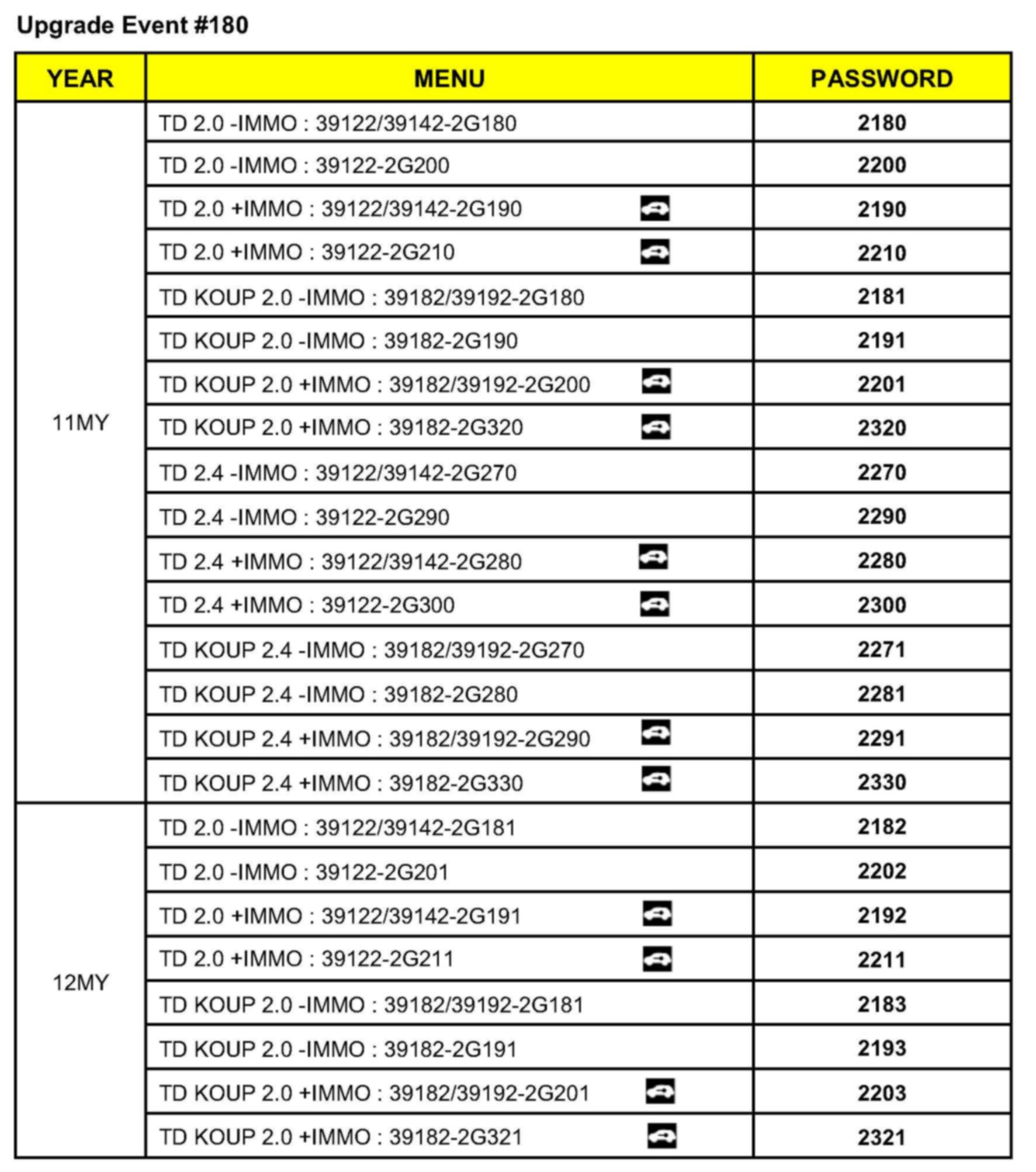

MANUAL MODE ECM UPGRADE PASSWORDS
7. When the GDS tool reports that the ECM upgrade has been successfully completed, click OK, turn OFF the ignition key, and wait at least 10 seconds before attempting to start the engine.
8. Check for Diagnostic Trouble Codes using the GDS and erase any DTCs stored such as EPS, ESC, and TPMS. Due to CAN BUS multiple DTCs maybe set during reprogramming.
9. Start the engine to confirm proper operation of the vehicle.

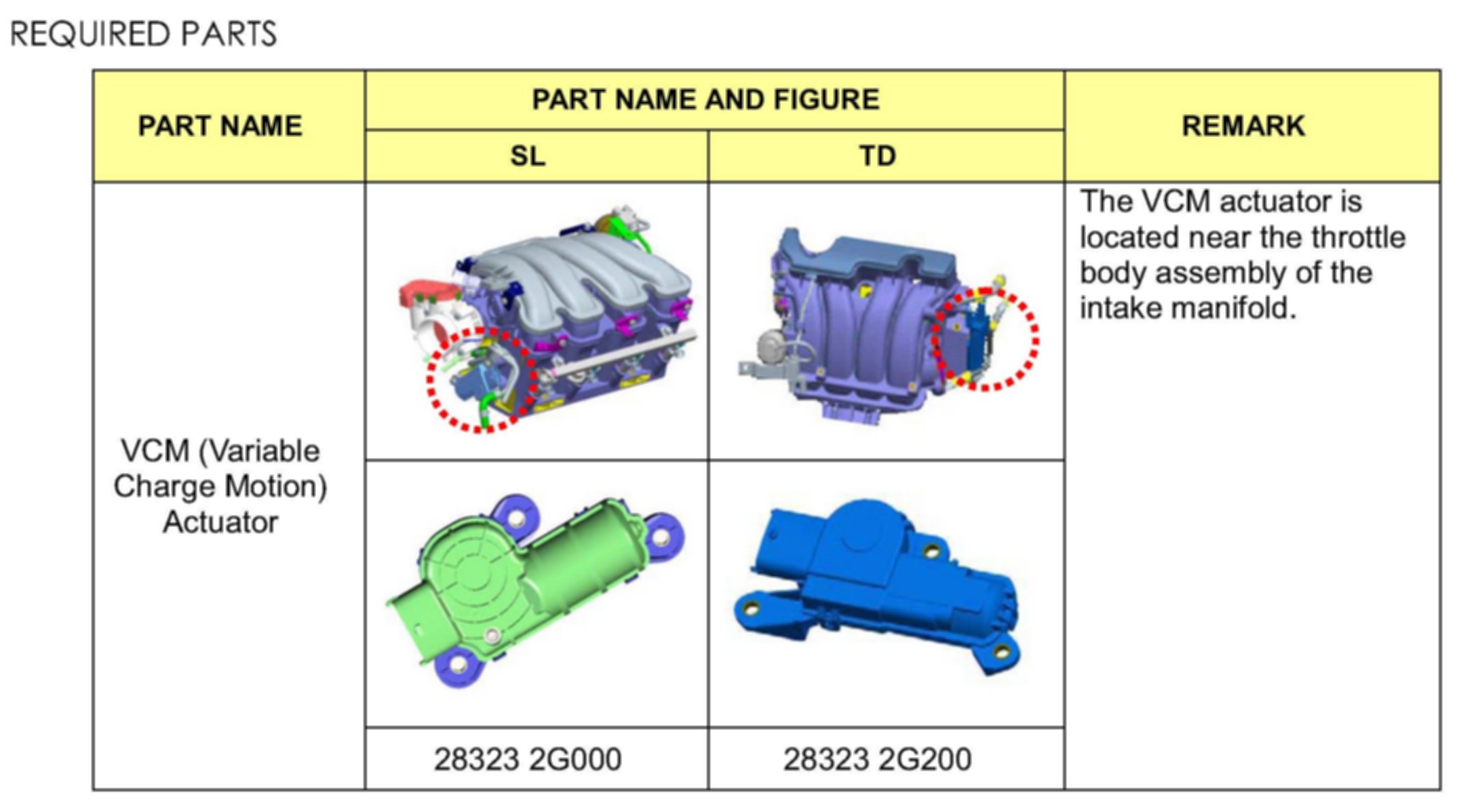

REQUIRED PARTS

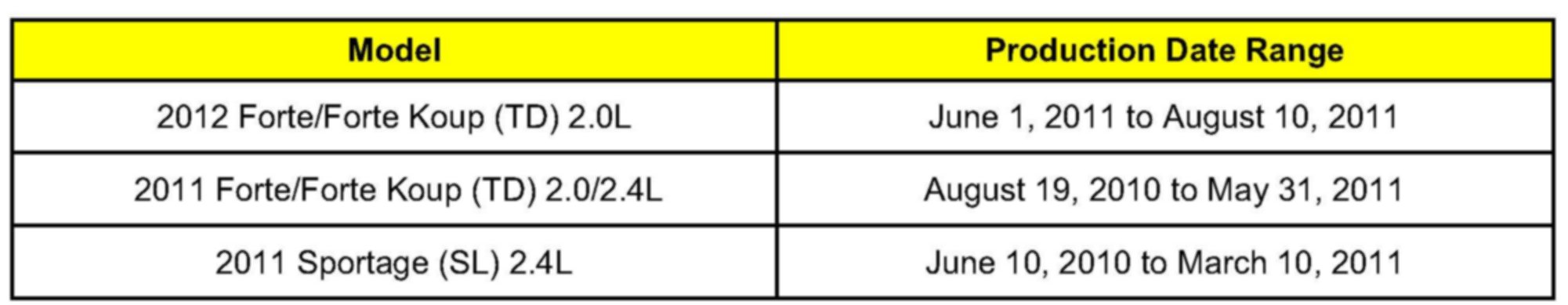

AFFECTED VEHICLE PRODUCTION RANGE

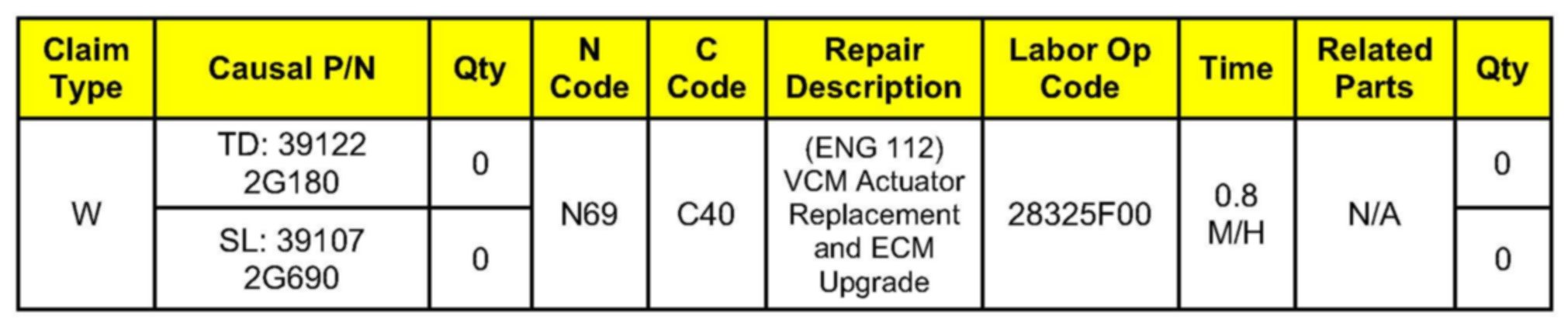

WARRANTY CLAIM INFORMATION
