Repair Procedures

Replacement

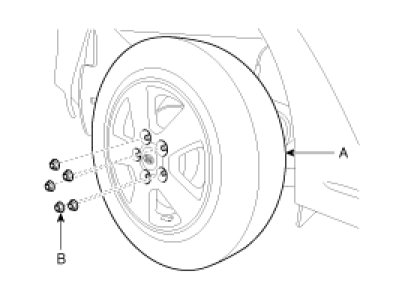

1. Loosen the wheel nuts(B) slightly.
Raise the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire(A) from rear hub.





CAUTION:
Be careful not to damage to the hub bolts (B) when removing the rear wheel and tire (A).

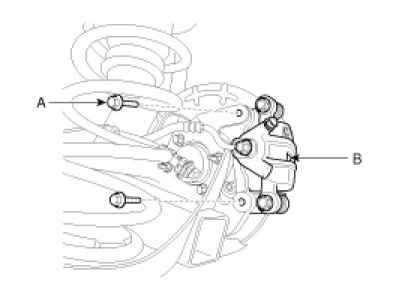

3. Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire as shown in the illustration.

Tightening torque:
49 - 59 N.m (5.0 - 6.0 Kgf.m, 36 - 43lb.ft)




4. Loosen the mount screw and then brake disc(A).

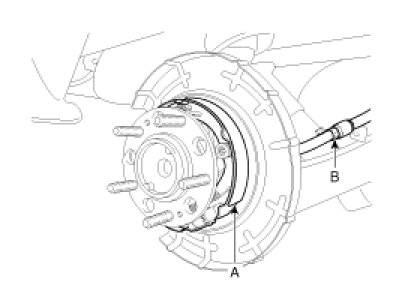

5. Remove the rear brake lining and parking brake cable(B). (refer to BR group-rear brake)

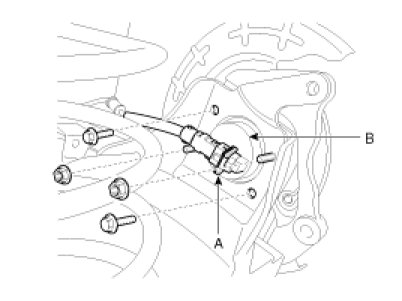

6. Disconnect the wheel speed sensor connector(A) and then remove the hub bearing(B).




7. Install in the reverse order of removal.

Inspection

1. Check the hub for cracks and the splines for wear.
2. Check the brake disc for scoring and damage.
3. Check the rear axle carrier for cracks.
4. Check the bearing for cracks or damage.
