Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crush pad.

3. Remove the cross member.

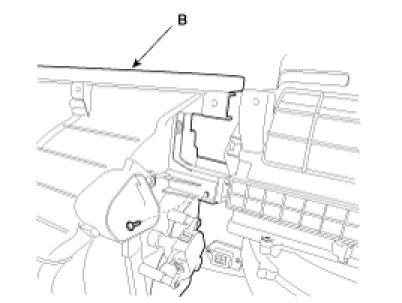

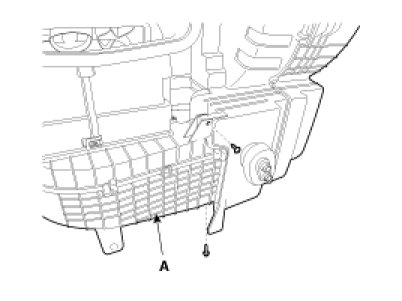

4. Remove the blower unit (A) from the heater unit (B) after loosening a mounting bolt and 3 screws.









NOTE:
Make sure that there is no air leaking out of the blower and duct joints.

5. Installation is the reverse order of removal.
