Repair Procedures

Replacements

Glass Replacement

NOTE:
- Put on glove to protect your hands.

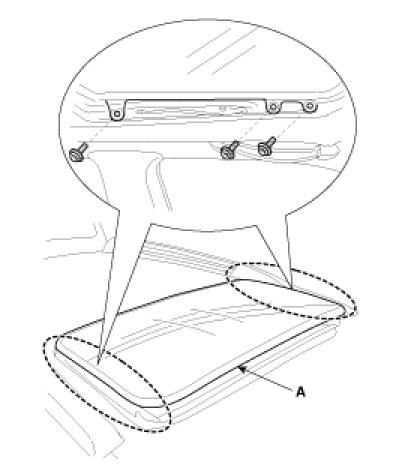

1. Remove the glass (A) by lifting it up, after removing bolts.

NOTE:
- Do not damage the roof panel.




2. Installation is the reverse of removal.

Motor Replacement
1. Remove the over head console.

NOTE:
- Confirm the position of guide whether it is closed or not when you remove the motor.

2. Remove the roof trim.

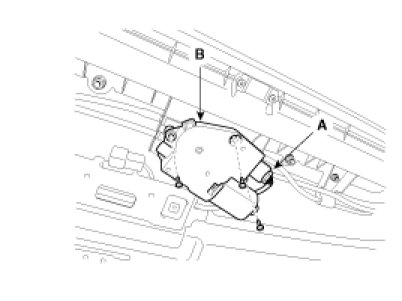

3. Disconnect the motor connector (A), remove the screws and then remove the motor (B).




4. Installation is the reverse of removal.

NOTE:
- Make sure to initialize the motor.

Deflector Replacement
1. Open the glass fully.
2. Disconnect the spring (B).
3. Disconnect the deflector link (A) from the frame, and then remove the deflector (C).




4. Installation is the reverse of removal.

Sunroof Assembly Replacement
1. Remove the following parts.
A. Door scuff trim.
B. Front pillar trim.
C. Center pillar trim.
D. Rear pillar trim.
E. Headlining.

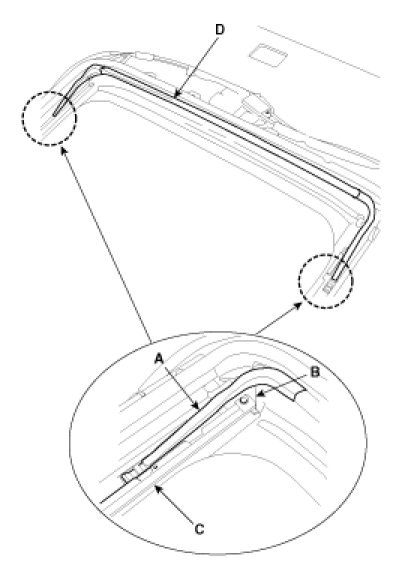

2. Disconnect the drain tube (A).
3. After loosening the mounting bolts and nuts, remove the sunroof assembly (B).

NOTE:
- Be careful not to scratch the interior trims and other parts.

4. Installation is the reverse of removal.





Sunshade And Drip Rail Replacement
1. Remove the sunroof assembly.

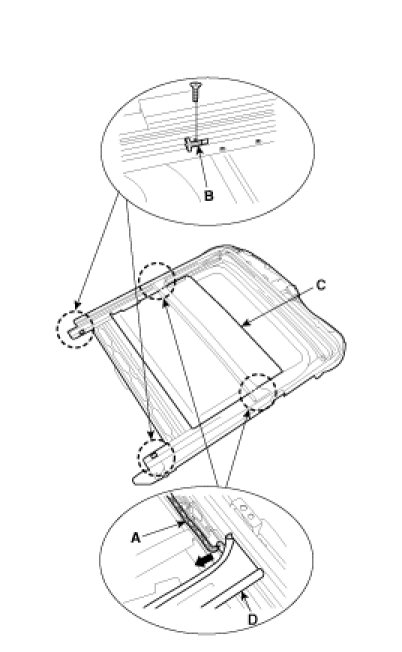

2. Remove the drip link (A) and sunshade stopper (B).
3. Remove the sunshade (C) and drip rail (D).




4. Installation is the reverse of removal.

Guide Assembly Replacement
1. Remove the sunroof assembly.

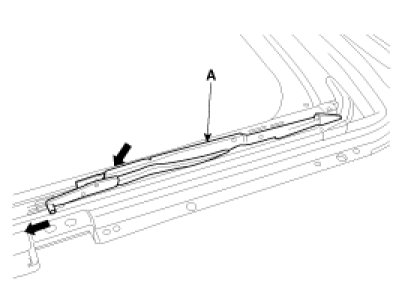

2. Lower and slide the guide assembly (A) to the rear to remove.

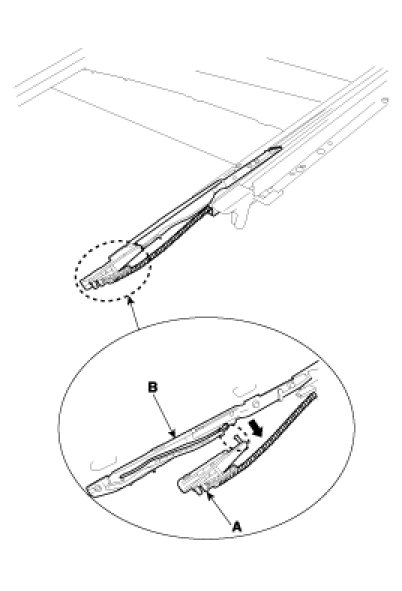

3. Remove the guide (A) and slide (B).




4. Installation is the reverse of removal.

NOTE:

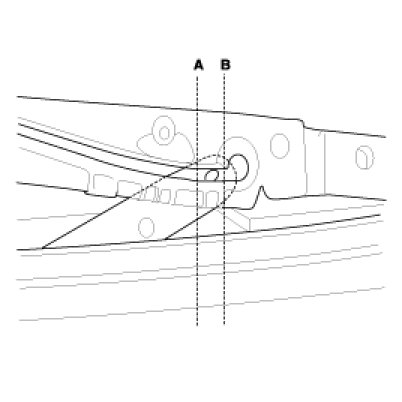

- Make sure to align the slide with the center of"A" and "B"
- Make sure to initialize the motor.





Adjustment

How To Initialize
1. Check that the glass has been installed.
A. Finished height adjustment.
2. Push and hold the up switch.

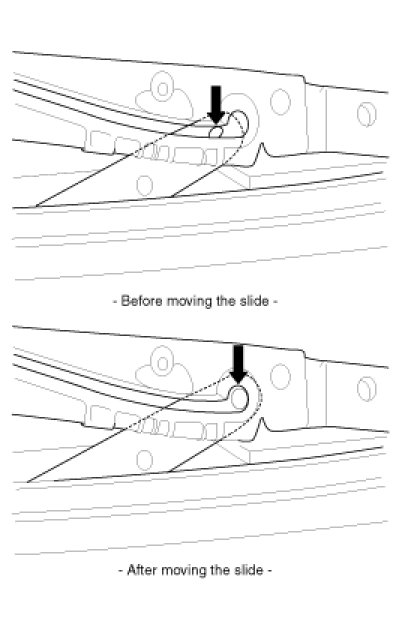

A. The slide moved 5mm forward after 15 seconds.




3. After moving the slide 5mm forward, turn OFF the switch and push the UP switch (Keeping on pushing the switch with continuous operation)
A. If the motor initialization is successful, the sunroof should fully side open and close once.
4. When the sunroof is closed completely, turn OFF the UP switch initialize the motor completely.

When To Initialize The Motor
1. First operation the vehicle after manufacture it.
2. Initial value is erased or damaged because of short power electric discharge during operation
3. After using the manual handle.

Operating The Sunroof Emergency Handle
1. Use the sunroof emergency handle to close or open the sunroof manually if the sunroof cannot be closed electronically due to motor or controller electrical malfunction.
2. Operating method
A. Remove the overhead console

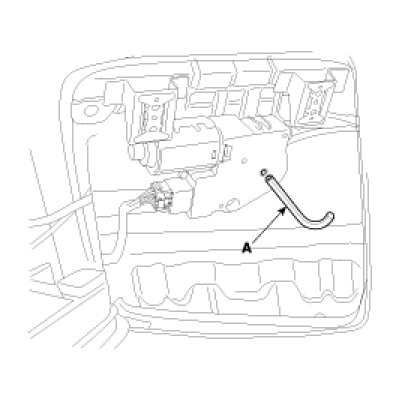

B. Push the emergency handle up into the hexagonal drive (A) of the sunroof motor. You must push hard enough to disengage the motor clutch; otherwise the emergency handle will slip due to incomplete fit in the motor.
C. Carefully turn the emergency handle clockwise to close the sunroof.
D. After closing the sunroof, wiggle the handle back and forth as you remove the tool from the motor, to ensure the motor clutch reengages.
E. A 5mm hex socket may be used in place of the emergency handle, with a" Speeder" type handle.

CAUTION:
- Do not use power tools to operate the sunroof.
- Damage to the components may occur.
