Repair Procedures

Replacement

Door Scuff Trim Replacement [Sedan]

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the door scuff trim (A).

[Front]





[Rear]




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Door Scuff Trim Replacement [ 5 Door]

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the front door scuff trim (A).

[Front]




2. Remove the rear seat assembly.

3. After loosening the mounting screws, then remove rear door scuff trim (A).

[Rear]




4. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Front Pillar Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the cap (B) and then loosening the mounting screw, removing the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Center Pillar Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim and rear door scuff trim.
2. To remove the seat belt anchor pretensioner (A), And then remove the seat belt after pushing the lock pin (B).




3. Using a screwdriver or remover, remove the center pillar lower trim (A).




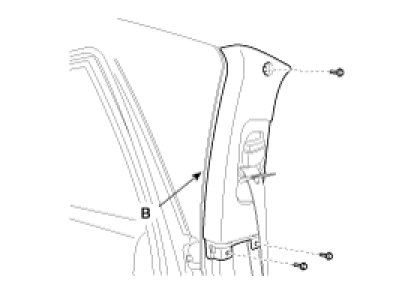

4. After loosening the mounting bolt, then remove the center pillar upper trim (A).




5. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Rear Pillar Trim Replacement [Sedan]

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat.

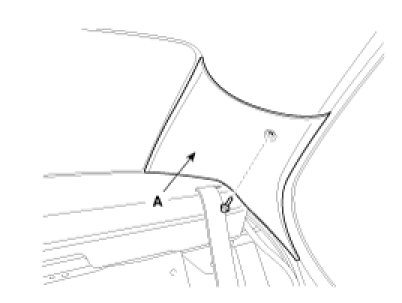

2. After loosening the mounting bolt, then remove the rear pillar trim (A).




3. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Rear Pillar Trim Replacement [ 5 Door]

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat.

2. Remove the front door scuff trim and rear door scuff trim.
3. Remove the clip and then removing the rear wheelhousing trim (A).




4. After loosening the mounting bolts, then remove the covering shelf side trim (A).




5. After loosening the mounting bolts, then remove the rear pillar trim (A).




6. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Package Tray Trim Replacement [Sedan]

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat.

2. After loosening the mounting bolt, then remove the rear pillar trim (A).




3. Remove the clips and then removing the package tray trim (A).




4. Disconnect the connector (A).




5. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
- Make sure the connector is connected properly.

Luggage Side Trim Replacement [ 5 Door]

CAUTION:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

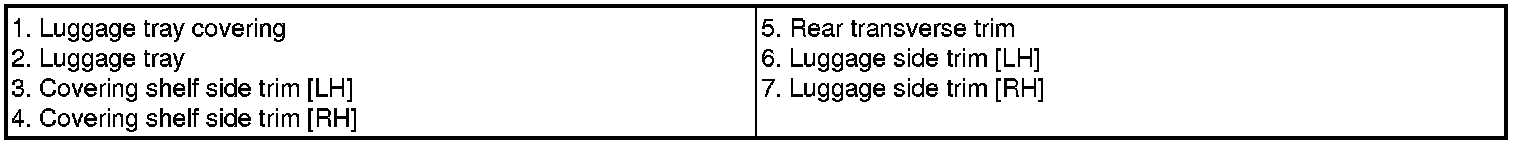

1. Remove the rear seat.

2. Remove the luggage tray covering.
3. Remove the luggage tray.
4. Remove the rear door scuff trim.
5. Remove the rear wheelhousing trim.
6. Remove the covering shelf side trim.
7. Remove the rear transverse trim.
8. After loosening the mounting screws, then remove the luggage side trim.
9. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
