Cellular Phone Microphone: Description and Operation
Function
General Feature
- This system supports Bluetooth, a wireless system that allows you to make or receive calls without taking your hands from the steering wheel and without using cables to connect the phone and system.
- The phone must be paired to the system before using the hands-free feature.
Only one linked cellular phone can be used with the system at a time. The system is available in English, US Spanish, or Canadian French languages.
CAUTION:
If the vehicle is moving do not use a cellular phone or connect the Bluetooth phone.
NOTE:
Some Bluetooth devices do not offer a perfect compatibility with this system.
Voice Recognition Activation
- The voice recognition engine contained in the Bluetooth System can be activated in the following conditions:
- Button Activation
The voice recognition system will be active when the speaker button is pressed and after the sound of a Beep.
- Active Listening
The voice recognition system will be active for a period of time when the Voice Recognition system has asked for a customer response.
- The system can recognize single digits from zero to nine while number greater than ten will not be recognized.
- If the command is not recognized, the system will announce "Pardon" or No input voice signal from microphone. (No response)
- The system shall cancel voice recognition mode in following cases : When pressing the speaker button and saying cancel following the beep. When not making a call and pressing the handset button. When voice recognition has failed 3 consecutive times.
- At any time if you say "help", the system will announce what commands are available.

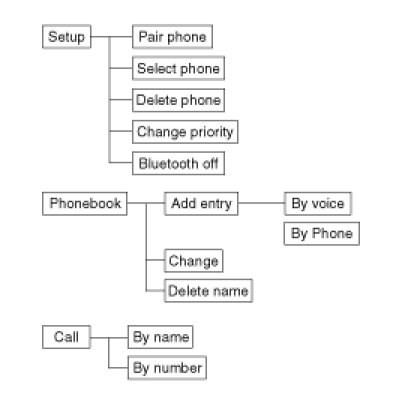

Menu tree
Phone Setup
Pairing phone
To use the hands-free system, you need to register your phone in the system. Up to 5 phones can be registered in the system.
1. Press the speaker button.
2. Say "Set Up".
3. Say "Pair Phone".
4. Say "Yes".
5. Say the name of the contact.
6. Say "Yes".
7. The Pairing procedure of the cellular phone varies according to each cellular phone.
NOTE:
The system may not function in the following cases:
If 5 phones have already been registered.If the system cannot communicate with the phone.
To connect phone
The registered phones can be selected. When the system connects to Bluetooth, the phone previously used is automatically selected. Select a different phone if necessary. Only the selected phone can be used with the hands-free system.
1. Press the speaker button.
2. Say "Set Up".
3. Say "Select Phone".
4. Say the name of the contact or the number of the contact.
5. Say "Yes".
NOTE:
The system may not function in the following cases:
If the phone is not found.
If the system does not recognize the voice command.
Deleting phone
The registered phones can be deleted.
1. Press the speaker button.
2. Say "Set Up".
3. Say "Delete Phone".
4. Say the name of the contact, the number of the contact or "Delete all phone".
5. Say "Yes".
Receiving a phone call
When receiving a phone call, a ring tone is audible and the system changes into telephone mode.
When receiving a phone call, the phone number and the message "Incoming" will be displayed.
- Do either one of the following:
Press the send switch to take the call. Press the end switch to refuse the call.
- To adjust the ring volume, push "+" or "-" on the steering volume controls.
Volume adjustment cannot be made using the audio system.
- To transfer a call to the phone:
The received call can be transferred from the hands-free system to the cellular phone that is connected to Bluetooth.
For details, please refer to you user's manual for the cellular phone or go to the Key matrix in this manual (next page).
Talking on the phone
When talking on the phone, the display will differ depending on whether or not the vehicle is in motion.
Number and "active call" is displayed.
When the call is finished, press the end switch.
NOTE:
In the following situations, your voice may not reach the other party:
1. Talk alternately with the other party on the phone. If you talk at the some time, the voice may not reach each other parties. (This is not a malfunction.)(It is not a malfunction.)
2. Keep the volume of receiving voice to a low level. Otherwise, high volumes may result in an echo. When you talk on the phone, speak clearly towards the microphone.
3. When driving on a rough road.
4. When driving at high speeds.
5. When the window is open.
6. When the air conditioning vents are facing the microphone.
7. When the sound of the air conditioning fan is loud.

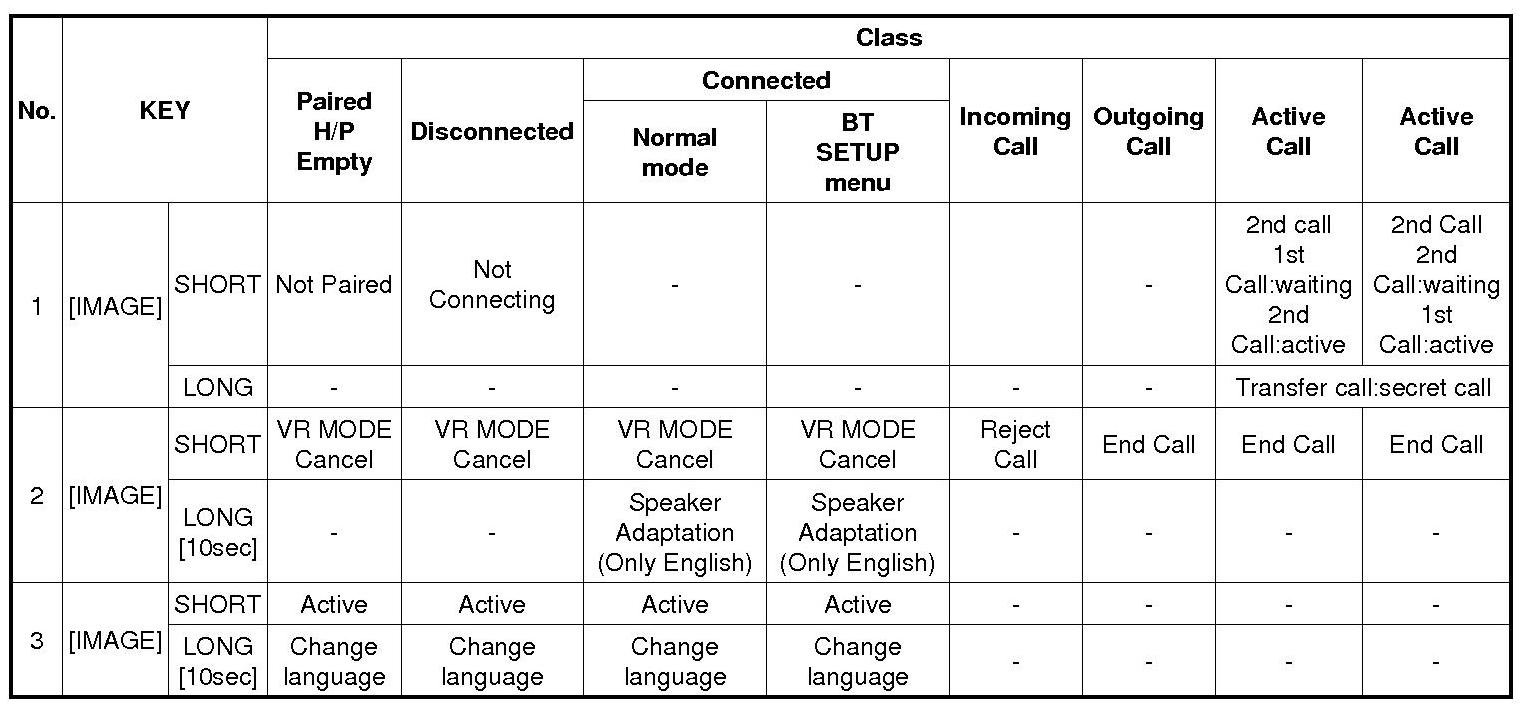

Key matrix
