W/Harness Inspection

P2610 ECM/PCM Internal Engine Off Timer Performance

Inspection/Repair - W/Harness Inspection

Back Up Voltage Inspection

1. Ignition "OFF"
2. Disconnect PCM connector.
3. Ignition "ON"
4. Measure voltage between terminal 6 of the PCM harness connector and chassis ground.

Specification : Remain stable at battery voltage

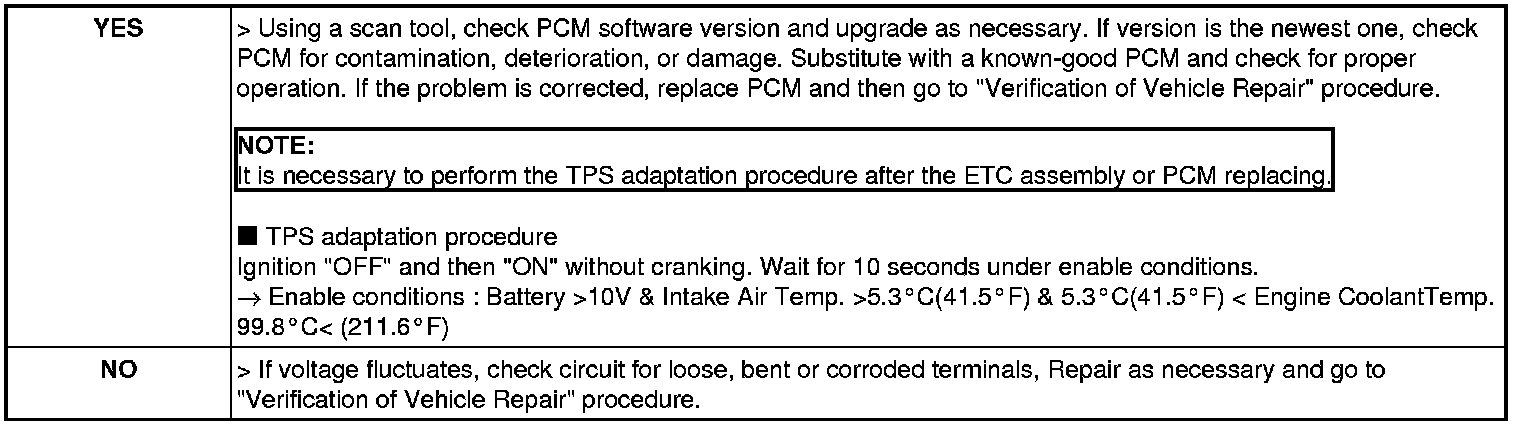

5. Are circuits remaining stable at battery voltage?
