P0758 Shift Control Solenoid Valve \'B\' Electrical (2-6/B)

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Select "Current Data" mode and monitor "Shift Control Solenoid Valve (26/B-VFS)" parameter current value.

Specification : See below data

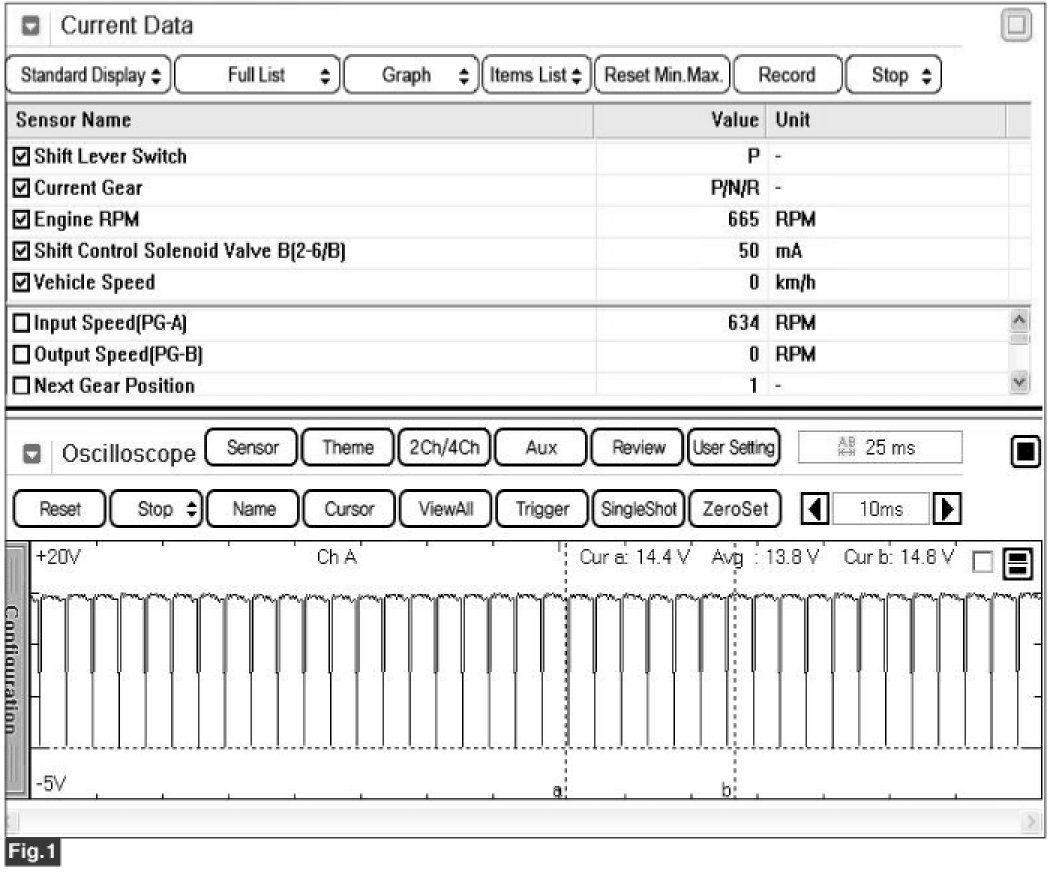

Fig 1) "P, N" range

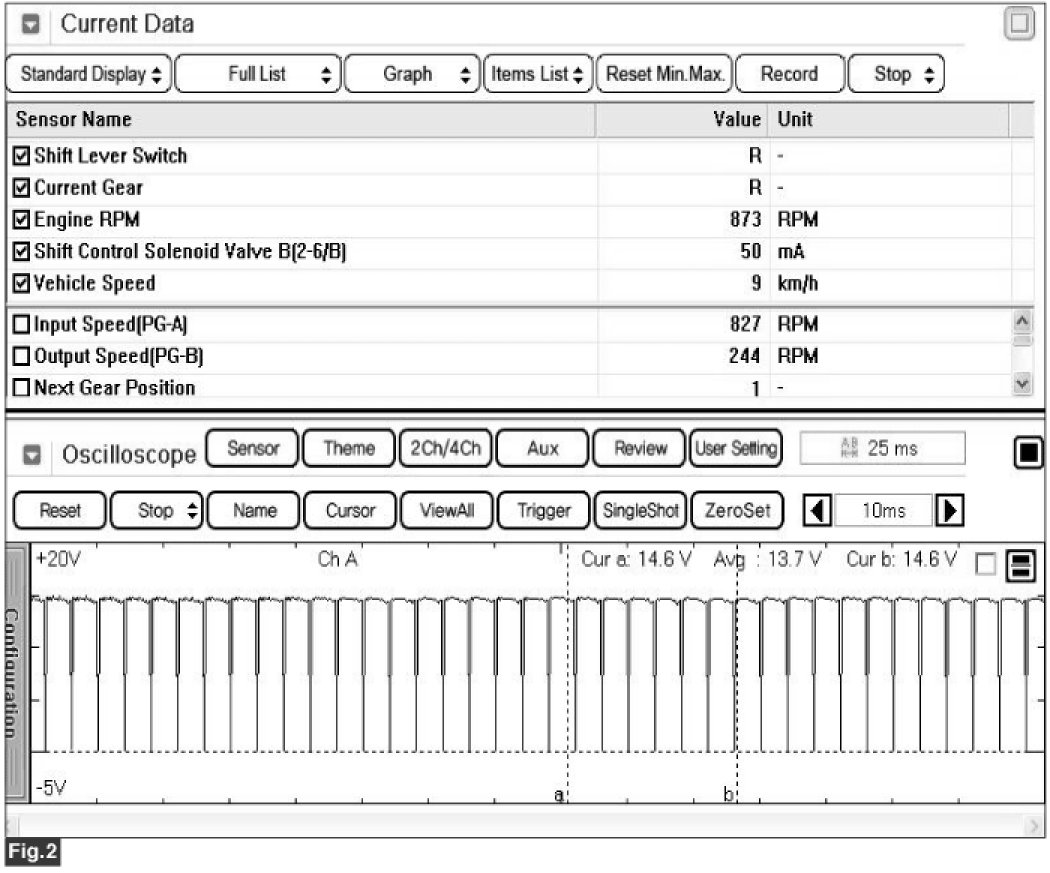

Fig 2) "R" range

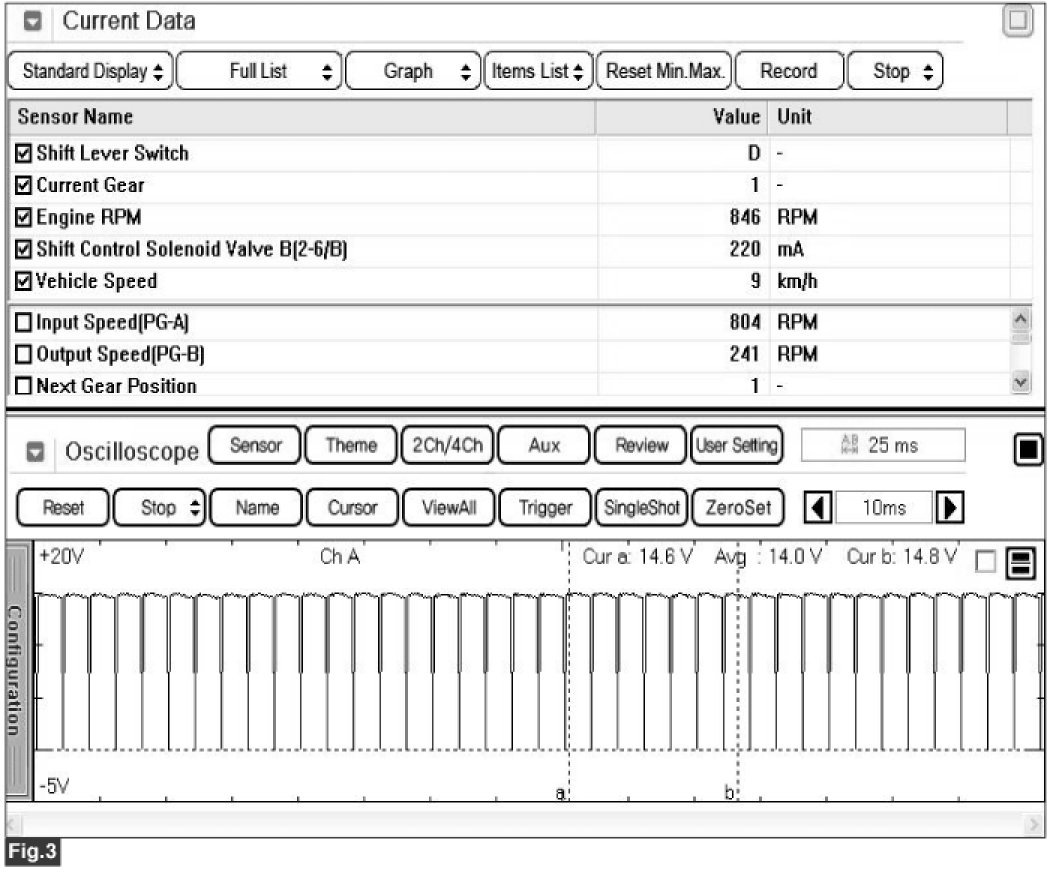

Fig 3) "D" range 1st gear

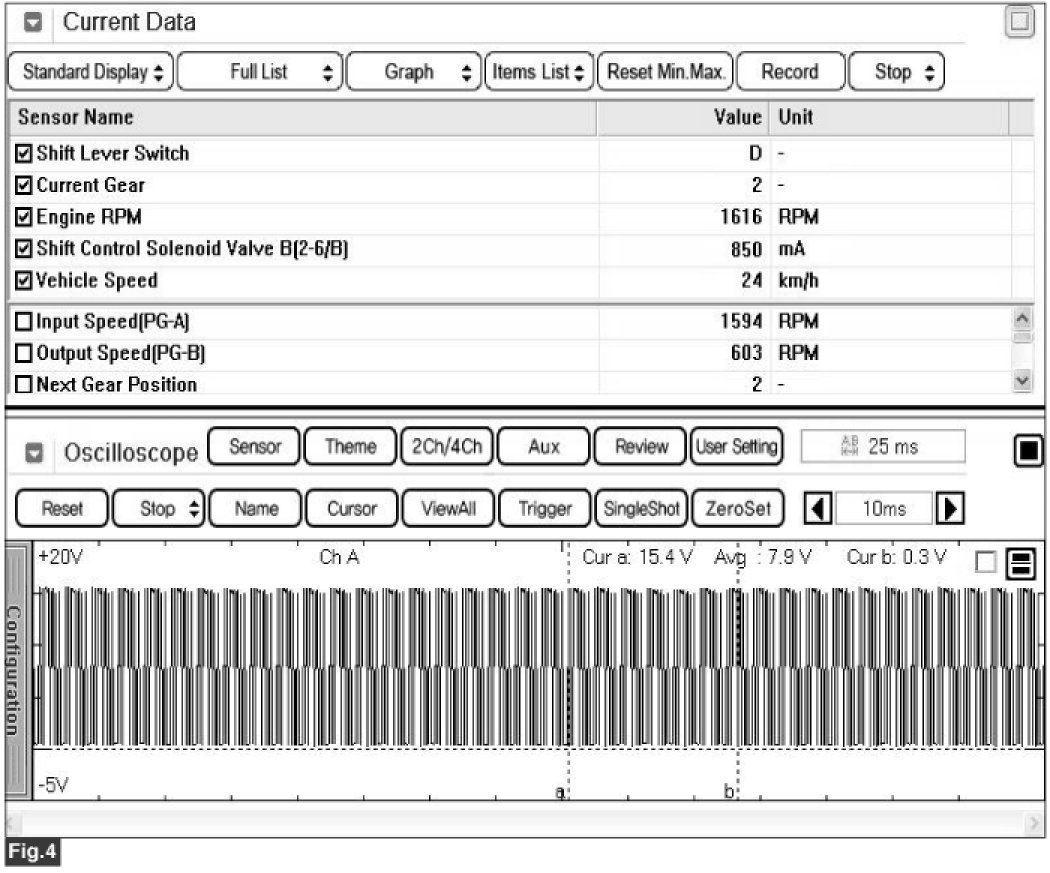

Fig 4) "D" range 2nd gear

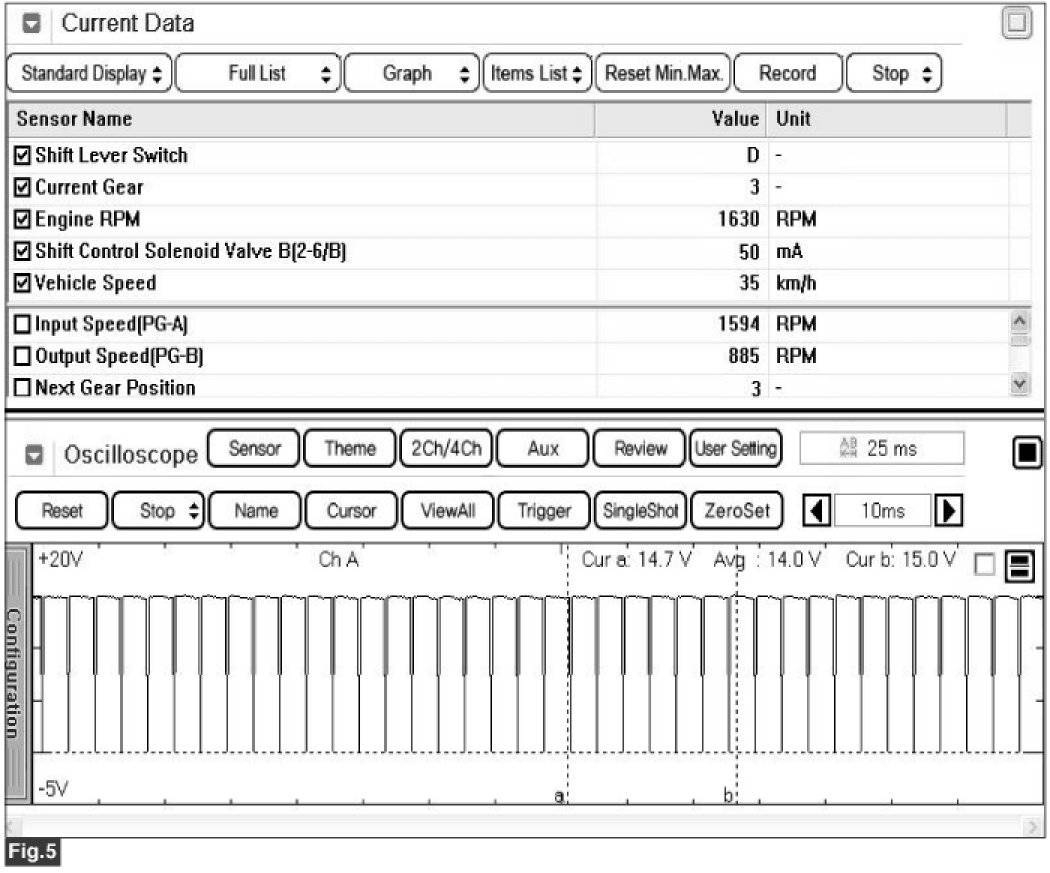

Fig 5) "D" range 3rd gear
Fig 6) "D" range 4th gear

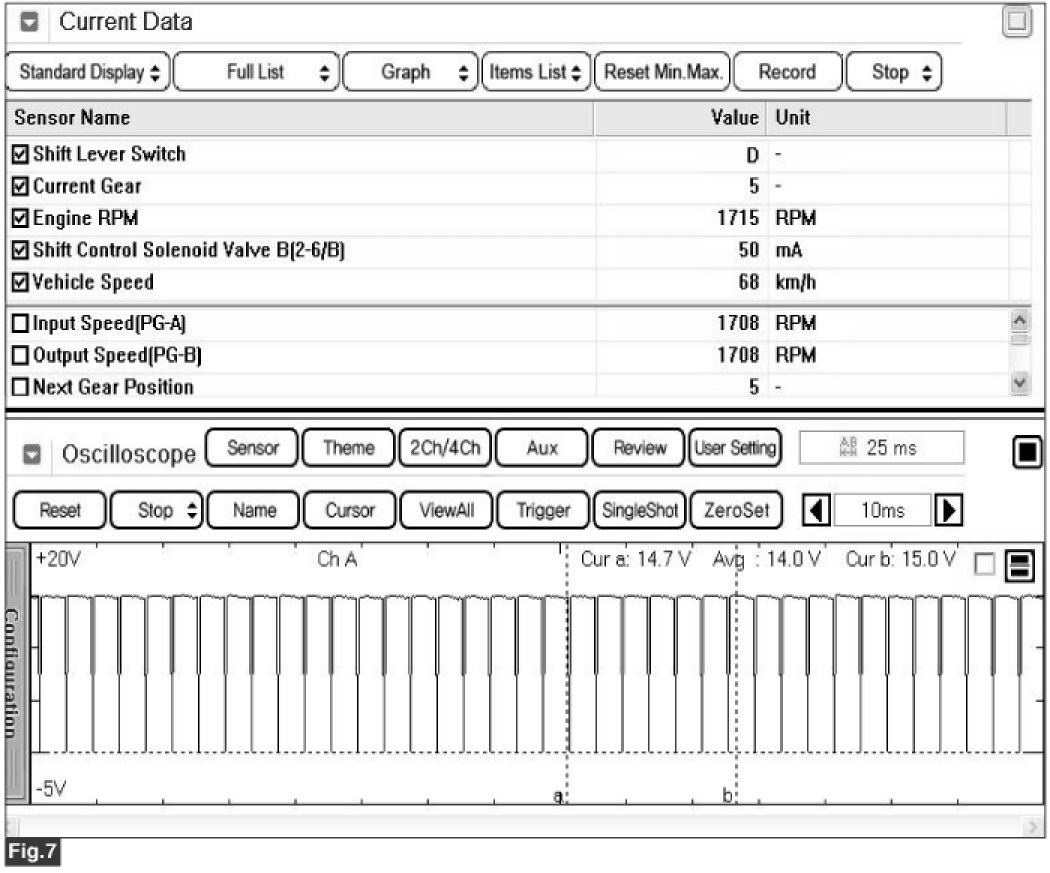

Fig 7) "D" range 5th gear

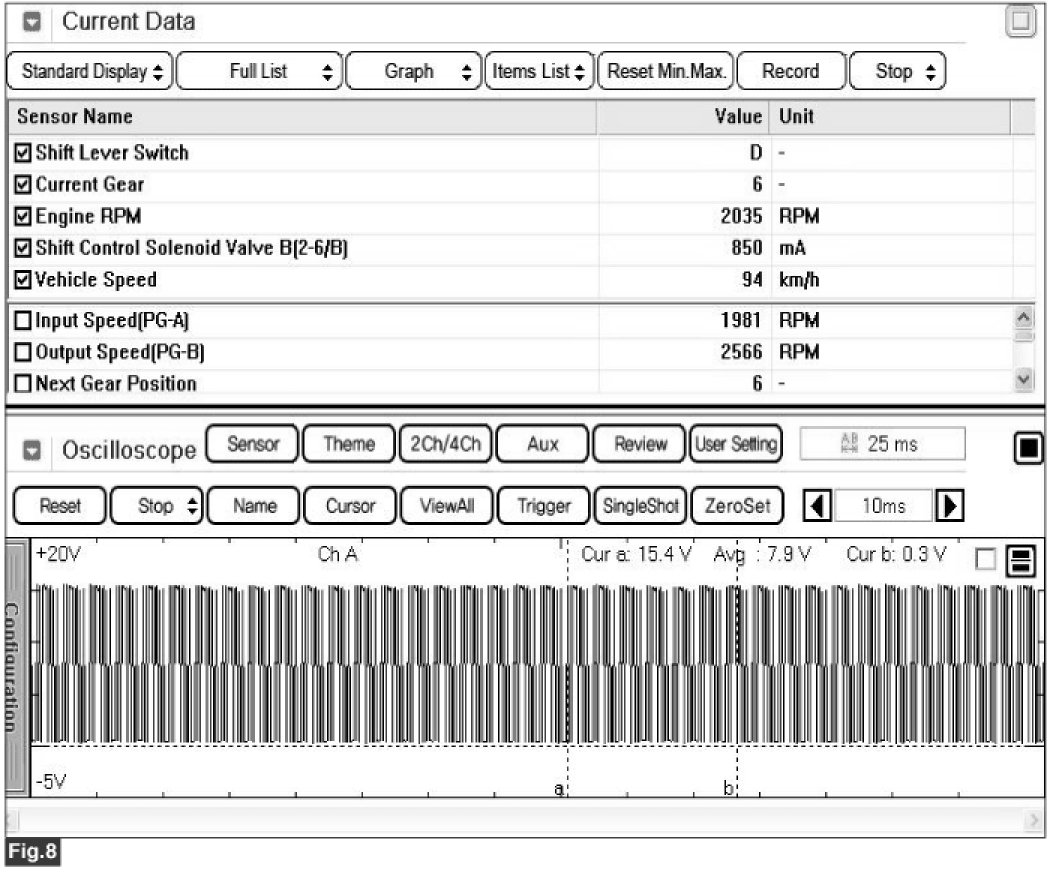

Fig 8) "D" range 6th gear

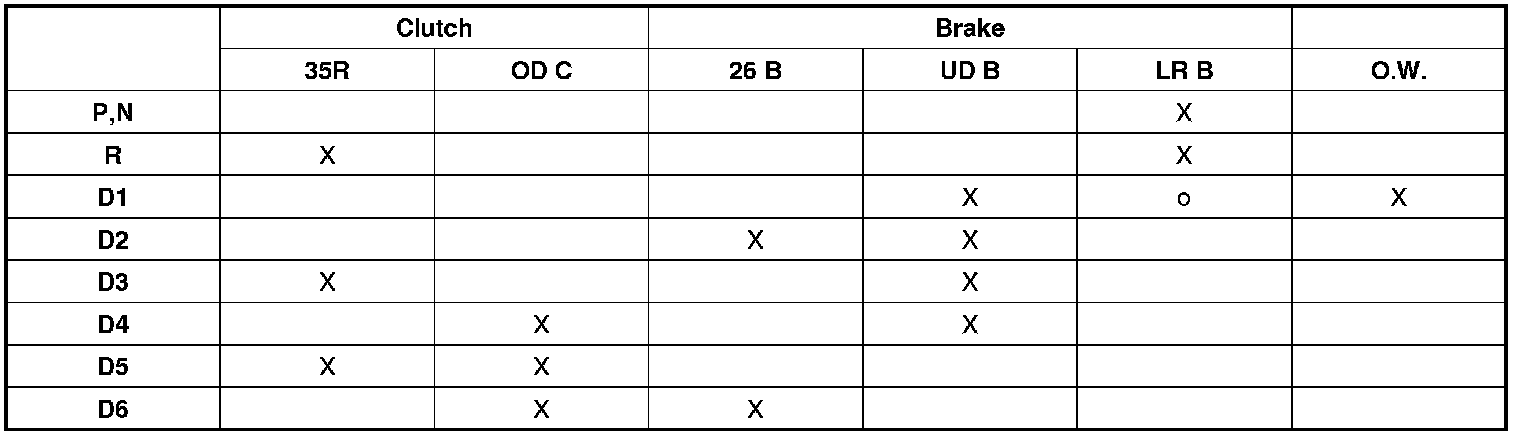

Operating step table at each status





o : Connected status
x : Connected at Vehicle speed above 8 km/h





o : Operated at Vehicle speed under 5 km/h

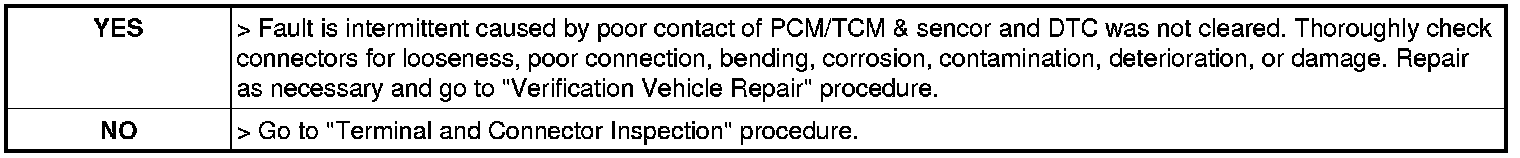

5. Is Shift Control Solenoid Valve (26/B-VFS) within specification?
