Component Inspection

P0753 Shift Control Solenoid Valve \'A\' Electrical (UD/B)

Inspection/Repair - Component Inspection

Component Inspection

Shift control solenoid valve (UD-VFS) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.

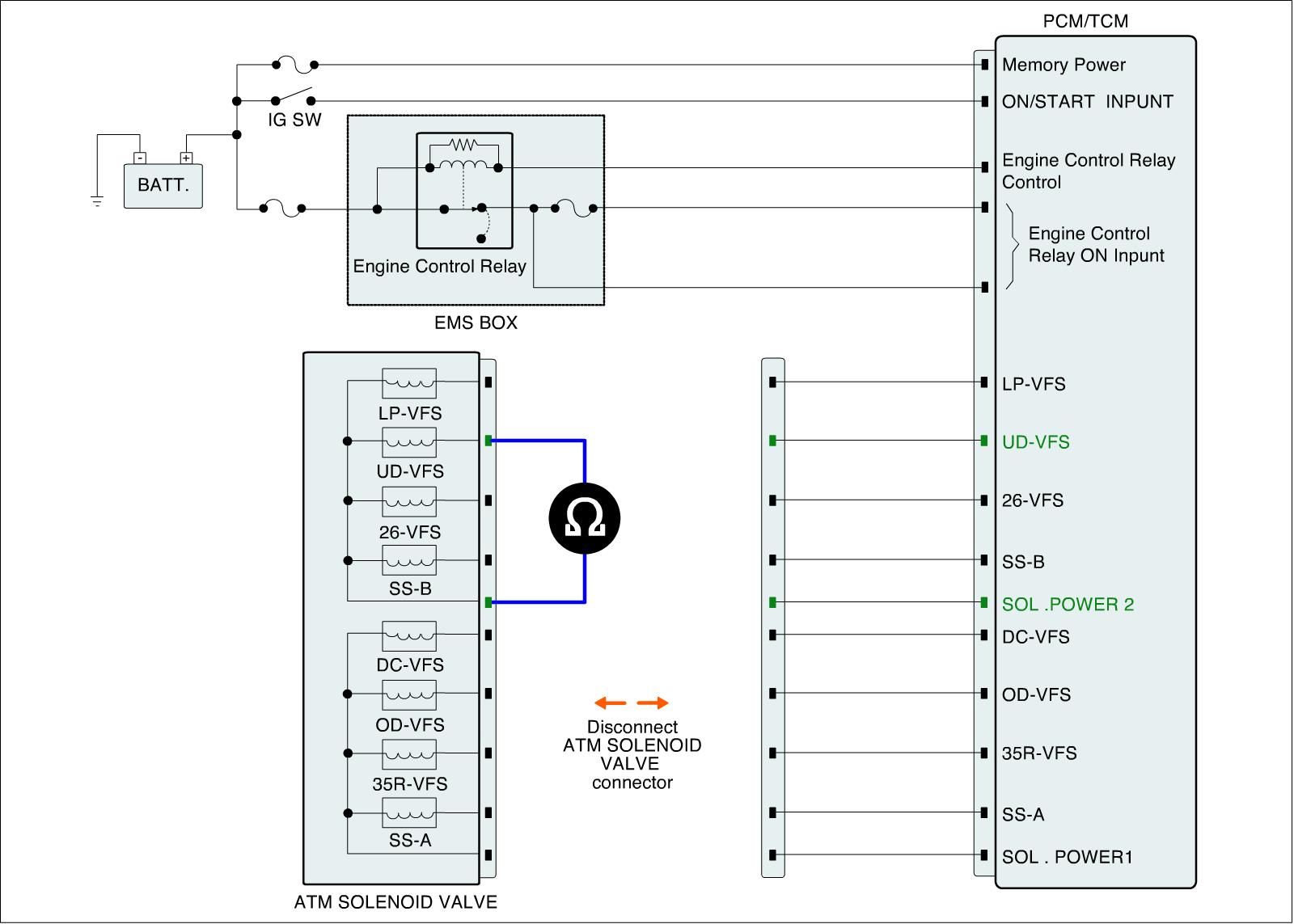

3. Measure a resistance between "Shift control solenoid valve (UD-VFS)" terminal and power at ATM solenoid valve connector.

Specification : 5.1 ± 0.3 Ohms (25 °C)

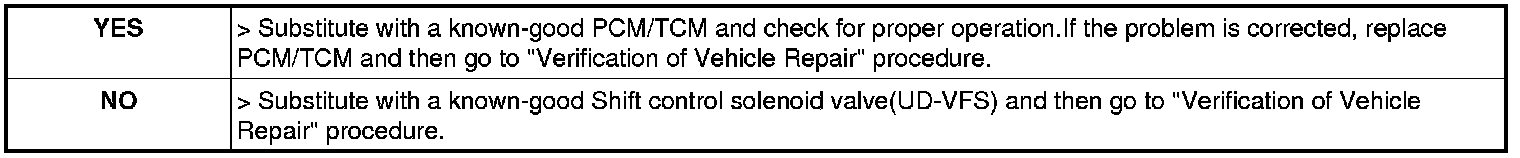

4. Is measured resistance within specification?
