Scantool Diagnostics

P0741 Torque Converter Clutch Circuit Performance or Stuck Off

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Select "Current Data" mode and monitor "Torque converter clutch" parameter.

Specification : See below data

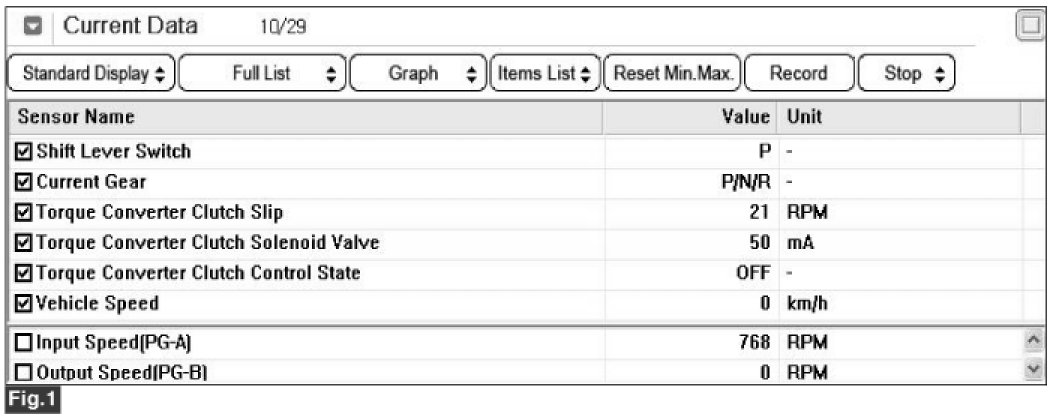

Fig 1) "P, N" range
Fig 2) "R" range

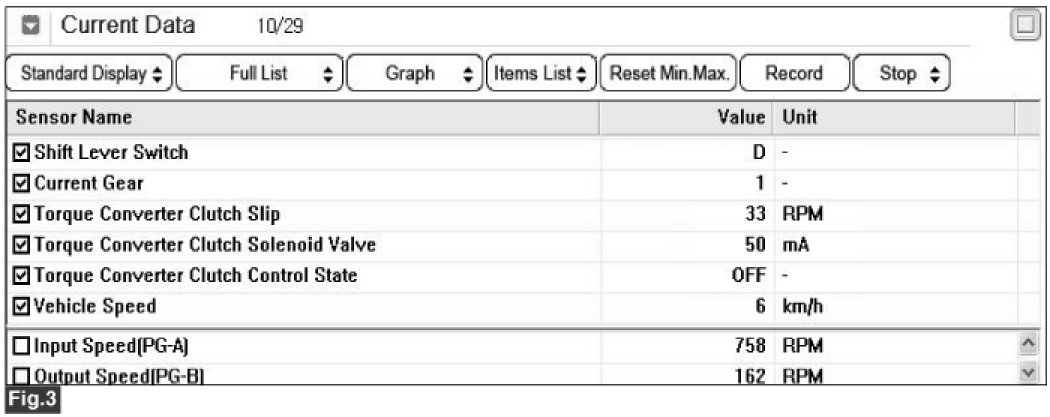

Fig 3) "D" range 1st gear
Fig 4) "D" range 2nd gear
Fig 5) "D" range 3rd gear

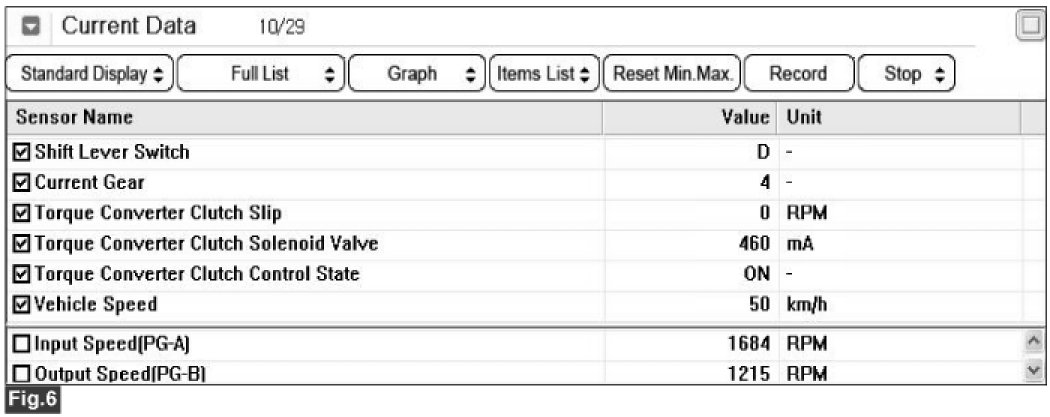

Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear
Fig 8) "D" range 6th gear

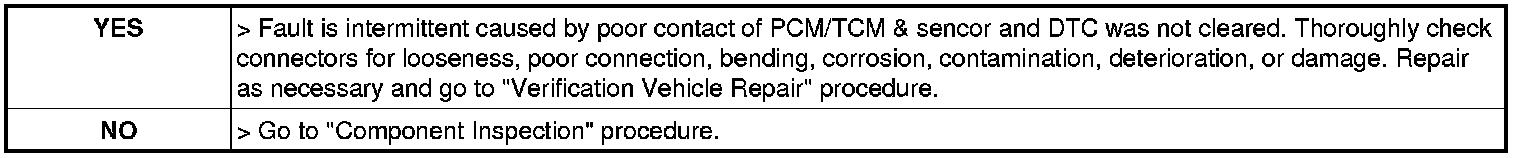

5. Is Torque converter clutch value within specification?
