P0733 Gear 3 Incorrect Ratio

General Information

Component Location





General Description

Input speed sensor value must be equal Output speed sensor value times each gear ratio at each gear position of transmission. That operation value equal with TCM operation value. For example Output speed sensor value is 1000 RPM and 3rd speed gear ratio is 1.8 then Input speed sensor value must be 1800 RPM.

DTC Description

This code is set when Input speed sensor value is different with TCM operation value, caused by control valve sticking, solenoid valve fault (most of fault is mechanical, rarely electrical fault).

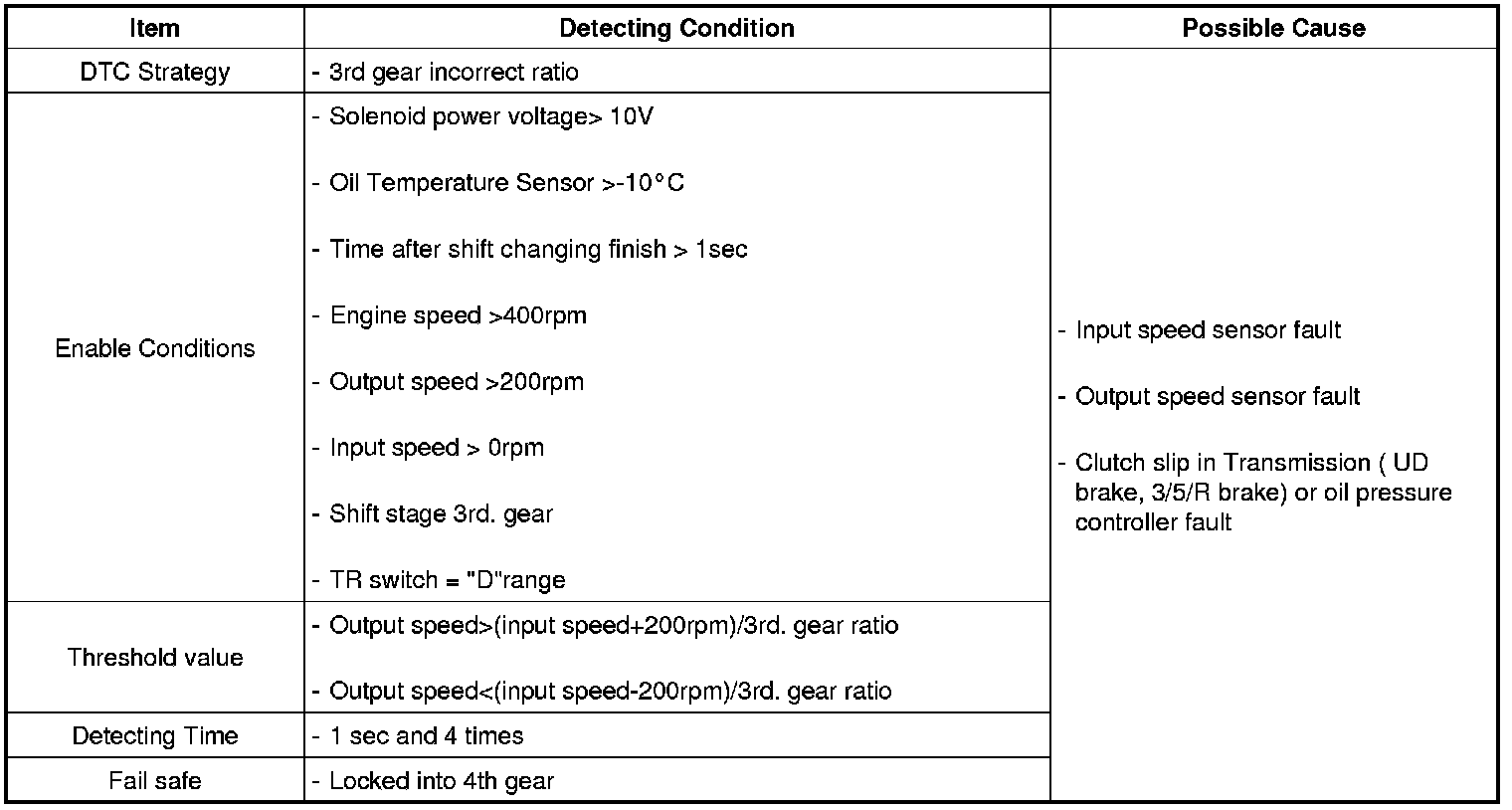

DTC Detecting Condition





Specification

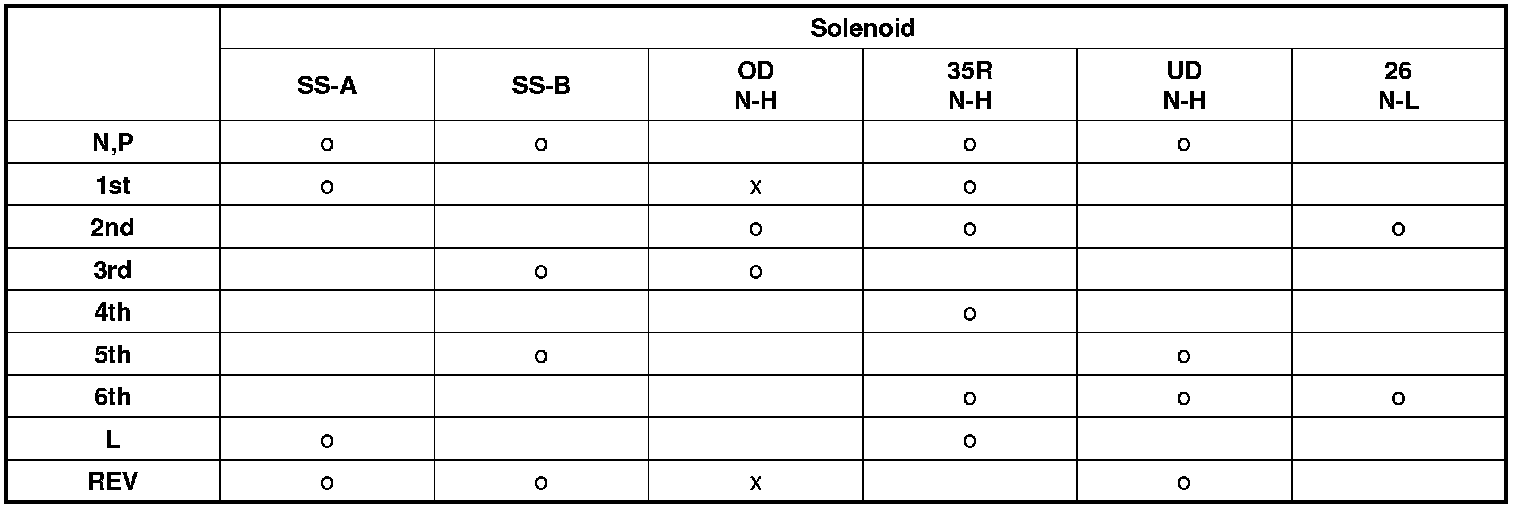

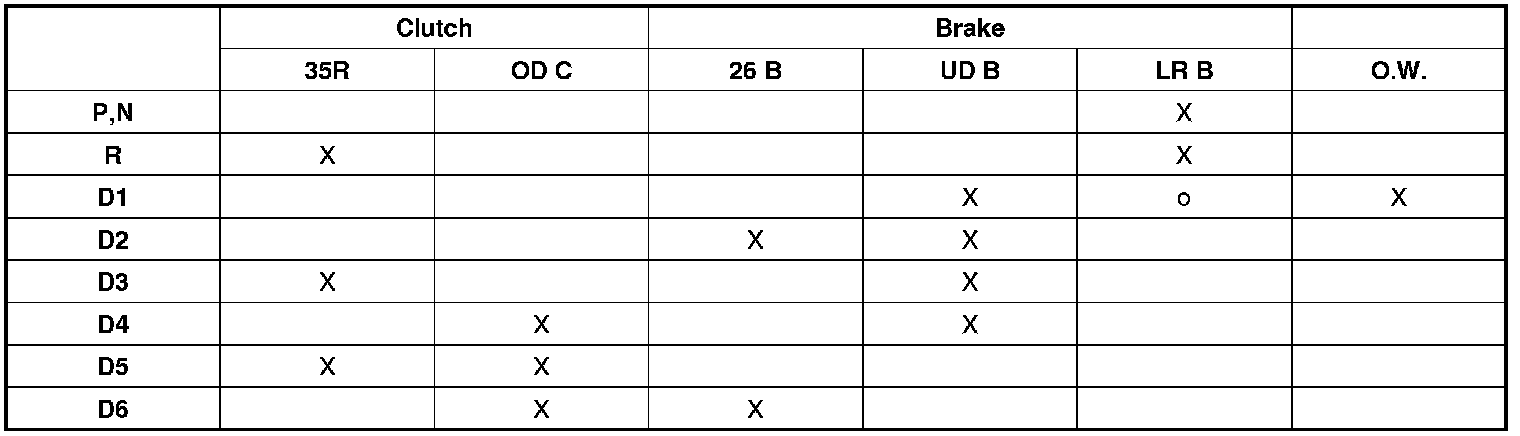

Operating step table at each status





o : Connected status
x : Connected at Vehicle speed above 8 km/h





o : Operated at Vehicle speed under 5 km/h

Signal Waveform & Data

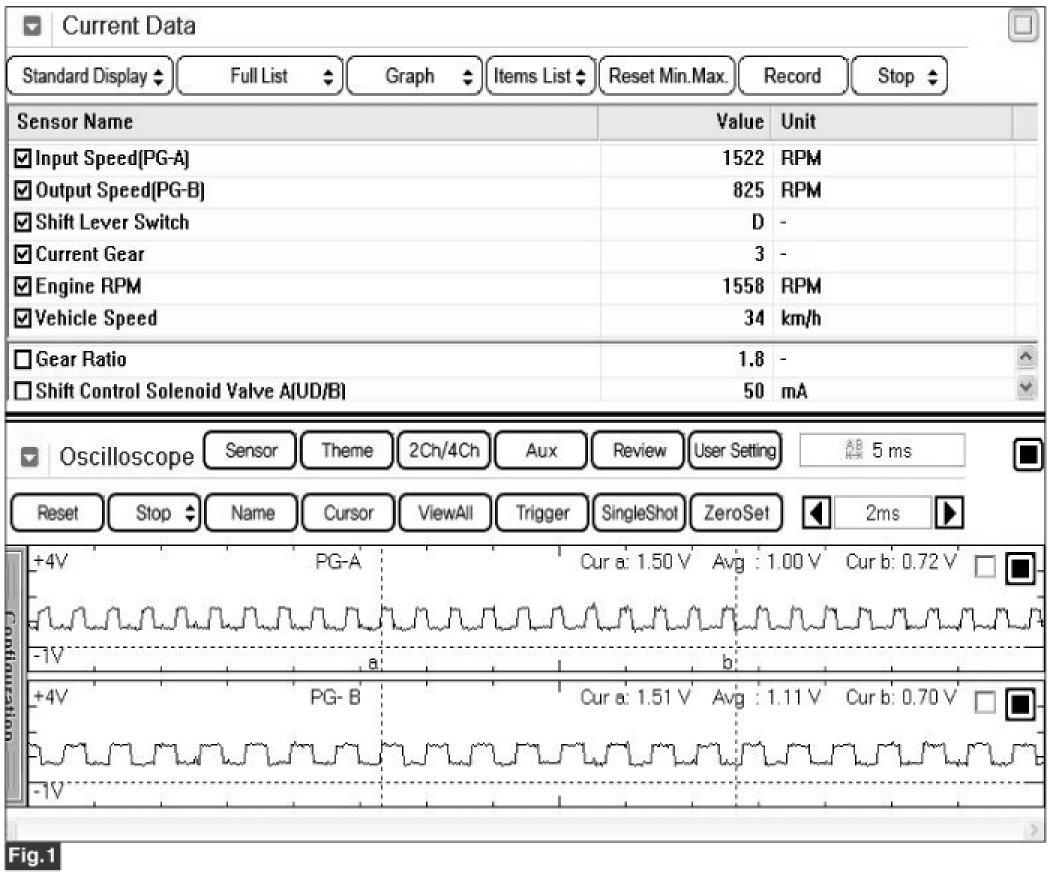

Fig 1) "D" range 3rd gear
