Component Inspection

P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector

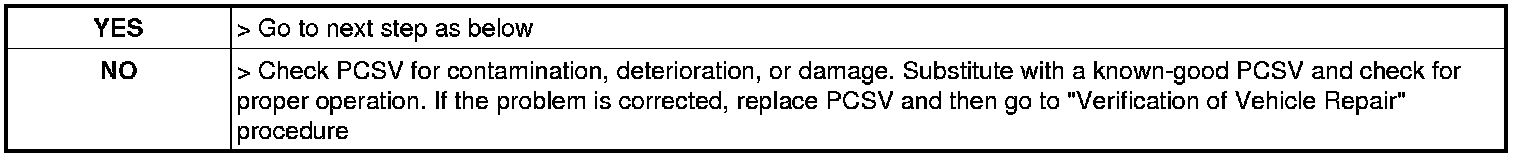

3. Measure resistance between power terminal and signal terminal of PCSV connector (Component side).
