W/Harness Inspection

C1127 TPMS ECU Battery Voltage High

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
3. Has a problem been found?

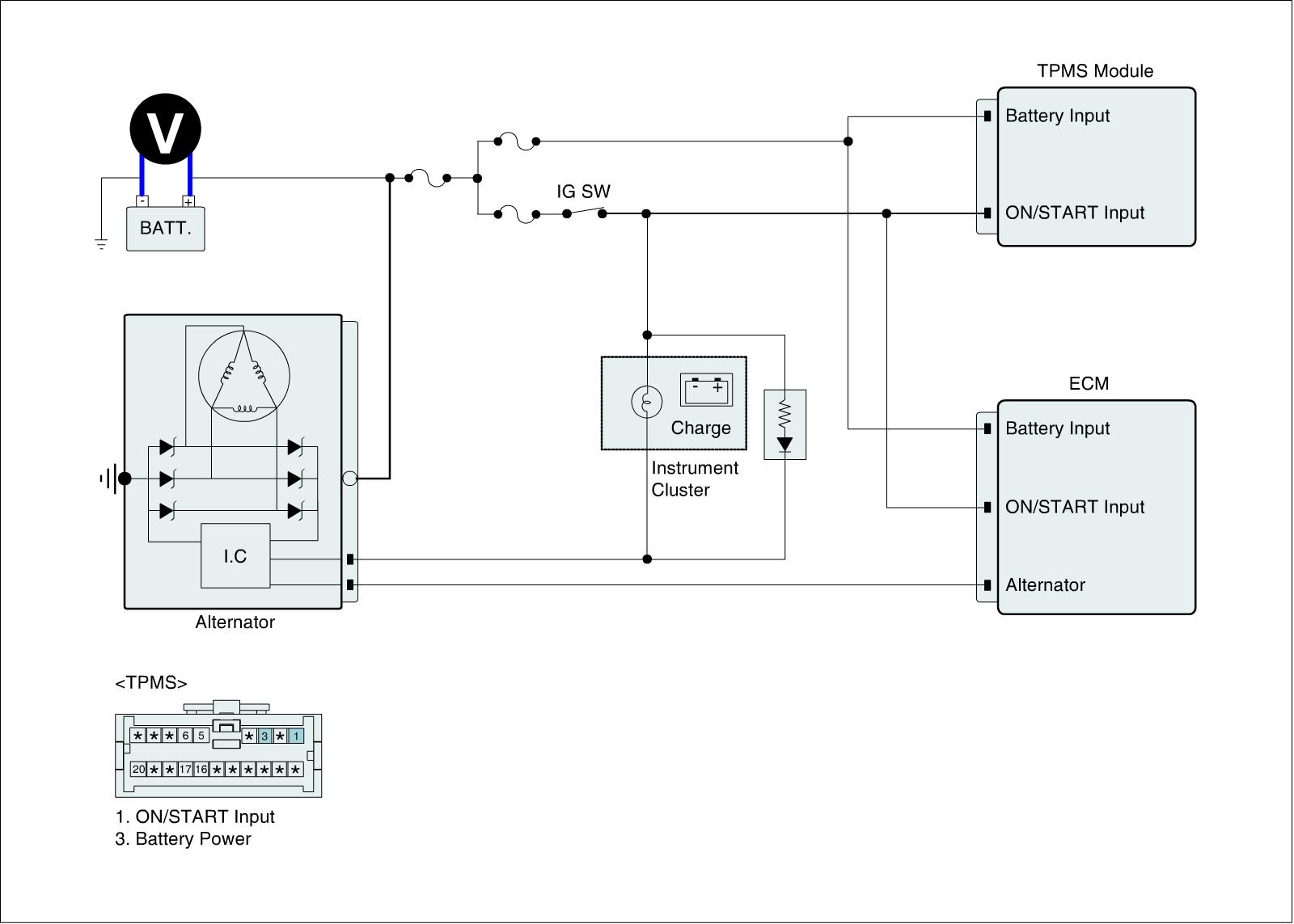

Charging System Inspection

1. Engine "ON"
2. Headlight and rear defroster "ON".
3. Measure voltage between terminal (+) and (-) of battery maintaining ENG. RPM at 2,500 RPM (idle) over 2 minutes.

Specification : less than 16 V




4. Is the measured voltage within specifications?
