W/Harness Inspection

C1112 Sensor source voltage

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Open or Short Check
1. Ignition "ON" & Engine "OFF".
2. Measure voltage between power terminal of the Yaw rate & lateral G sensor harness connector and chassis ground.

Specification : Approx. 12 V (Yaw rate & lateral G sensor)

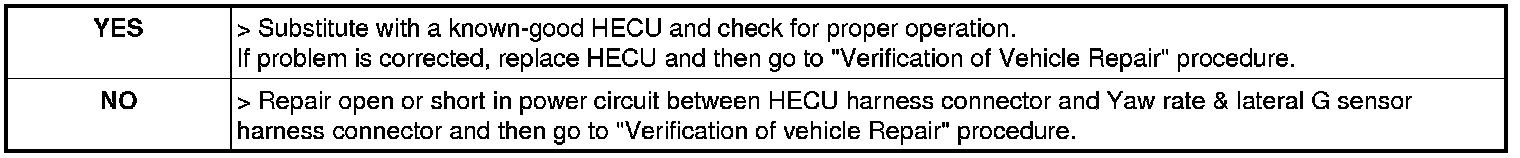

3. Is the measured value within specifications?
