C1102 Battery Voltage Low

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.

Specification : Above. 9±0.5 V




Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data

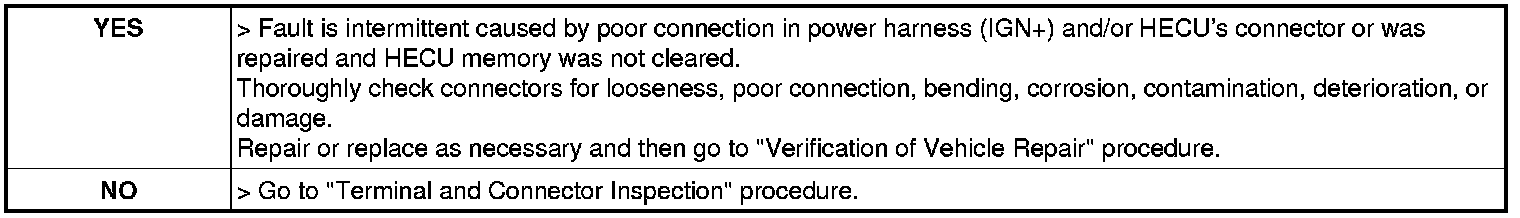

4. Is parameter displayed within specifications?
