Rear Wiper Motor

Removal

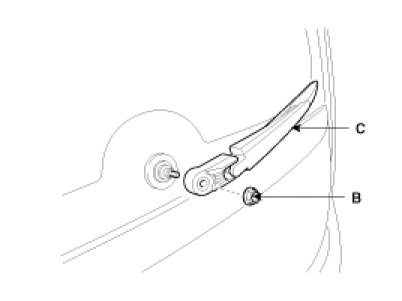

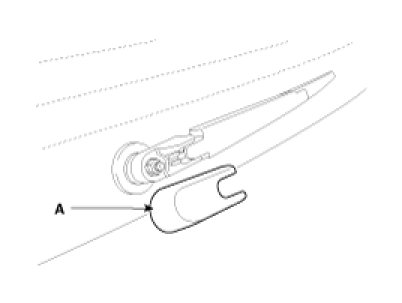

1. Detach the wiper cap (A), then remove the rear wiper arm (C) after removing a nut (B).

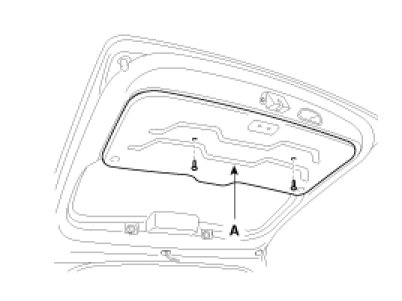

2. Open the tailgate then remove the tailgate trim.

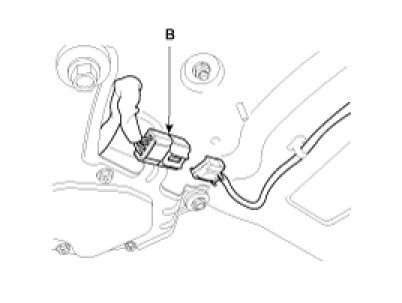

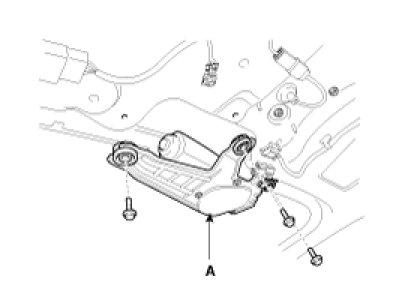

3. Disconnect the rear wiper motor connector (4P) (B) then remove the rear wiper motor (A) after removing 3 bolts.

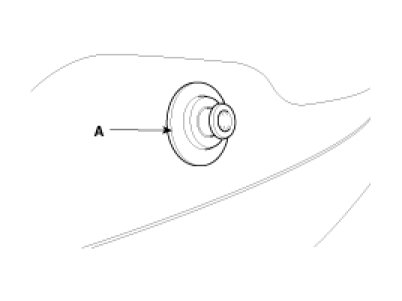

4. Remove the rubber packing (A).






Installation

1. Install the rubber packing.
2. Install the rear wiper motor assembly.

Tightening torque :
6.86 - 9.81N.m (0.7 - 1.0kgf.m, 5.0 - 7.2lb-ft)


3. Install the tailgate trim.
4. Install the rear wiper arm and rear wiper arm cap.

Tightening torque :
3.92 - 6.86N.m (0.4 - 0.7kgf.m, 2.9 - 5.0lb-ft)


NOTE:
Before installation, be sure that the rear wiper motor is in the park position.
Turn the wiper switch ON and OFF to allow the rear wiper motor to cycle and stop in the park position.

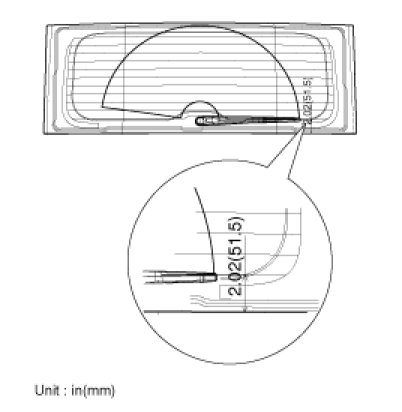

5. Set the rear wiper blade and to the lowest defogger heat line and tailgate glass.

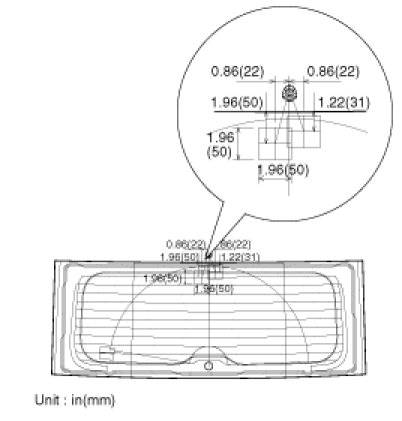

6. Set the rear washer nozzle on the specified spray position.
