Output Speed Sensor(A4CF2)

Removal

1. Remove the battery terminal.
2. Remove the battery and battery tray.
3. Remove the air duct.
4. Remove the air cleaner assembly.
5. Remove the output speed sensor connector(A).

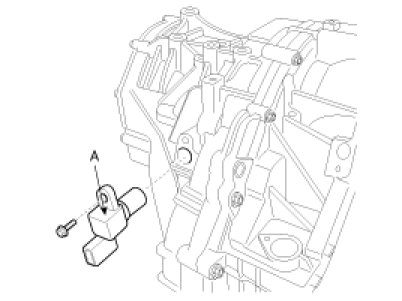

6. Remove the output speed sensor(A).






Installation

1. Install the new O-ring to the output shaft speed sensor.
2. Remove the output speed sensor (A).

Tightening torque :
10 - 12Nm(1.0 - 1.2kgf.m, 7 - 8lb-ft)


CAUTION:
While installing the output speed sensor, do not allow dust or other foreign particles to enter the transaxle.




3. Check the connector for dust, dirt, or oil, then connect the output speed sensor connector (A) securely.




4. Installation is the reverse of removal.
