Home >> Kia >> 2010 >> Soul L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Transmission Speed Sensor >> Description and Operation >> Input Speed Sensor(A4CF2)

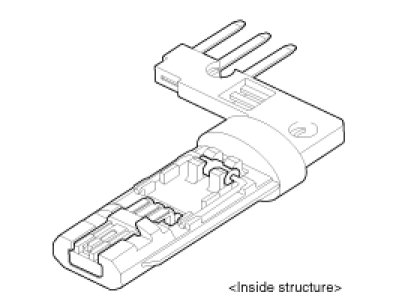

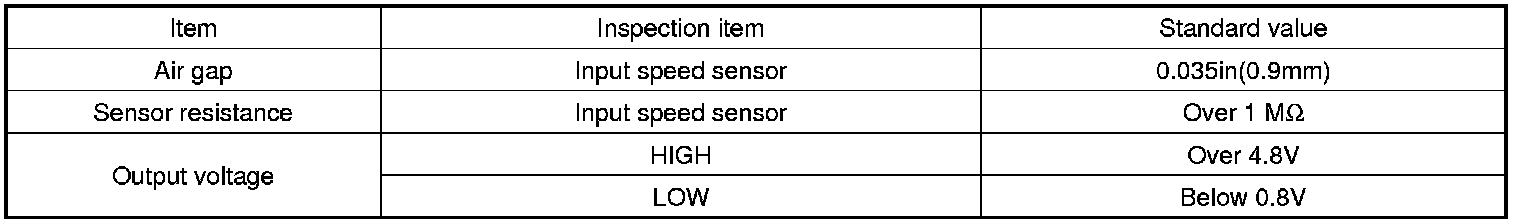

Input Speed Sensor(A4CF2)

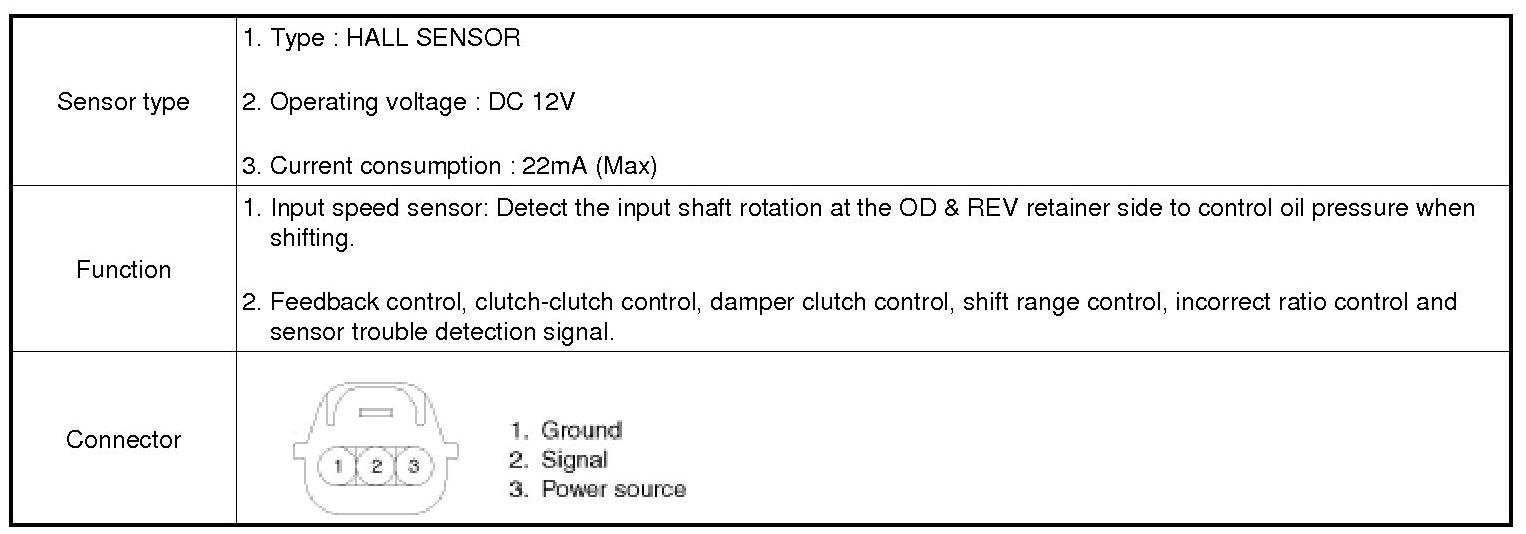

Description
