Repair procedures

Removal

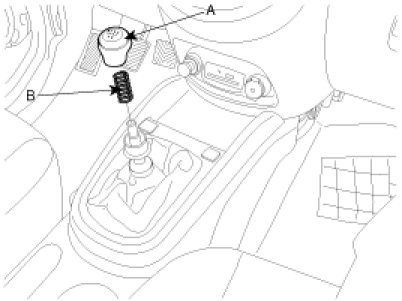

1. Remove the shift lever knob (A) by turning the knob, the spring (B).




2. Remove the shift boot.

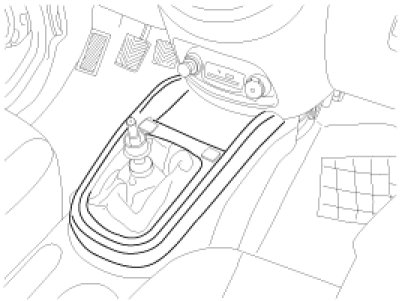

3. Remove the center console.(refer to Console in BD group)

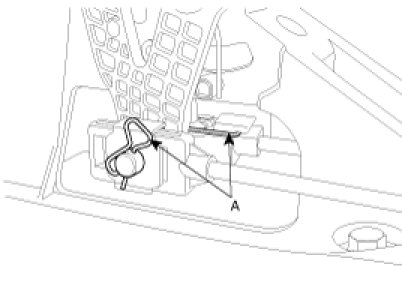

4. Remove the snap pin (A) and remove the select cable assembly.

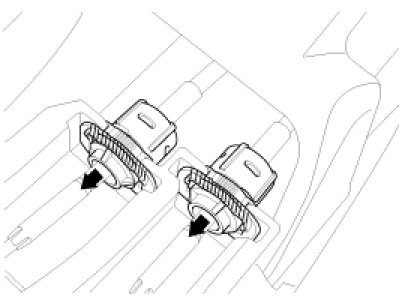

5. Remove the cable assembly by pulling the marking parts.

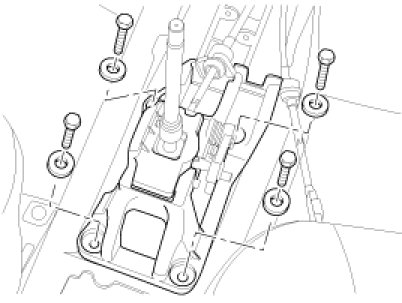

6. Remove the shift lever assembly by removing the bolts (4ea).

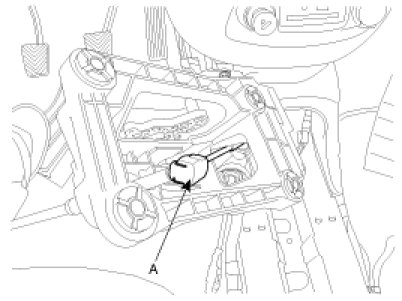

7. Remove the shift cable assembly (A) by loosening the clip.

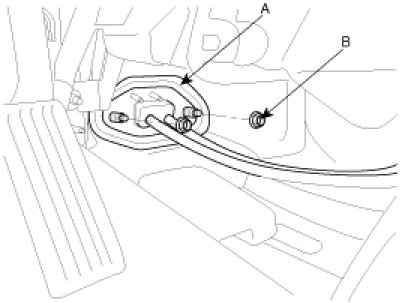

8. Remove the retainer (A) and nuts (B).




9. Remove the select and shift cable assembly from the transaxle. (refer to Manual Transaxle removal).

Installation

1. Install the cable assembly placing the select and shift lever in neutral position. .
2. Install the retainer (A) and nuts (B).

Tightening torque :
10 - 14Nm (1.0 - 1.4kgf.m, 7.2 - 10.1lb-ft)





3. Install the shift cable with the clip (A) to the shift lever.




4. Install the shift lever assembly by installing the bolts (4ea).

Tightening torque :
10 - 14Nm (1.0 - 1.4kgf.m, 7.2 - 10.1lb-ft)





5. Install the cable with the clip to the shift lever.




6. Install the snap pin (A) to hold the select cable assembly.




7. Install the center console.
8. Install the shift boot.




9. Install the spring(B) and the shift lever knob (A) by turning the knob.
