Cruise Control Switch: Testing and Inspection





Inspection

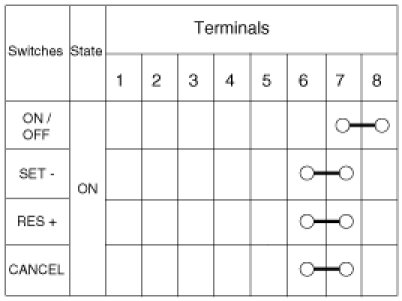

1. Operate the switches and check for continuity between the terminals.
2. If continuity is not as specified, replace the switch.
