Seat Belt Height Adjuster: Service and Repair

Replacement

Height adjuster replacement
1. Remove the following items first.
A. Front seat assembly.
B. Door scuff trim.
C. Front seat belt.
D. Center pillar trim.

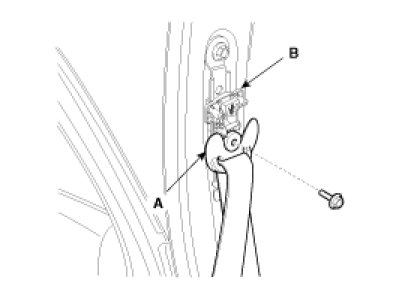

2. Remove the upper anchor (A).
3. After loosening the mounting bolt, then remove the height adjuster (B).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8lb-ft)





4. Installation is the reverse of removal.
