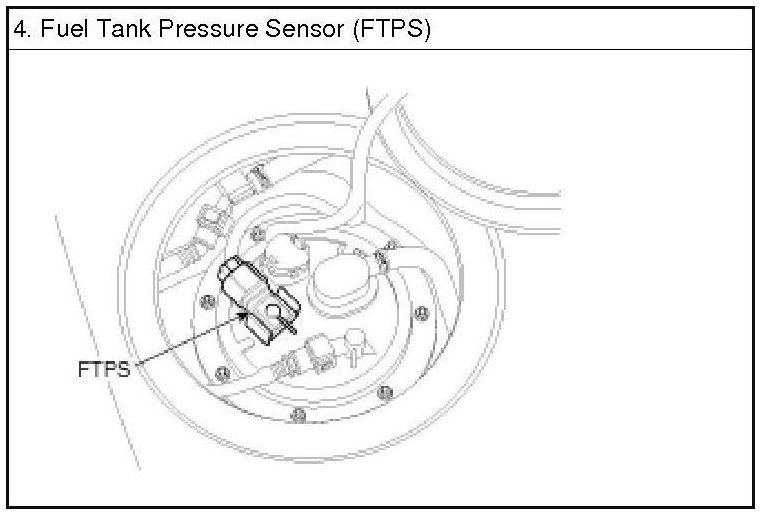

Fuel Tank Pressure Sensor
>>
Locations
>>
Outline
>>
Emission Control System
Emission Control System

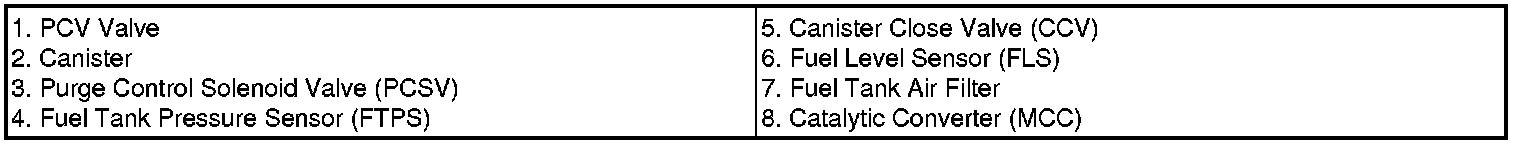

Components Location

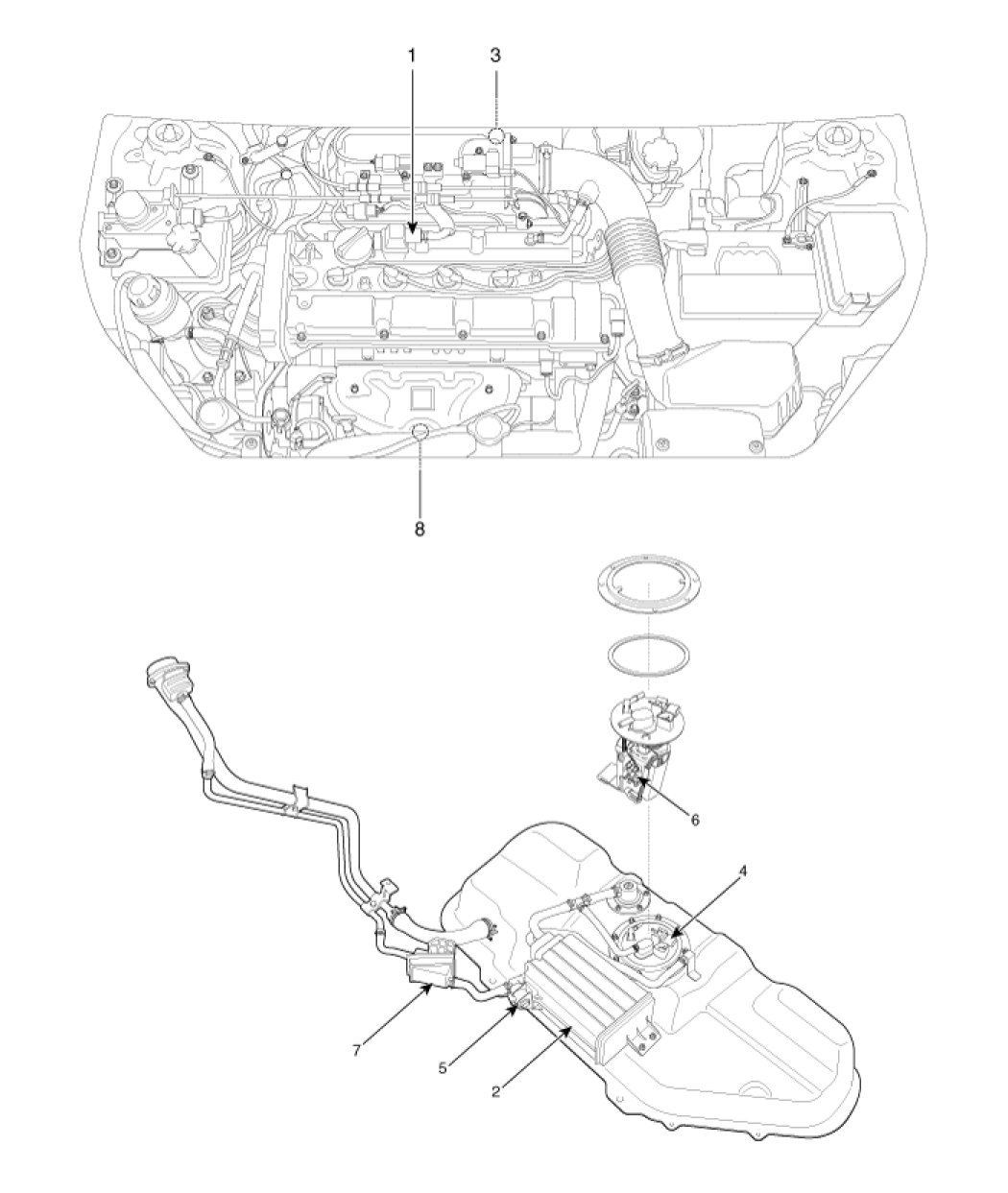

[1.6 DOHC]

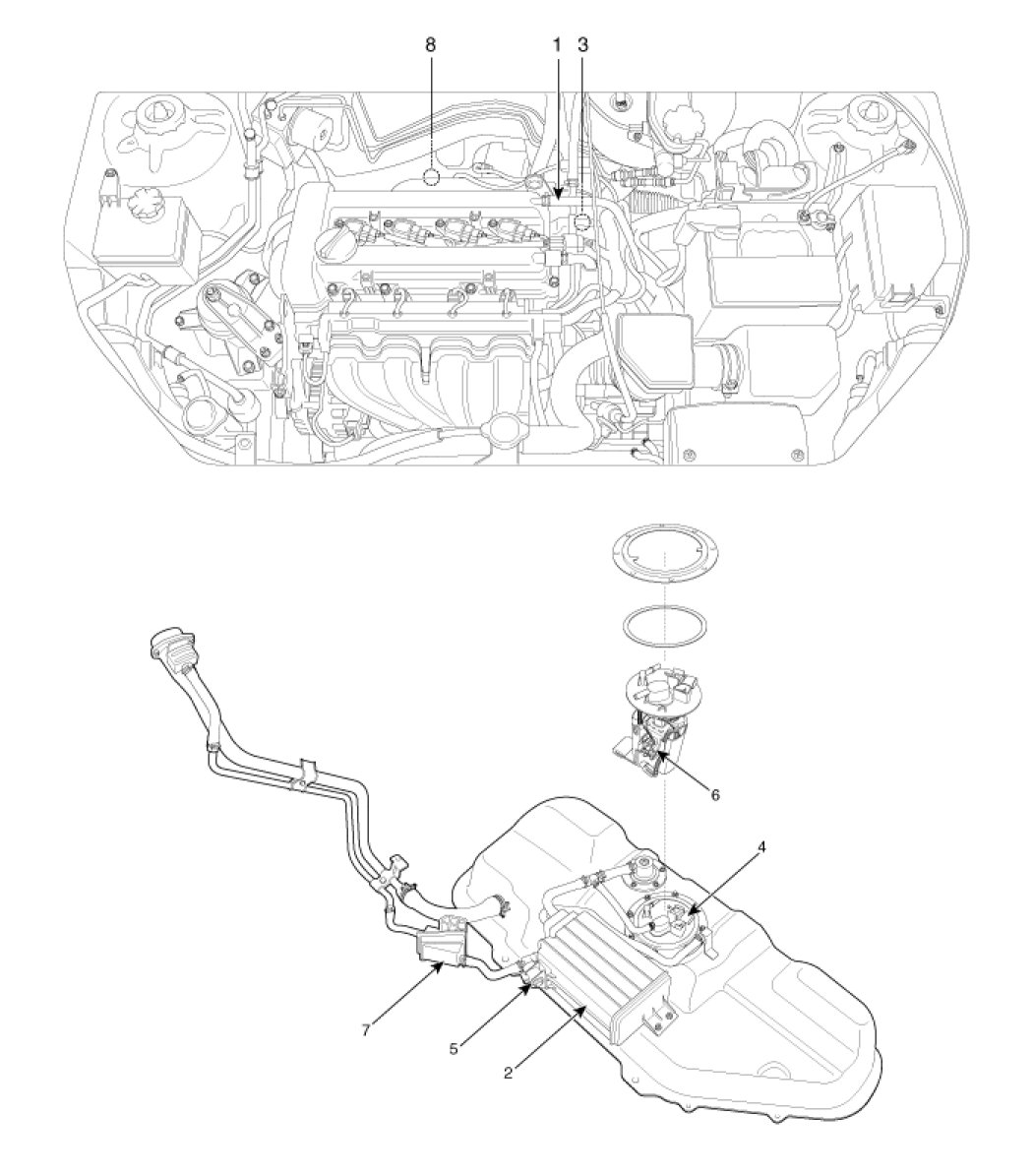

[2.0 DOHC]
