Component Tests and General Diagnostics

Inspection

Lighting Switch Inspection

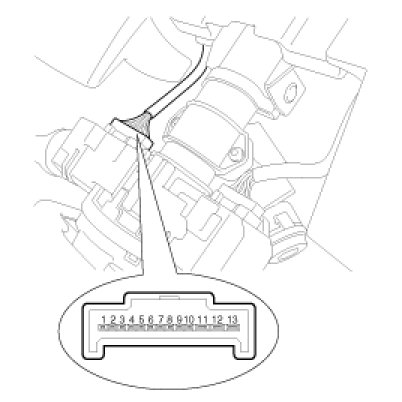

1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch

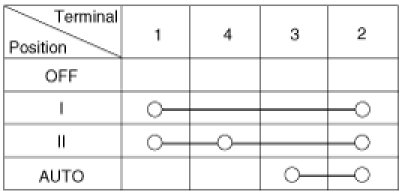

Lighting Switch (Auto Light)

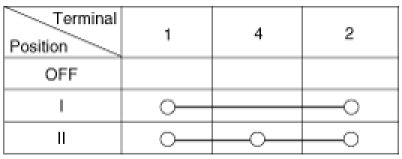

Lighting Switch
