Blower Motor Resistor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crashpad lower panel.(refer to BD group-crash pad)

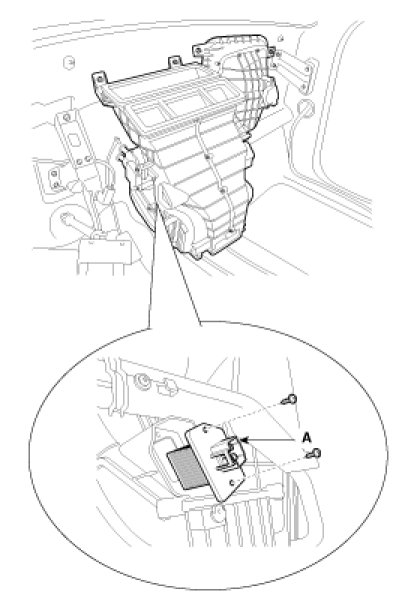

3. Disconnect the connector and then remove the blower resistor (A).




4. Installation is the reverse order of removal.
