Muffler: Service and Repair

Removal

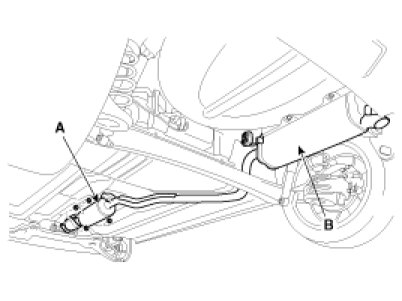

1. Disconnect the rear heated oxygen sensor connector (A).
2. Remove the front muffler (B).

Tightening torque
39.8 - 58.8Nm (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)





3. Remove the center muffler(A) and the main muffler(B).

Tightening torque
39.8 - 58.8Nm (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)





4. To install, reverse the removal procedure.
