Repair procedures

Removal

1. Drain the engine coolant.

WARNING:
System is under high pressure when the engine is hot. To avoid danger of releasing scalding engine coolant, remove the cap only when the engine is cool.

2. Remove drive belts.
3. Remove the timing belt and the timing belt idler.
4. Remove the water pump.

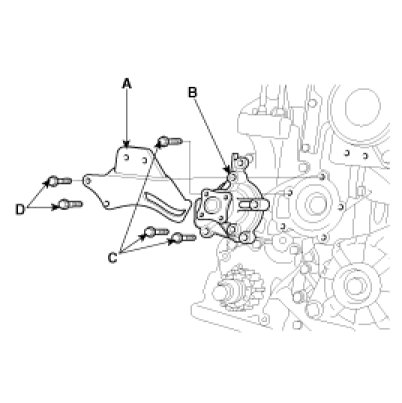

(1) Remove the bolts (D), then remove the alternator brace (A).
(2) Remove the bolts (C), then remove the water pump (B) and gasket.






Installation

1. Install the water pump.

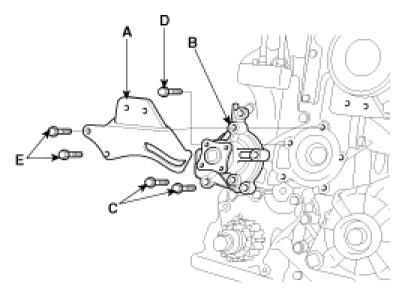

(1) Install the water pump (B) and a new gasket with the 3 bolts (C, D).

Tightening torque
Bolts (C) : 19.6 - 23.5Nm (2.0 - 2.4kgf.m, 14.5 - 17.4lb-ft)
Bolts (D) : 19.6 - 26.5Nm (2.0 - 2.7kgf.m, 14.5 - 19.5lb-ft)





(2) Install the alternator brace (A) with the 2 bolts (E).

Tightening torque
19.6 - 23.5Nm (2.0 - 2.4kgf.m, 14.5 - 17.4lb-ft)


2. Install the timing belt idler and the timing belt.
3. Install the water pump pulley.
4. Install drive belts.
5. Tighten the bolts on the water pump pulley.

Tightening torque
7.8 - 9.8Nm (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)





6. Fill with engine coolant.
7. Start engine and check for leaks.
8. Recheck engine coolant level.
