Removal and Replacement

Removal

CAUTION:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:
- Mark all wiring and hoses to avoid misconnection.
- Inspect the timing belt before removing the cylinder head.
- Turn the crankshaft pulley so that the No. 1 piston is at top dead center.

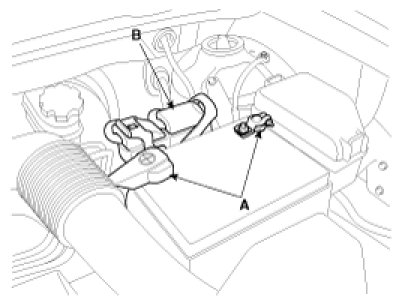

1. Disconnect the battery terminals (A) and ECM connector (B).

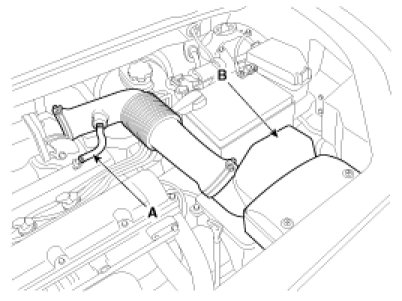

2. Remove the air intake hose and the air cleaner assembly.
(1) Disconnect the breather hose (A).
(2) Remove the air cleaner assembly (B).

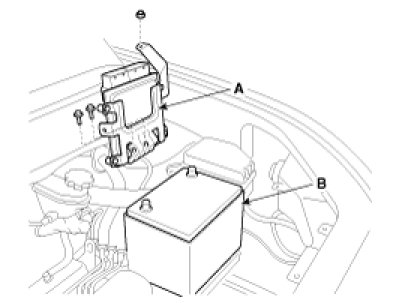

3. Remove the ECM (A) and battery (B).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)





4. Remove the battery tray (A).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)

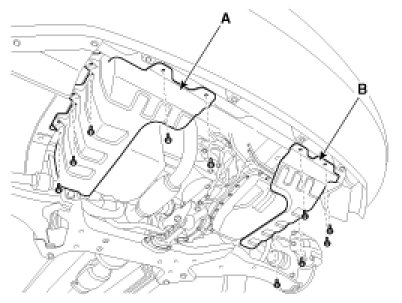

5. Remove the under covers (A, B).

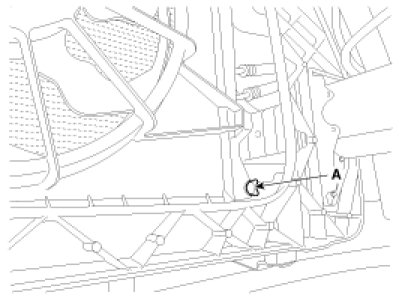

6. Loosen the radiator drain plug (A) and drain engine coolant. Remove the radiator cap to speed draining.




7. Remove the high & low pressure pipe. .

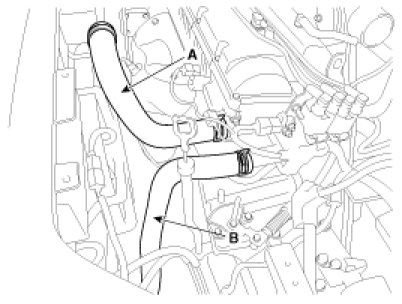

8. Remove the upper radiator hose (A) and lower radiator hose (B).

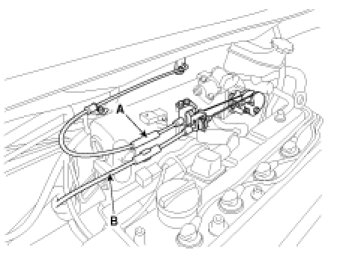

9. Disconnect the accelerator cable (A) and the auto-cruise cable(B) from the cylinder head cover.




10. Disconnect the engine wiring harness connectors, clamps and hoses.

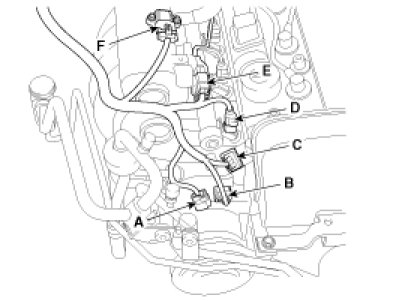

(1) Disconnect the A/C compressor switch connector (A).
(2) Disconnect the knock sensor connector (B).
(3) Disconnect the TDC sensor connector (C).
(4) Disconnect the fuel injector (No. 1) connector (D).
(5) Disconnect the fuel injector (No. 2,3,4) connector (E).
(6) Disconnect the MAP sensor connector (F).

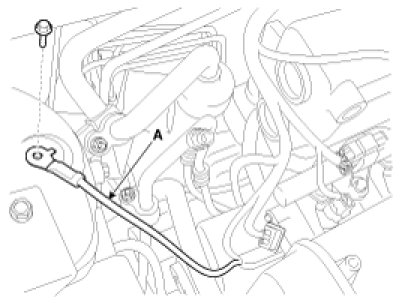

(7) Disconnect the engine ground line (A).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)





(8) Disconnect the PCSV connector (A).
(9) Disconnect the TPS connector (B).
(10) Disconnect the ISCA connector (C).

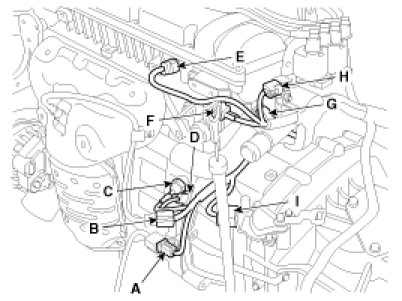

(11) Disconnect the front heated oxygen sensor connector (A).
(12) Disconnect the rear heated oxygen sensor connector (B).
(13) Disconnect the oil pressure switch connector (C).
(14) Disconnect the CKPS connector (D).
(15) Disconnect the OCV connector (E).
(16) Disconnect the OTS connector (F).
(17) Disconnect the ECTS connector (D).
(18) Disconnect the ignition coil connector (E).
(19) Disconnect the inhibitor switch connector (F).

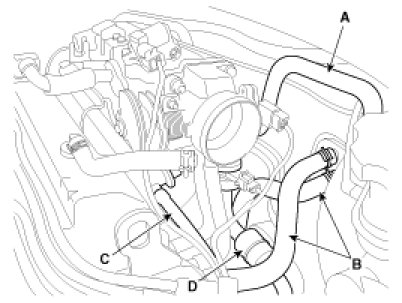

(20) Disconnect the brake booster vacuum hose (A).
(21) Disconnect the heater hoses (B).
(22) Disconnect the fuel inlet hose (C).
(23) Disconnect the PCSV hose (D).




11. Remove the transaxle wire, control cable and hose. .

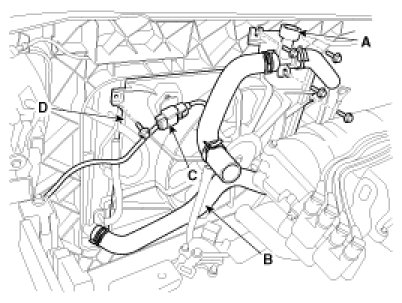

12. Remove the blower assembly.
(1) Remove the upper radiator hose and cap assembly (A) and lower hose (B).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)


(2) Disconnect the fan motor connector (C).
(3) Remove the blower assembly (D).




13. Disconnect the driveshaft from the front hub assembly.
14. Disconnect the stabilizer bar link.

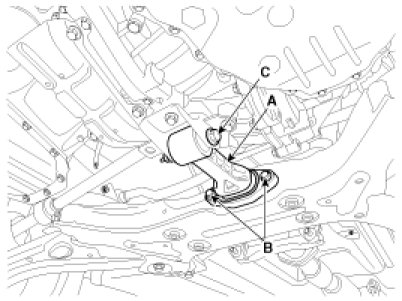

15. Remove the rear roll stopper (A).

Tightening torque :
Bolt (B): 49.0 - 63.7N.m (5.0 - 6.5kgf.m, 36.2 - 47.0lb-ft)
Bolt (C): 88.3 - 107.9N.m (9.0 - 11.0kgf.m, 65.1 - 79.6lb-ft)






NOTE:
Mark the rear roll stopper direction for proper installation.

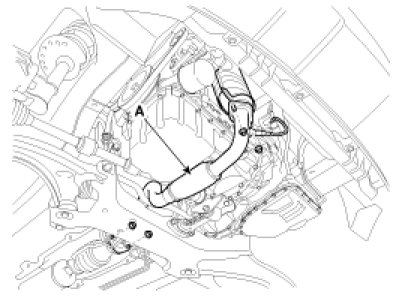

16. Remove the front muffler (A).

Tightening torque :
39.2 - 49.0N.m (4.0 - 5.0kgf.m, 28.9 - 36.2lb-ft)





17. Using a floor jack, support the engine and transaxle assembly.

WARNING:
- After removing the mounting bolt (engine and transaxle), the engine and transaxle assembly may fall downward, and so support them securely with floor jack.
- Verify that the hoses and connectors are disconnected before removing the engine and transaxle assembly.

18. Remove the engine mounting bracket (A).

Tightening torque :
Nut (B) : 63.8 - 83.4N.m (6.5 - 8.5kgf.m, 47.0 - 61.5lb-ft)
Bolt (C) & Nuts (D) :
49.0 - 63.7N.m (5.0 - 6.5kgf.m, 36.2 - 47.0lb-ft)

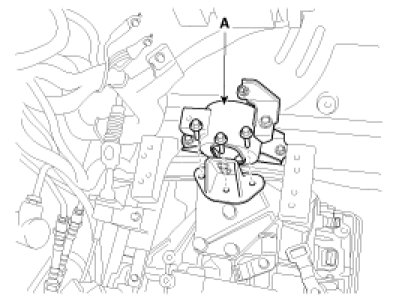

19. Remove the transaxle mounting bracket (A).

Tightening torque :
Bolts (C) : 88.3 - 107.9N.m (9.0 - 11.0kgf.m, 65.1 - 79.6lb-ft)

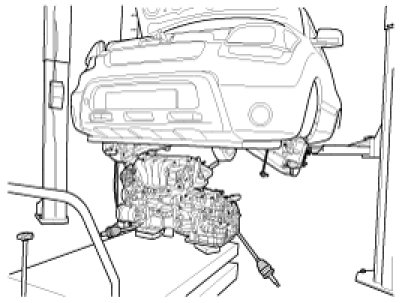

20. Remove the engine and transaxle assembly by lifting vehicle.





CAUTION:
When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.

Installation

Installation is in the reverse order of removal.
Perform the following :
- Adjust shift cable.
- Adjust throttle cable.
- Refill engine with engine oil.
- Refill transaxle with fluid.
- Refill radiator with engine coolant.
- Refill A/C refrigerant.
- Bleed air from the cooling system with the heater valve open.
- Clean battery posts and cable terminals with sandpaper assemble them, then apply grease to prevent corrosion.
- Inspect for fuel leakage.
After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressureizes.
Repeat this operation two or three times, then check for fuel leakage throughout the fuel lines.
