Seat Cushion: Service and Repair

Replacement

Seat Cushion Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.

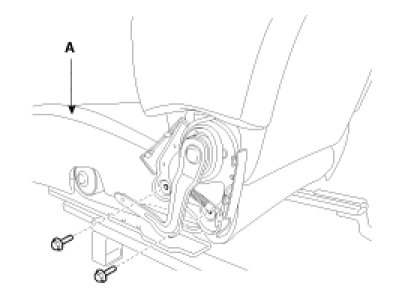

3. Remove the seat cushion assembly (A).

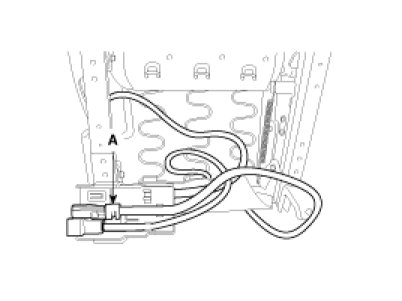

4. Disconnect the heater connector (A).




5. Disconnect the air bag wiring (A).

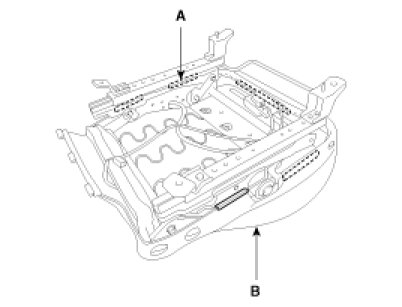

6. After disconnect the protector (A), then remove the seat cushion (B).

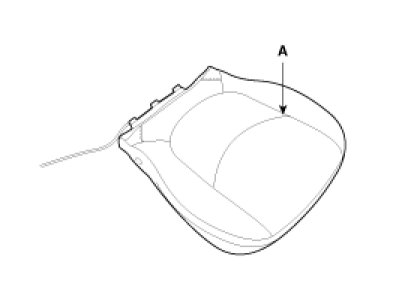

7. After removing the hogring clips on the front of seat cushion and remove the seat cushion cover (A).




8. Installation is the reverse of removal.
