Seat Back: Service and Repair

Replacement

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the headrest.

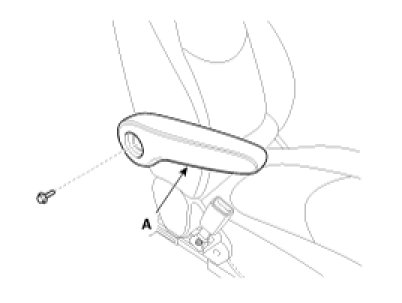

3. Loosen the armrest mounting bolt, remove the armrest (A).

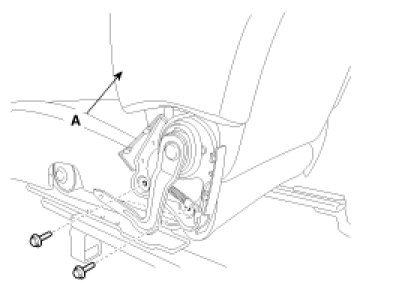

4. Remove the seat back assembly (A).

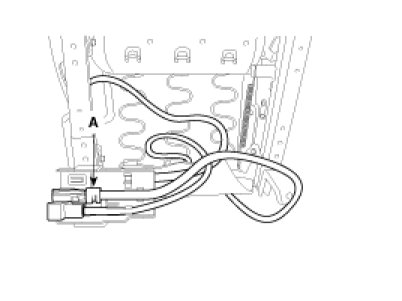

5. Disconnect the connector (A).

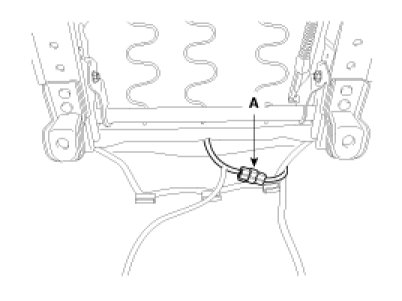

6. Disconnect the air bag wiring (A).

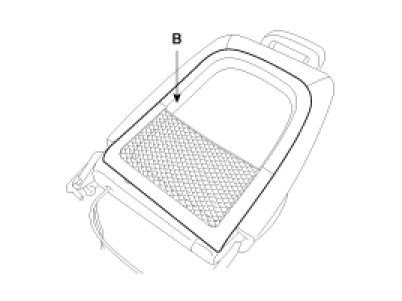

7. Remove the seat back panel (B).

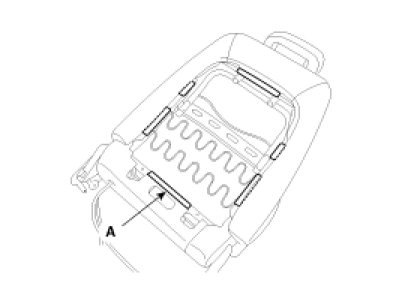

8. Disconnect the protector (A) from the back frame.

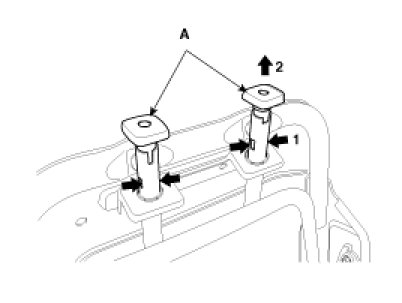

9. Remove the headrest and headrest guide (A).

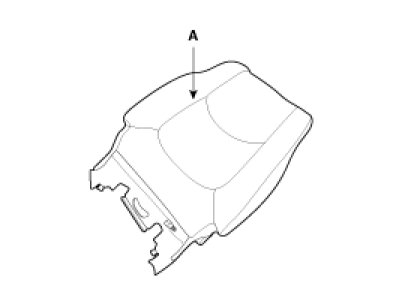

10. After removing the hogring clip on the front of seat back and remove the seat back cover (A).




11. Installation is the reverse of removal.
