Speaker Replacement

Replacement

Speaker Replacement
1. Remove the grill (A).




2. Loosen the mounting screw.

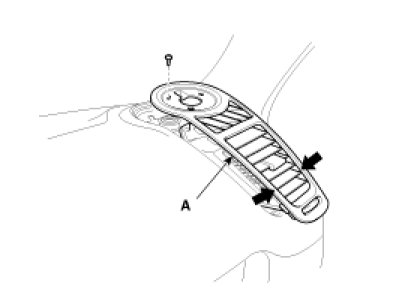

3. Insert the air vent remover (09840-1M100) into the air vent hole and pull the air vent (A) remover.





CAUTION:
- To prevent the damage to the air vent, the air vent remover should be used to grab the side of the air vent.

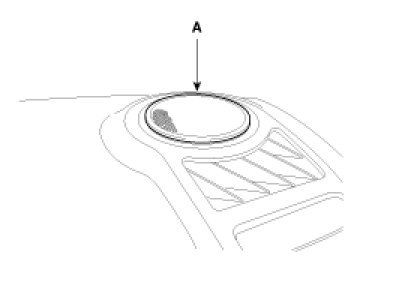

4. After loosening the mounting screws, remove the speaker (A).

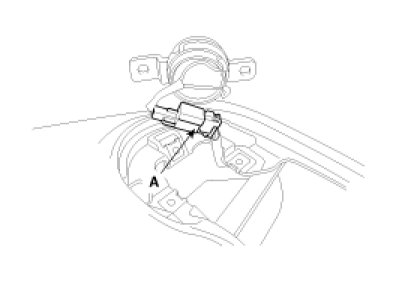

5. Disconnect the speaker connector (A).




6. Installation is the reverse of removal.
