P0880 TCM Power Signal Error Open/Short (GND)

General Information

Component Location





General Description

The TCM monitors suppling voltage to "SOLENOID VALVE"
The gear position is fixed at 3rd gear When input value is higher or lower than specification.

DTC Description

The TCM set this code If an input voltage is higher or lower than specification.

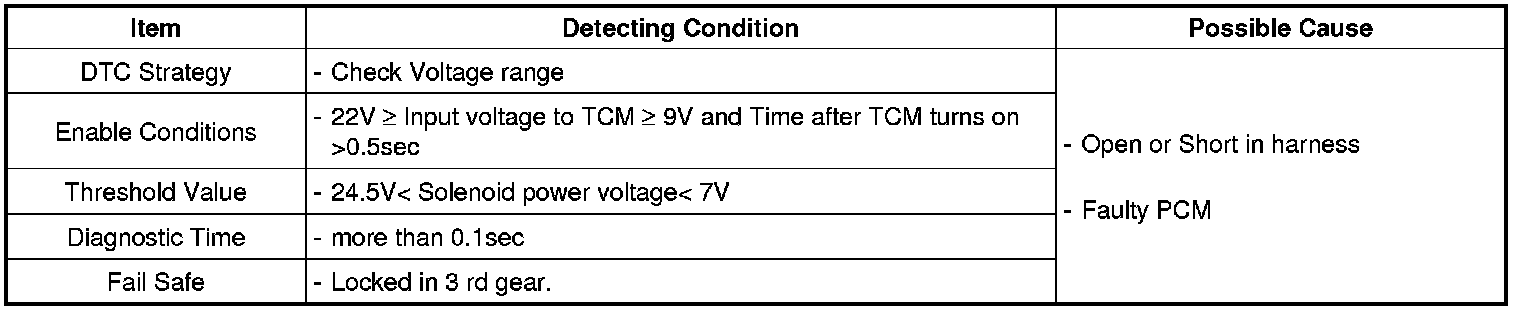

DTC Detecting Condition





Diagnostic Circuit Diagram
