Monitor DTC Status

P0765 Shift Control Solenoid Valve \'D\'(Over Drive Clutch Solenoid)

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PCSV-C (UD) SOLENOID VALVE" parameter on the GDS
4. Shift gear at each position.

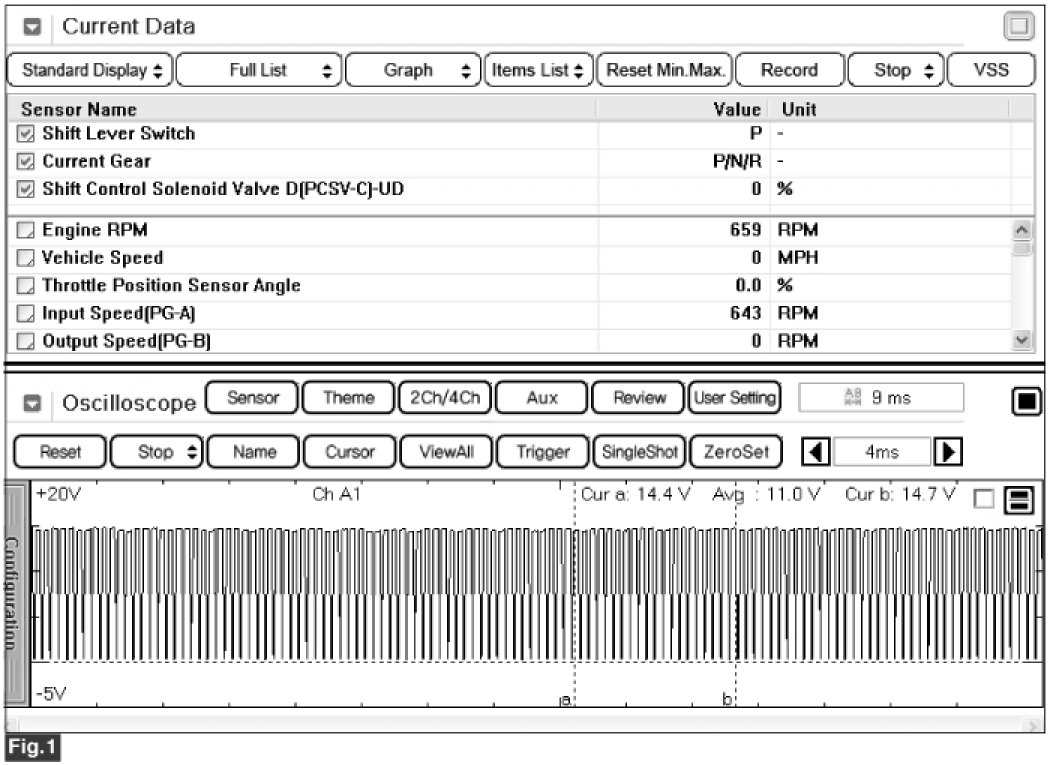

Fig 1) "P, N "

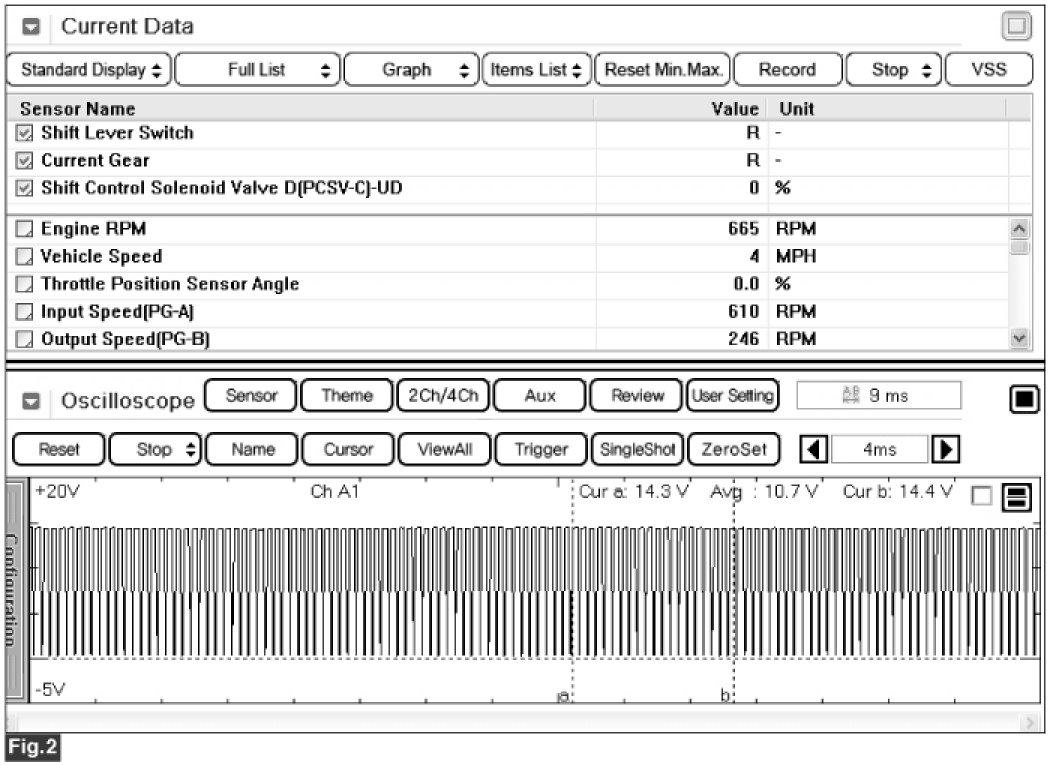

Fig 2) "R"

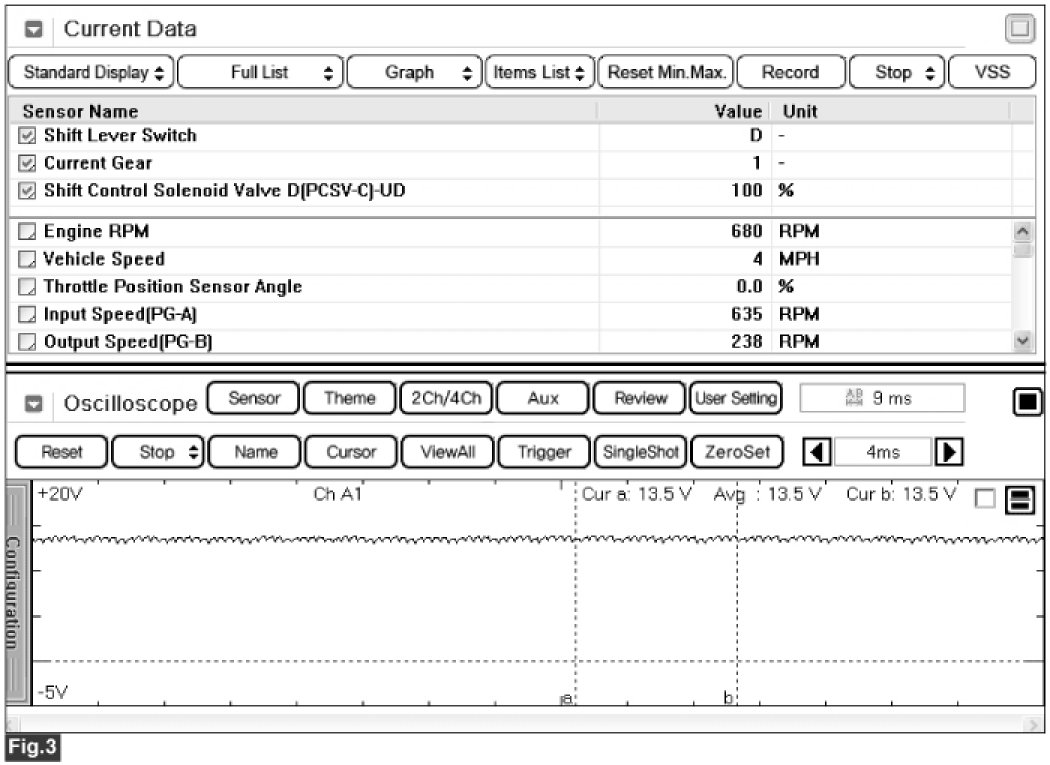

Fig 3) "1st" gear

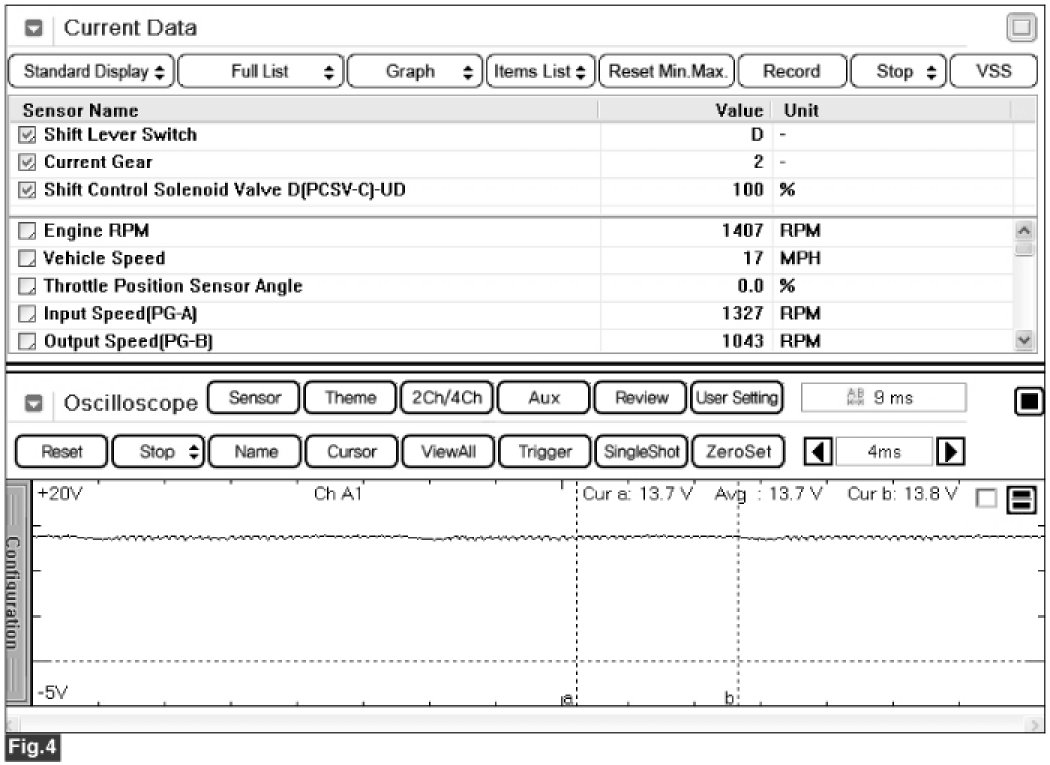

Fig 4) "2nd" gear

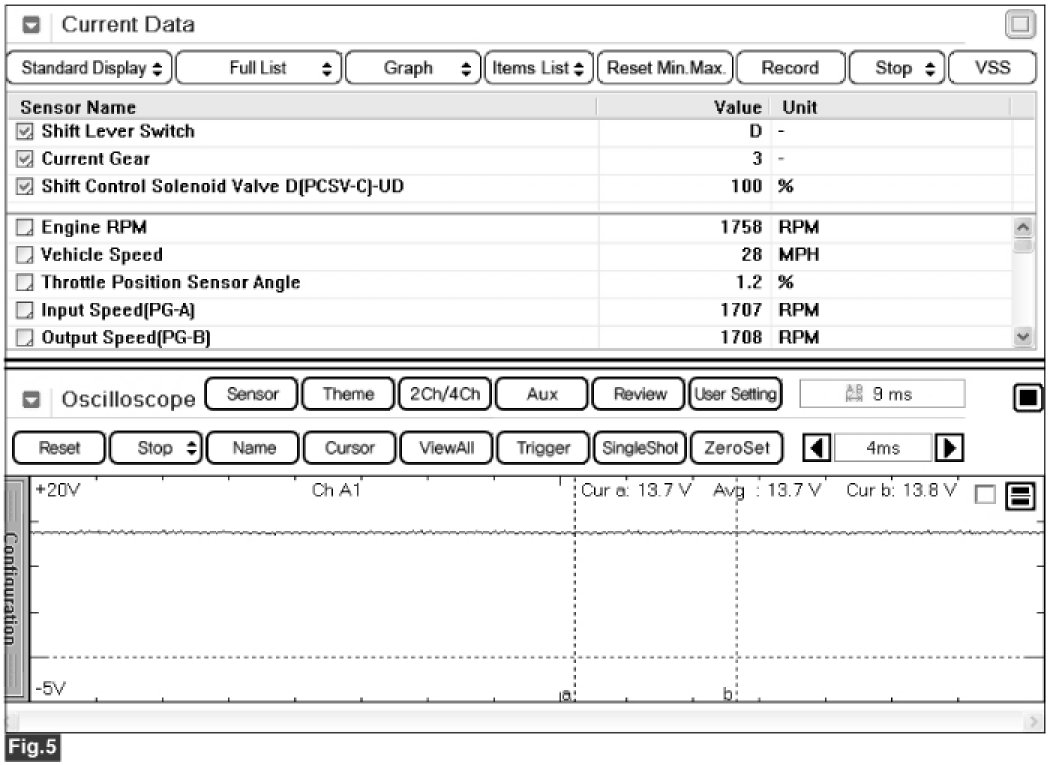

Fig 5) "3rd" gear

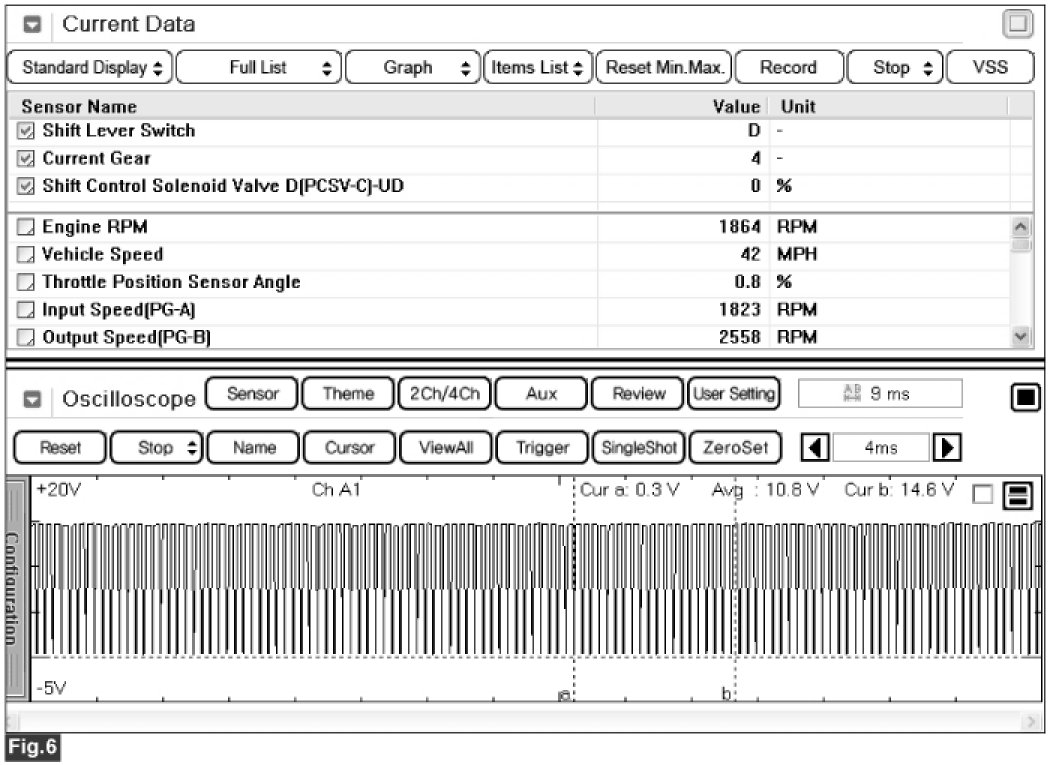

Fig 6) "D Range 4th" gear

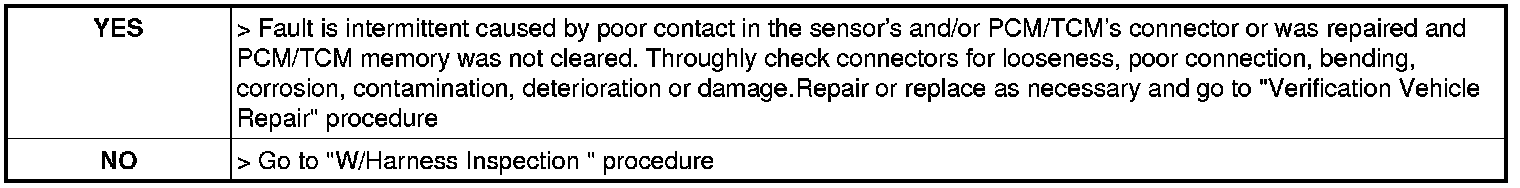

5. Does " PCSV-C (UD) SOLENOID VALVE" follow the referance data?
