Monitor DTC Status

P0750 Shift Control Solenoid Valve \'A\' (Low&Reverse Brake Solenoid)

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "ON/OFF (SCSV-A) SOLENOID VALVE" parameter on the GDS.
4. Shift gear at each position.

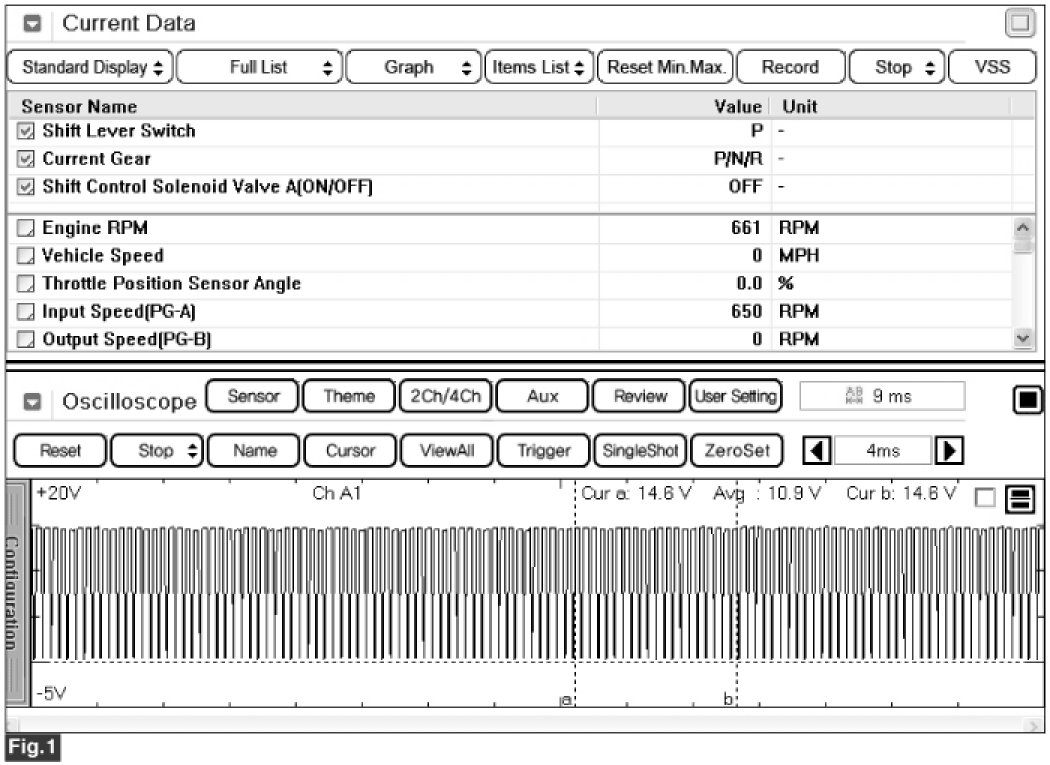

Fig 1) P, N Range

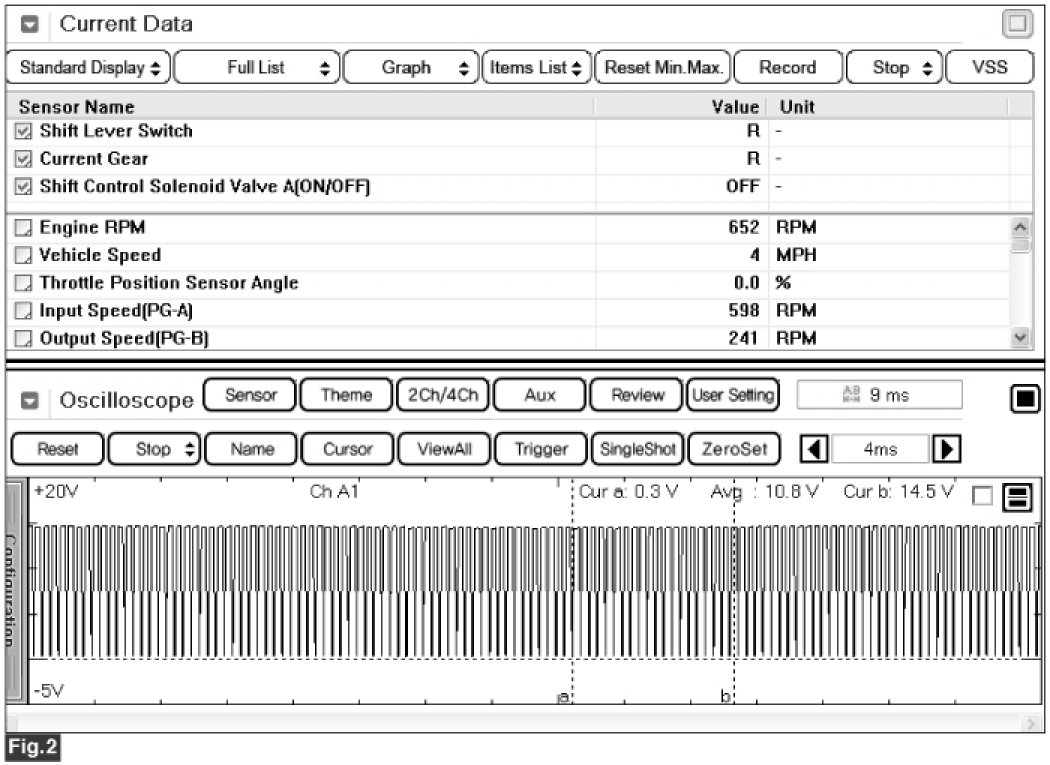

Fig 2) "R" Range

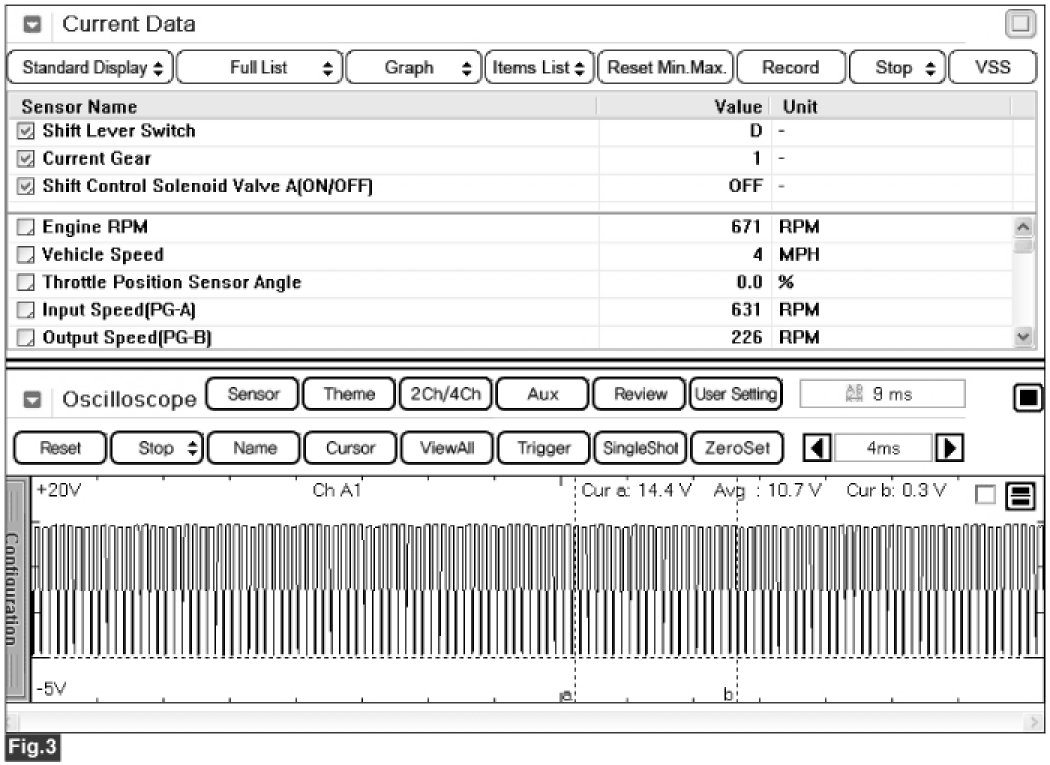

Fig 3) "D"1 Range

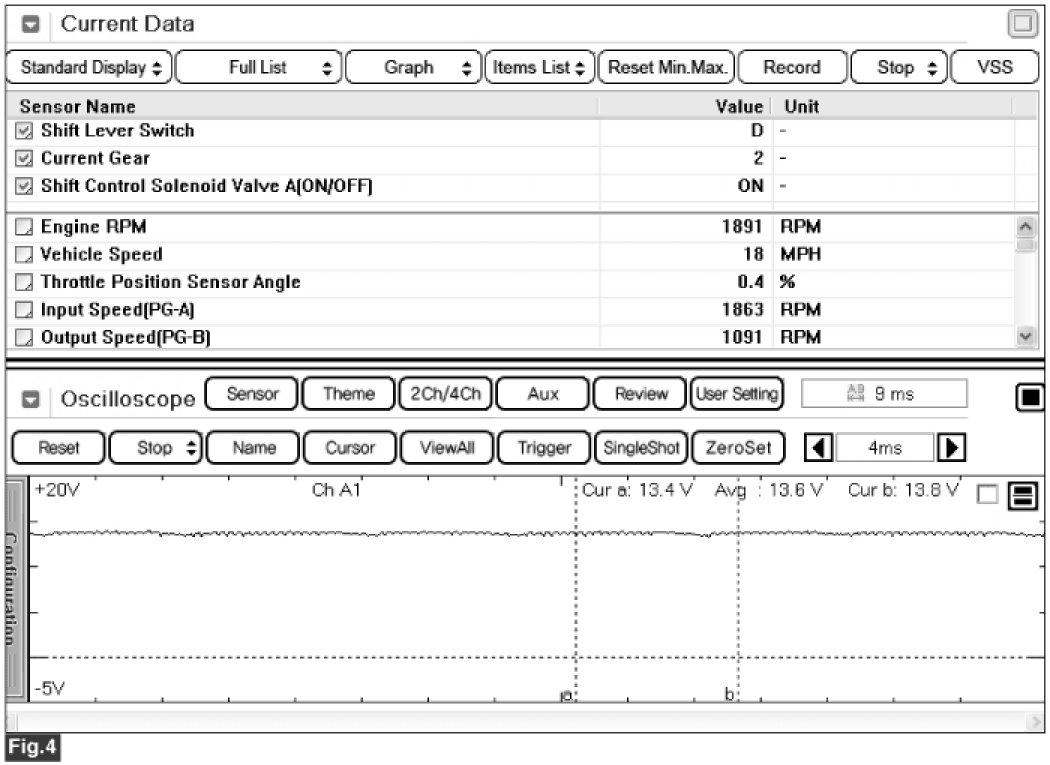

Fig 4) "D"2 Range

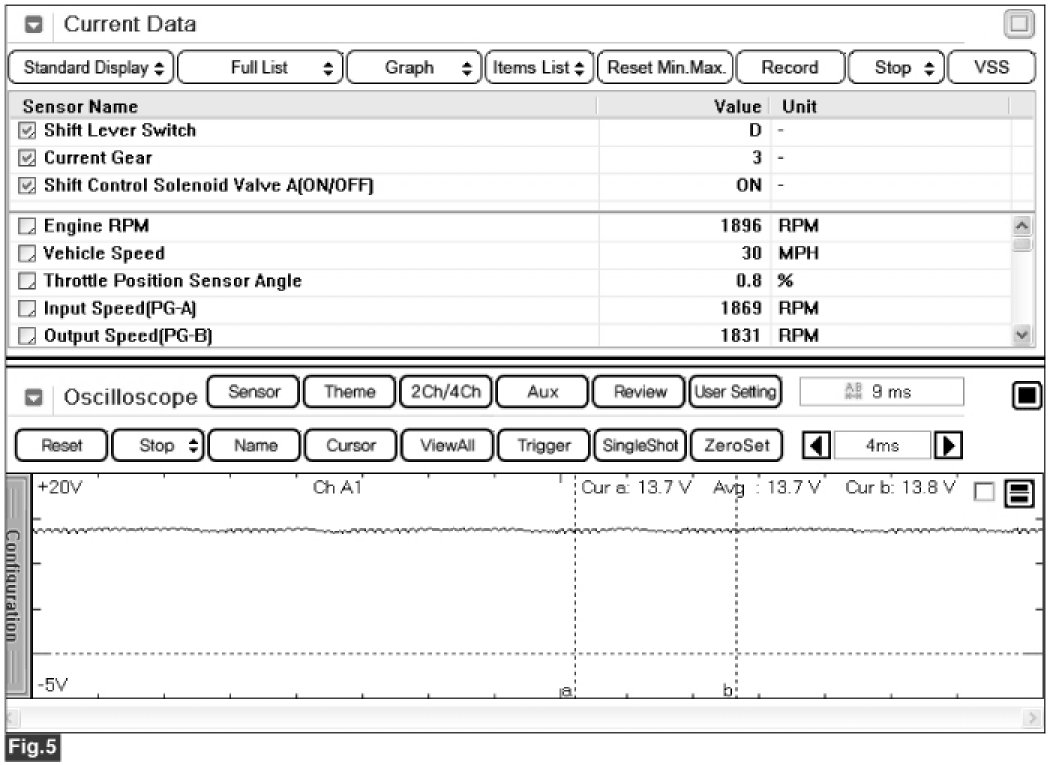

Fig 5) "D"3 Range

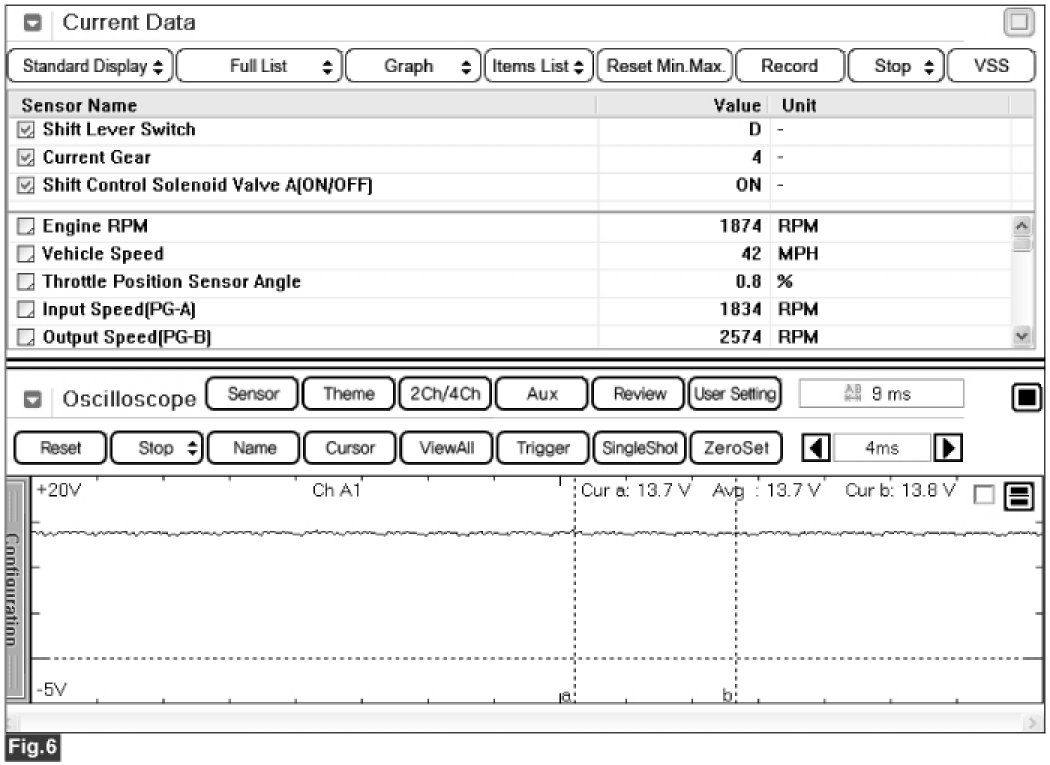

Fig 6) "D"4 Range

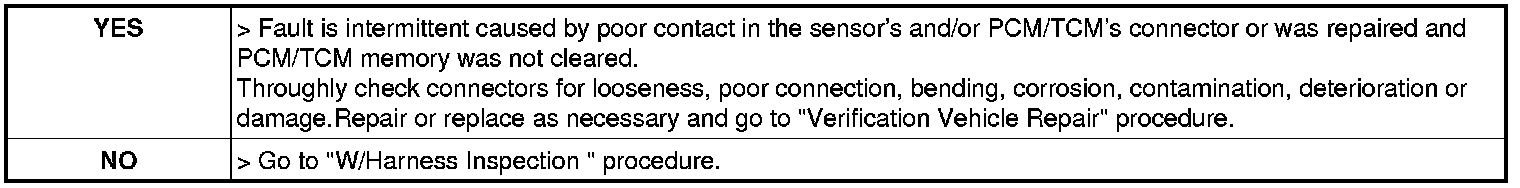

5. Does "ON/OFF SOL VALVE" follow the referance data?
