Component Inspection

P0732 Gear 2 Incorrect Ratio

Inspection/Repair - Component Inspection

Component Inspection




1. Connect Oil pressure gauge to "UD" and "2-4/B" port.
2. Engine "ON".
3. Drive a car with gear position 2 in "SPORTS MODE".
4. Compare it with referance data as below.

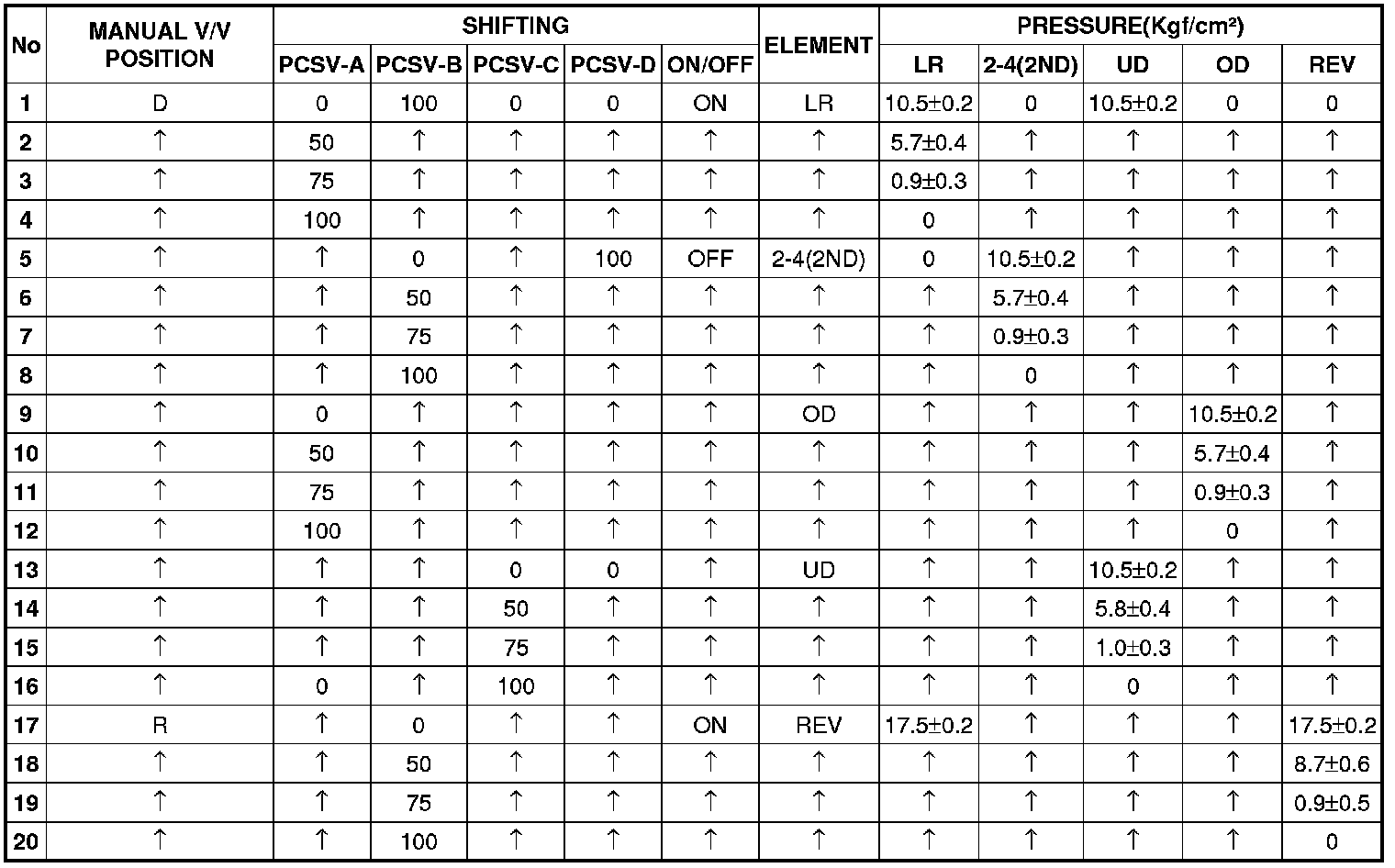

Specification :





** The values are subject to change according to vehicle model or conditions

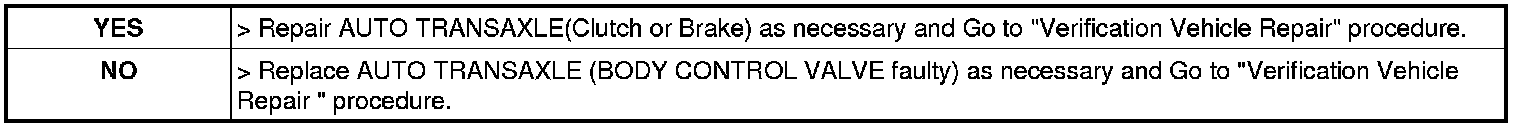

5. Is oil pressure value within specifications?
