Monitor DTC Status

P0712 Transmission Fluid Temperature Sensor \'A\' Circuit Low Input

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "OIL TEMPERATURE SENSOR" parameter on the scantool.

Specification :Increasing Gradually

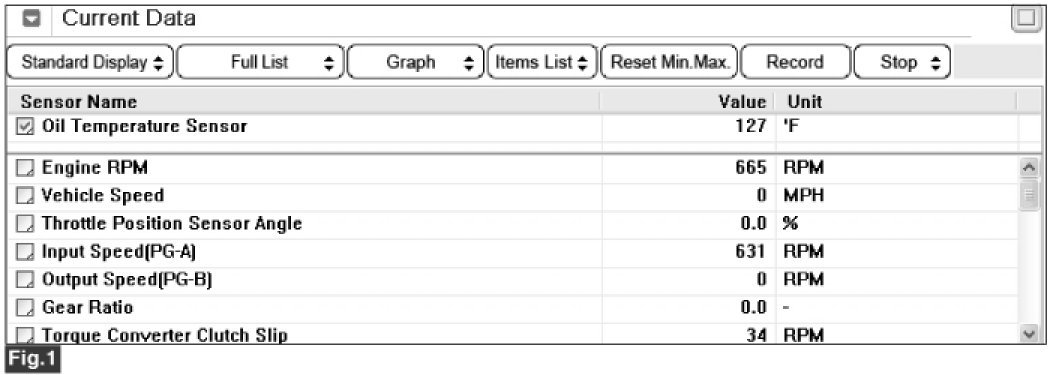

Fig 1) Normal

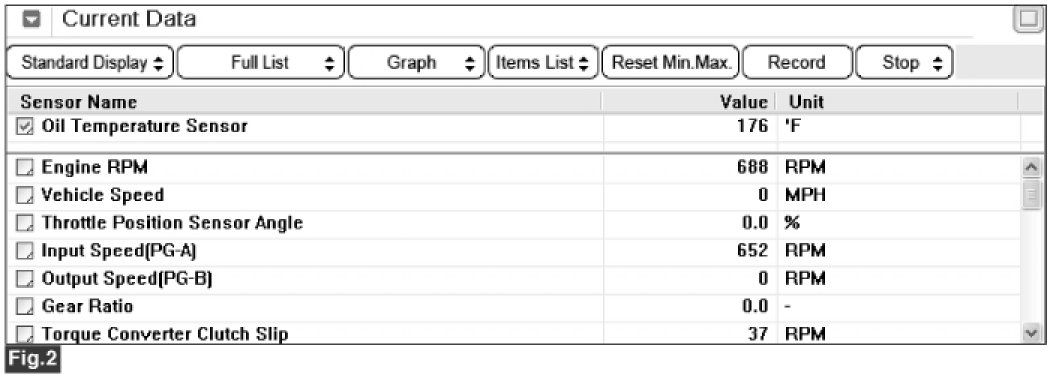

Fig 2) Signal circuit open
4. Does "OIL TEMPERATURE SENSOR " follow the referance data?
