Component Inspection

P0453 Evaporative Emission System-Pressure Sensor High Input

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF".
2. Measure voltage between signal terminal of the sensor harness connector and chassis ground (Do not disconnect FTPS harness connector)

Specification :Voltage increases proportionally with decreasing pressure (Approx. 2.5 V to 4.5 V)

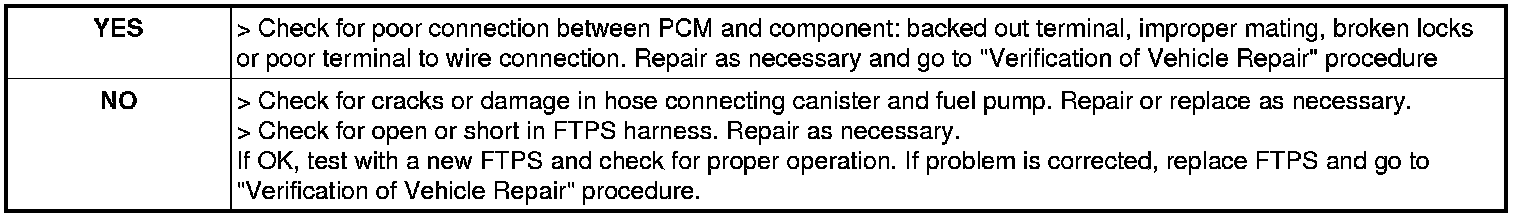

3. Is voltage within the specification?
