Component Inspection





P0448 Evaporative Emission System

Vent Control Circuit Shorted - Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect CCV connector
3. Measure resistance between Power terminal and Control terminal of the CCV connector (Component side)

Specification :Approx. 17±1.5 at 20°C (68°F)

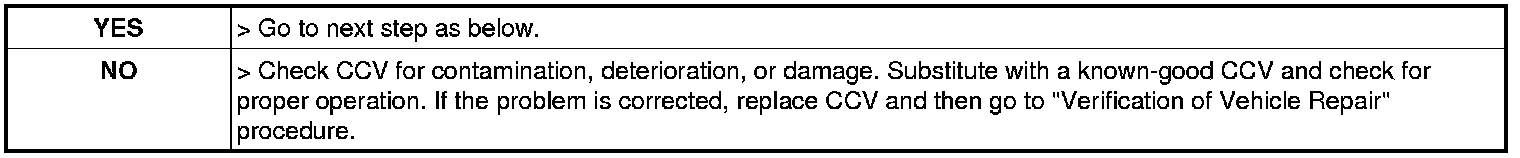

4. Is resistance within the specification?
