Component Inspection





P0265 Cylinder 2 Injector Circuit High

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect injector connector
3. Measure resistance between control terminal and power terminal of the injector connector. (Component side)
Specification :

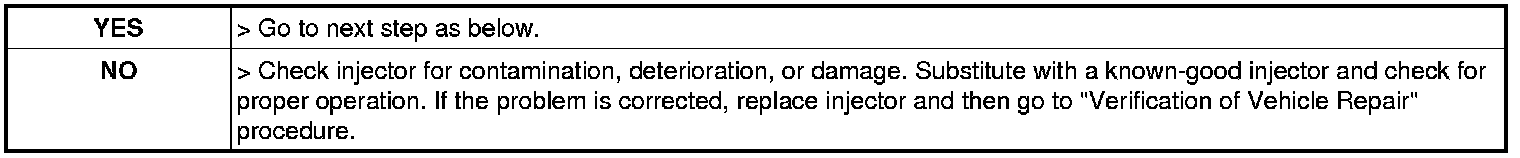

4. Is resistance within the specification?
