General Information

C2412 Motor Short or Open

General Information

Component Location





General Description

EPS uses an electric motor to provide directional control to the driver.
EPS CM always monitors voltage of the motor because current of the motor is controlled by voltage.

DTC Description

Three phase current of the motor is controlled by three phase voltage.
EPS CM sets this code and inhibits EPS control if these voltage values are different from predefined value.

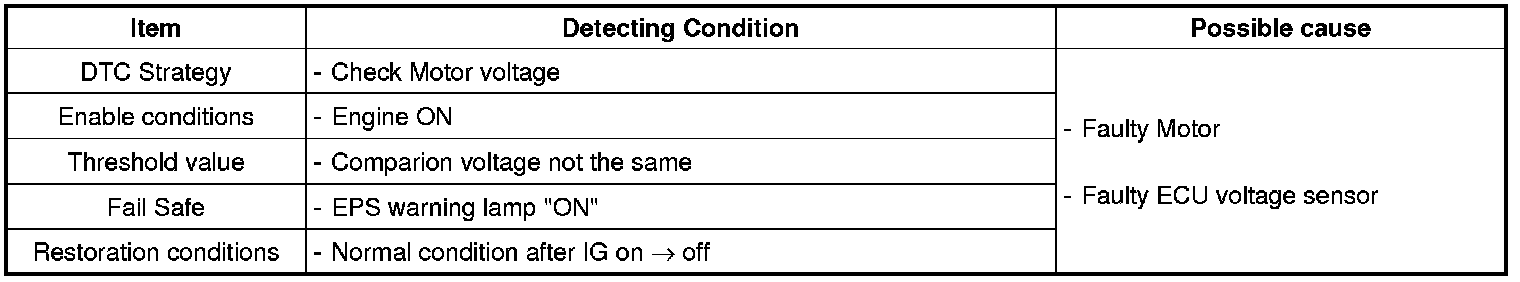

DTC Detecting Condition
