Component Inspection

C1324 Rear Left Sensor Over Temperature

Inspection/Repair - Component Inspection

Component Inspection

[Check wheel / tire]
1. Cool the heat of the Sensor 3's wheel / tire.
2. IG OFF & IG ON. And Wait for 1 minute.
3. Monitor the parameter related to 'Sensor 3 Temperature' on the GDS.

Specification :Below 239°F (115°C)

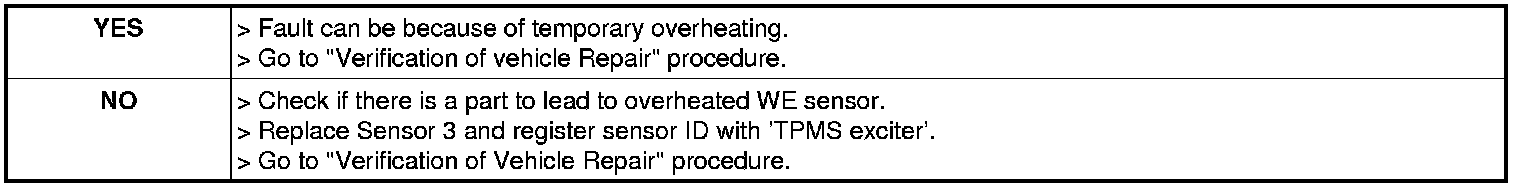

4. Is parameter within specifications?
