Monitor DTC Status

C1313 Front Right Sensor RF Channel Failure

Scantool Diagnostics

Monitor GDS Data

1. Park the vehicle on an even ground.
2. Connect GDS to Data Link Connector (DLC).
3. IG "ON"
4. Monitor the service data related to TPMS sensor on the GDS.

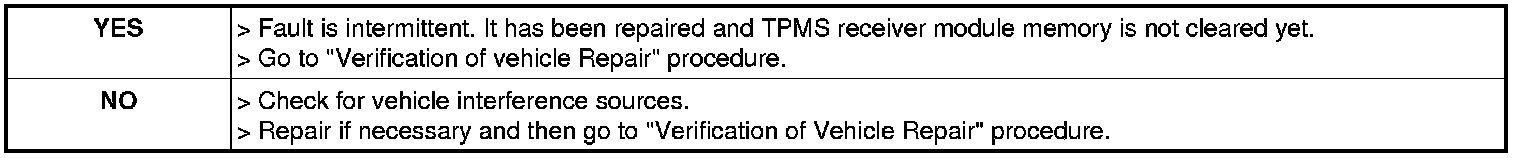

5. Are parameters normal?
