Component Inspection

C1209 Wheel Speed Sensor Rear-RH Open/Short

Inspection/Repair - Component Inspection

Component Inspection

Wheel speed sensor circuit check
1. Lift the vehicle.
2. Ignition "ON" & Engine "OFF".
3. Turn the wheel by hand.
4. Measure waveform between signal terminal of the wheel speed sensor harness connector and chassis ground.

Specification :High : 1.18 - 1.68 V , Low : 0.59 - 0.84 V

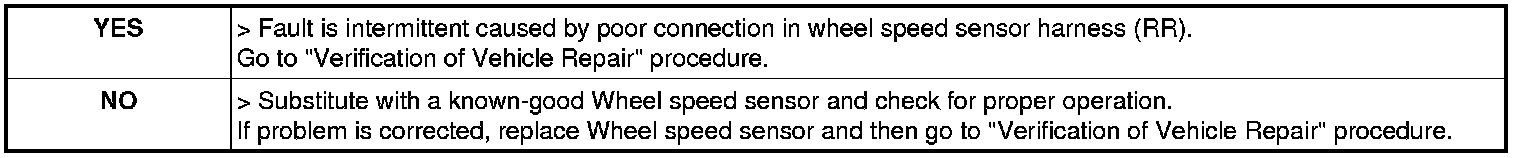

5. Is the measured waveform within specifications?
