Monitor DTC Status

B1395 Firing Loops Interconnection Fault

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "All airbag resistance" parameter on the Scantool.

Specification :1.6 Ohms< Resistance of airbag < 6.0 Ohms

Reference :In a case of an open in the airbag circuit : FAIL
In a case of a short to battery in the airbag circuit: FAIL
In a case of a short to ground in the airbag circuit : FAIL




Fig.1) Normal Data

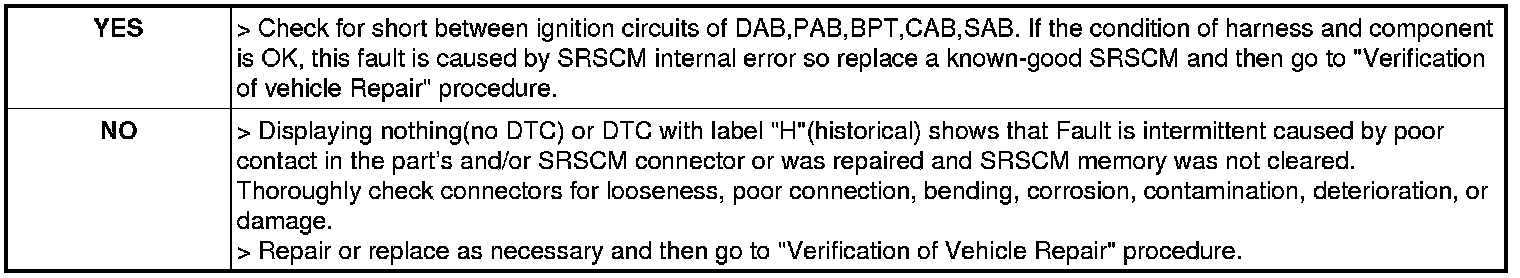

4. Is parameter displayed within specifications?
