Home >> Kia >> 2010 >> Soul L4-1.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID

Automatic Transmission/Transaxle: Application and ID

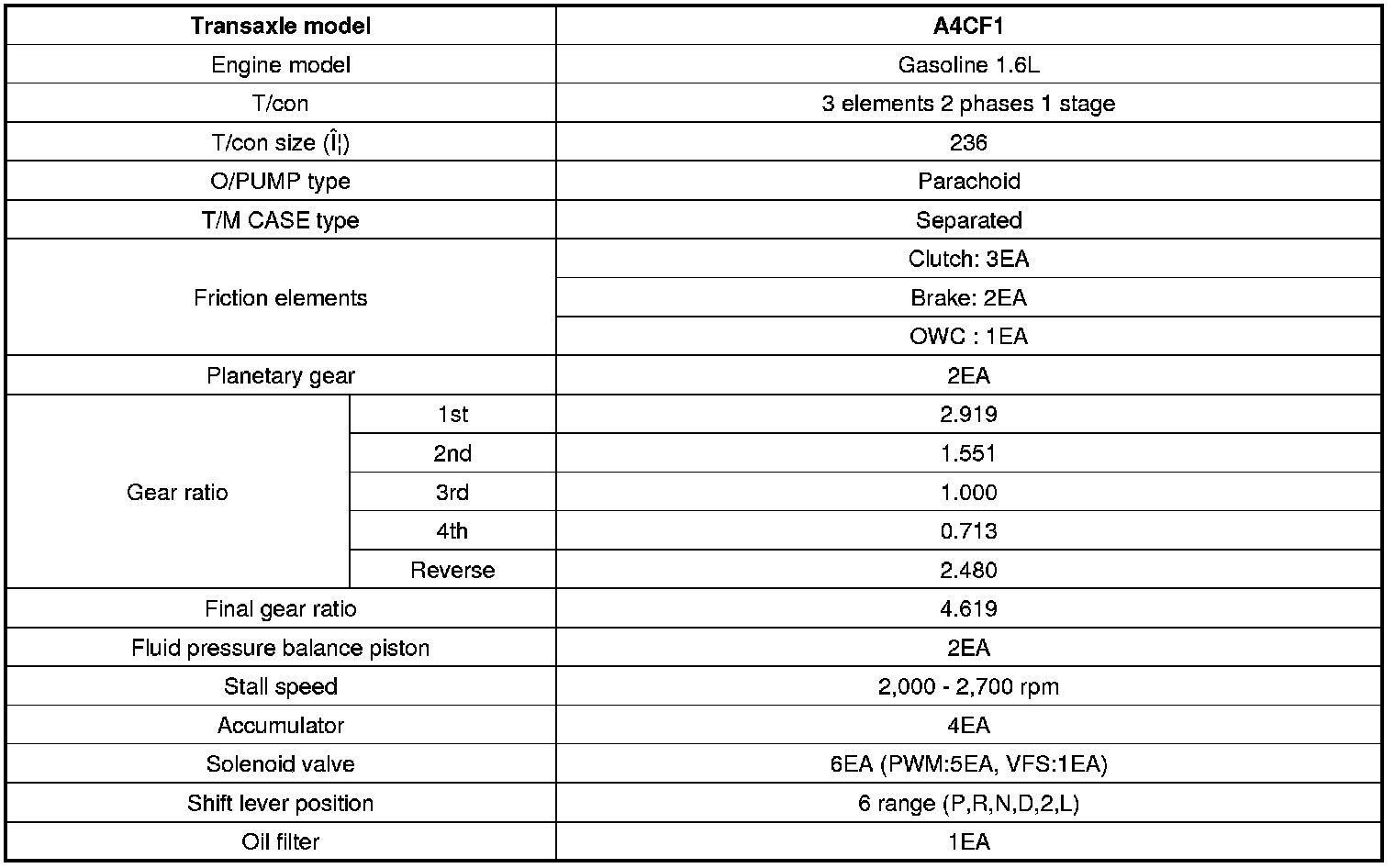

Specifications





- PWM : Pulse Width Modulation
- VFS : Variable Force Solenoid
