Manifold Pressure/Vacuum Sensor: Testing and Inspection

Inspection

1. Connect a scan tool on Data Link Connector (DLC).

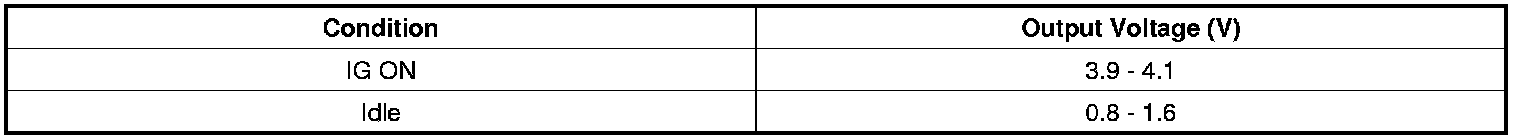

2. Check MAPS output voltage at idle and IG ON.
