Home >> Kia >> 2010 >> Soul L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection

Courtesy Lamp: Testing and Inspection





Inspection

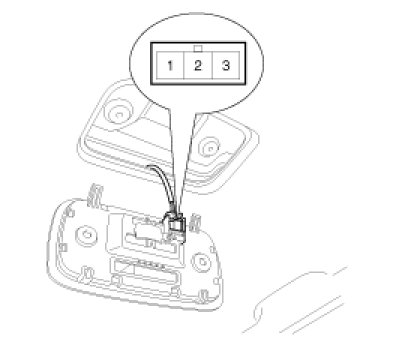

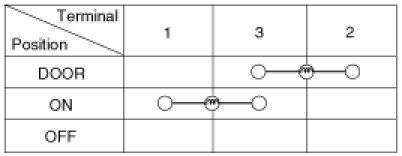

1. Remove the room lamp assembly then check for continuity between terminals.
